Technical Specifications
| Item | Specification |
|---|---|

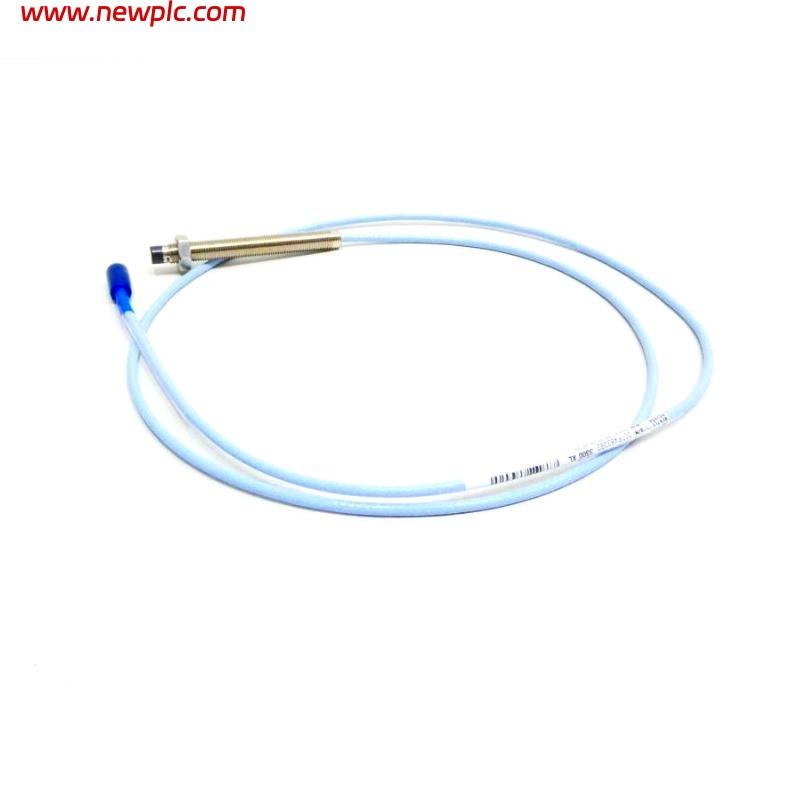

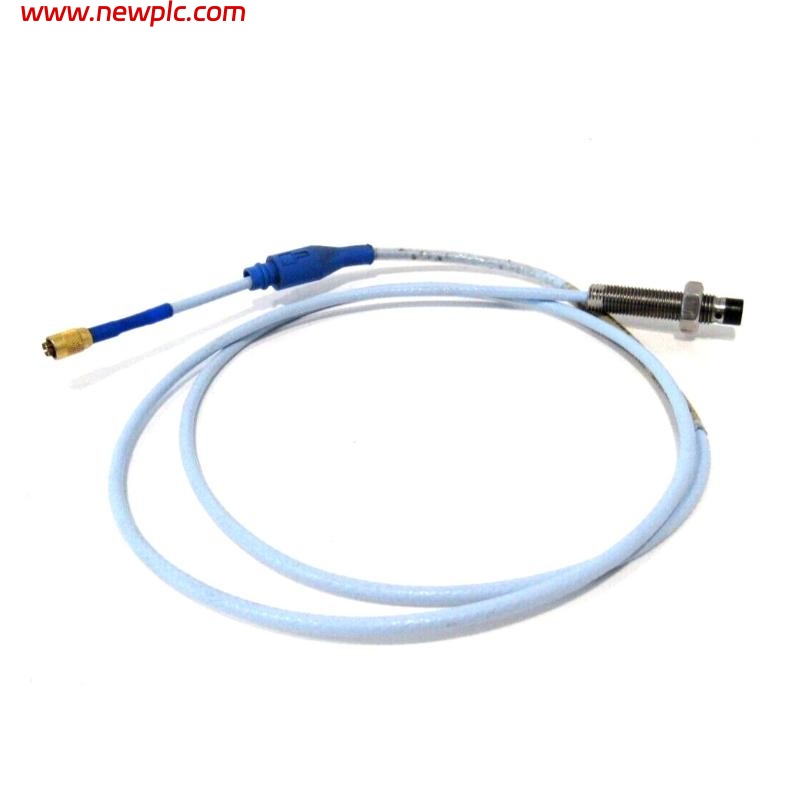

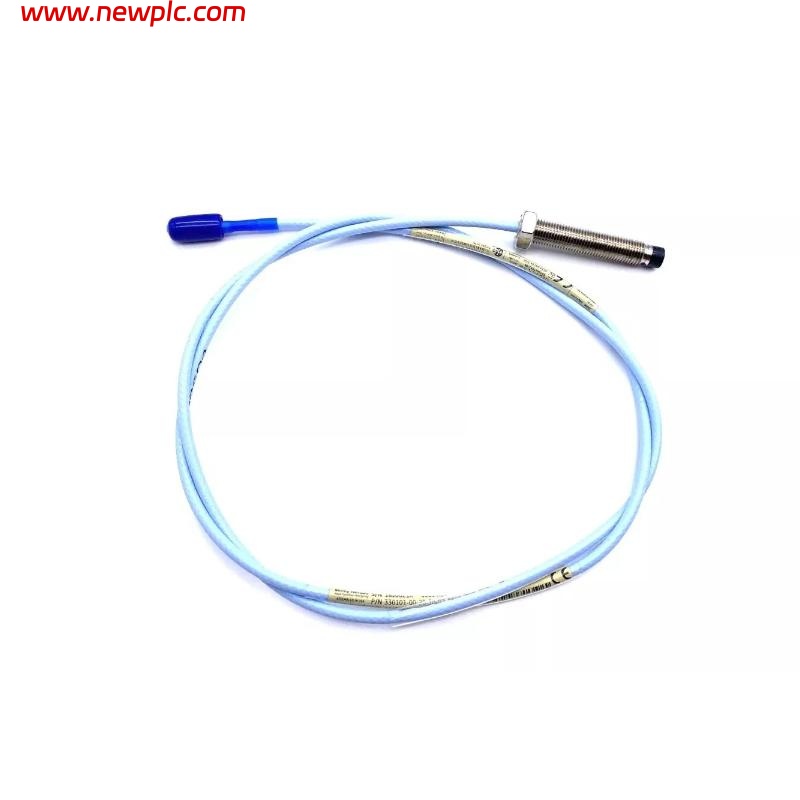

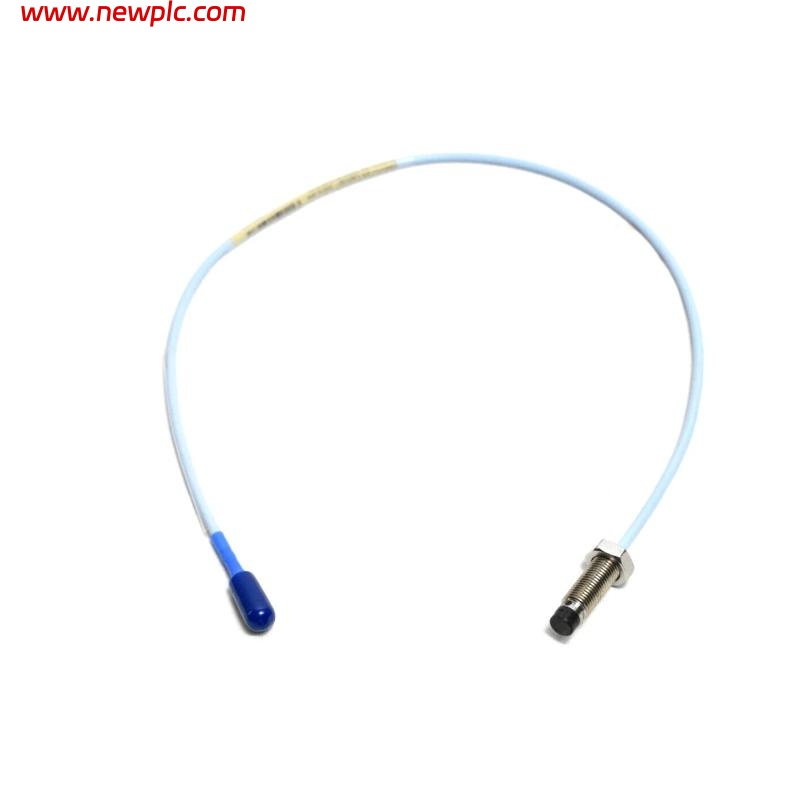

| Model | Bently Nevada 330101-30-60-90-90-02-RU |
| Type | 3300 XL Proximity Probe |
| Measurement Principle | Eddy-current displacement measurement |
| Measurement Range | 0–2 mm (typical) |
| Sensitivity | 7.87 mV/µm (typical) |
| Frequency Response | DC to 10 kHz |
| Housing Material | Stainless steel |
| Protection Rating | IP67 |
| Mounting Method | Threaded installation |
| Application Environment | Oil-resistant, dust-resistant, high-vibration industrial areas |
| Applications | Shaft vibration, displacement, and position monitoring |
| Dimensions | Probe tip 8 mm；system length 60 m；special configuration “90-90-02-RU” |
| Weight | Approx. 0.36 kg |
FAQ
FAQ
Q1: What is the purpose of the 330101-30-60-90-90-02-RU probe?
It monitors shaft vibration, displacement, and position for rotating machinery.
Q2: What does “30-60-90-90-02-RU” indicate in the model number?
“30” identifies the probe series, “60” is the system length, “90-90” defines a special configuration, “02” specifies connector type, and “RU” denotes a Russian-standard configuration.
Q3: Which proximitor sensor is compatible with this probe?
It is designed for use with the Bently Nevada 3300 XL Proximitor Sensor.
Q4: Can this probe operate in harsh industrial environments?
Yes, the stainless-steel housing and IP67 rating make it resistant to oil, dust, and vibration.
Q5: What type of output does this probe provide?
Voltage output proportional to shaft vibration and displacement.
Q6: What is the operating temperature range?
–35 °C to +177 °C.
Q7: Can it be used for high-speed rotating machinery?
Yes, its bandwidth supports high-speed equipment monitoring.
Q8: What are the physical dimensions and weight of this probe?
Probe tip 8 mm；system length 60 m；weight approx. 0.36 kg.
