Technical Specifications
| Parameter | Description |
|---|---|

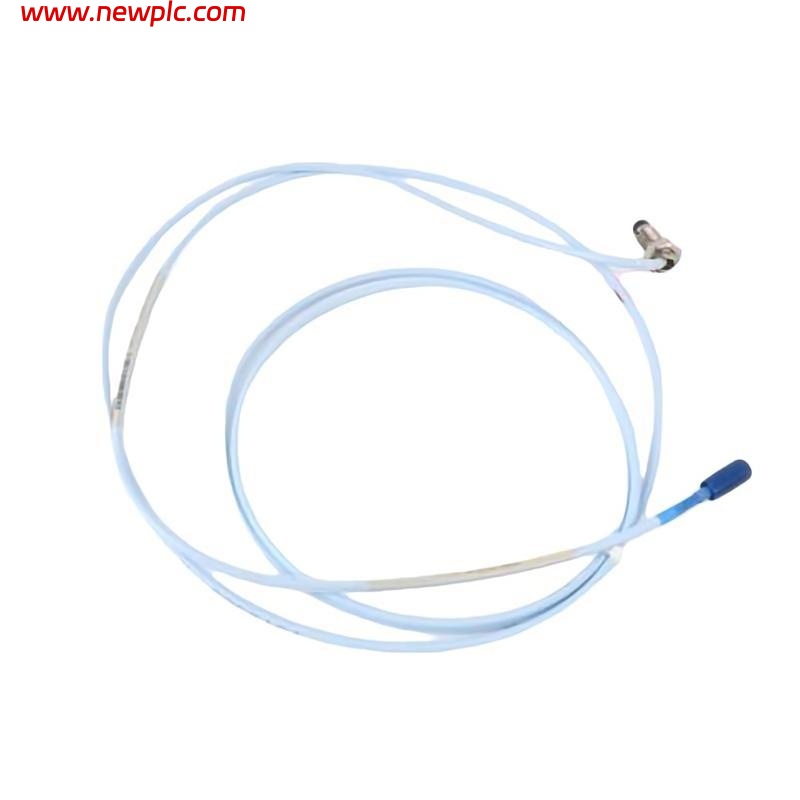

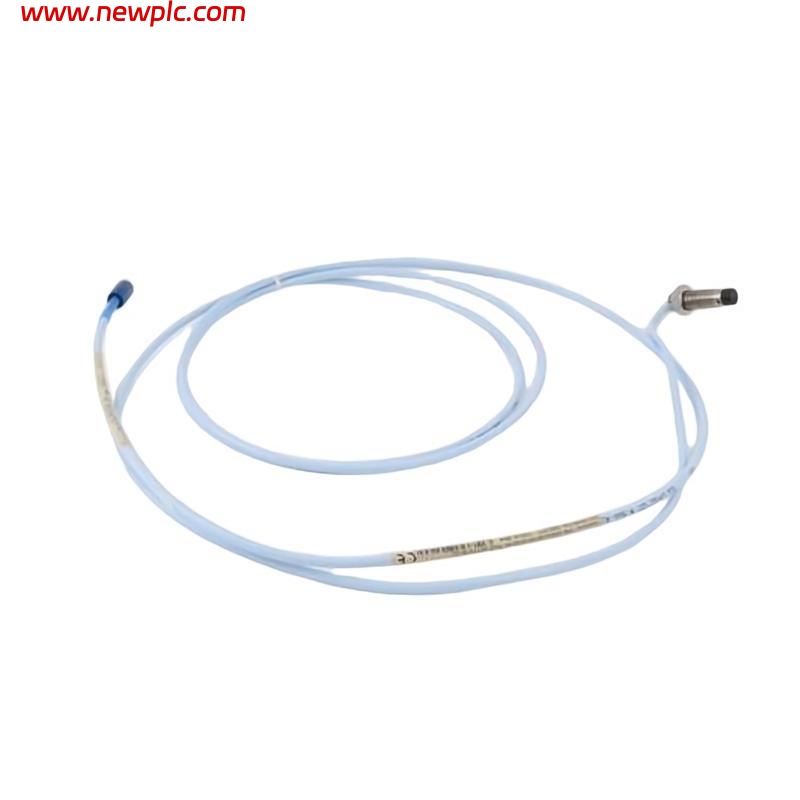

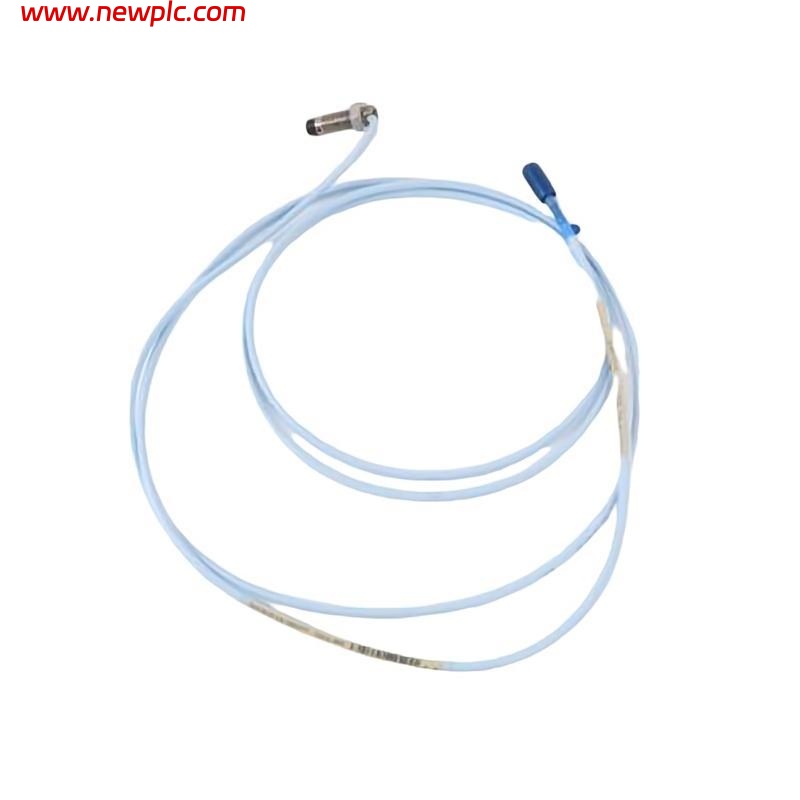

| Product Model | Bently Nevada 330101-XX-XX-20-02-CN (Cable Assy 147773-00-12) |
| Series | 3300 XL 8 mm Proximity Probes |
| Probe Tip Diameter | 8 mm |
| Probe Type | Non-contact eddy-current proximity probe |
| Sensing Principle | Eddy current displacement measurement |
| Measurement Range | ±1.0 mm linear range (typical for 8 mm system) |
| Linear Range | 2 mm (approx.) |
| Sensitivity | 7.87 V/mm (nominal) |
| System Compatibility | Works with 3300 XL Proximitor and matching extension cables |
| Target Material | AISI 4140 steel (standard) |
| Operating Temperature | −35°C to +177°C (probe) |
| Cable Type | Armored or non-armored depending on option codes |
| Cable Connector | Standard BNC or coaxial industrial connector (depending on suffix) |
| Shielding | Double-shielded low-noise cable |
| Typical Applications | Shaft vibration, position, thrust, and differential expansion measurements |
| Total Length | 2.0 m |
| Weight | 0.646 kg |
FAQ
FAQ
Q1: What type of measurement does the 330101 proximity probe support?
A1: It performs non-contact displacement and vibration measurement using eddy-current sensing.
Q2: Is this probe part of a complete proximity transducer system?
A2: Yes, it is used together with a 3300 XL extension cable and a matching 3300 XL Proximitor.
Q3: What is the standard target material for calibration?
A3: The probe is calibrated for AISI 4140 steel, which is the industry standard.
Q4: Can this probe operate in high-temperature environments?
A4: Yes, the probe is designed to handle temperatures up to 177°C.
Q5: Is the cable shielded to reduce electrical noise?
A5: The cable uses a double-shielded low-noise design to minimize interference.
Q6: What applications commonly use this probe?
A6: It is widely used for shaft vibration, shaft position, thrust bearing monitoring, and differential expansion measurement.
Q7: Does the probe require a specific Proximitor?
A7: Yes, it must be paired with a 3300 XL Proximitor matched by part number to ensure proper sensitivity and system linearity.
Q8: Can the probe length be customized through the XX-XX option codes?
A8: Yes, the option codes define probe length, cable length, connector style, and other configuration details.
