Technical Specifications Table
| Item | Specification |
|---|---|
| Model Number | 330102-00-60-05-02-05 |

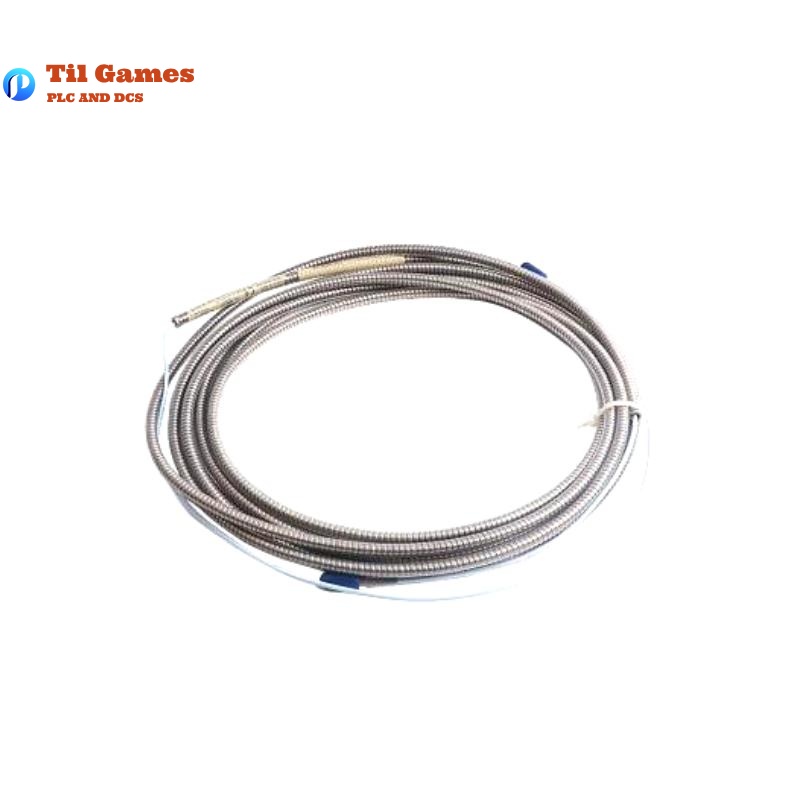

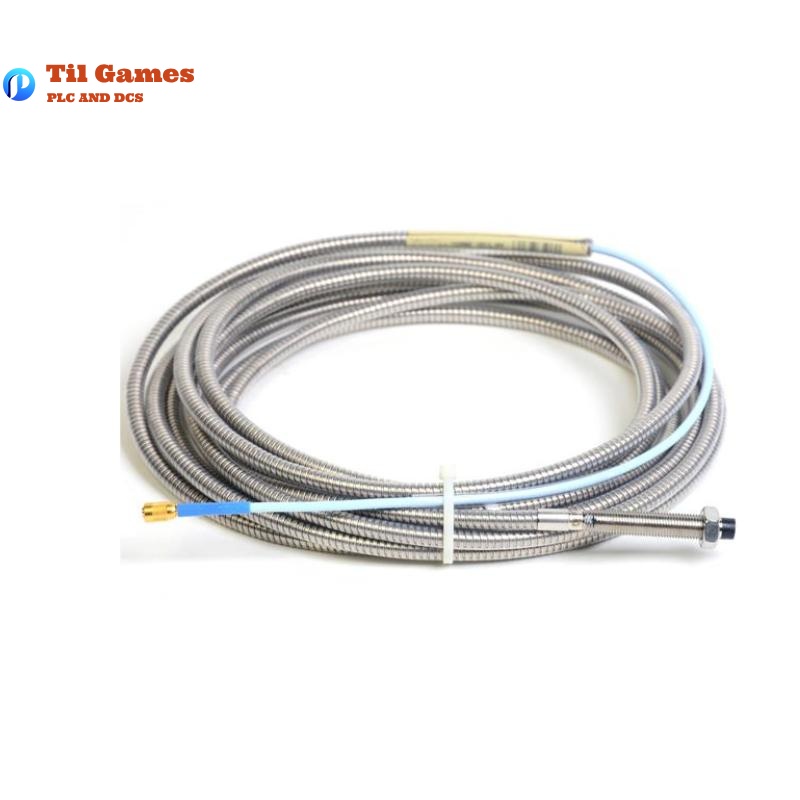

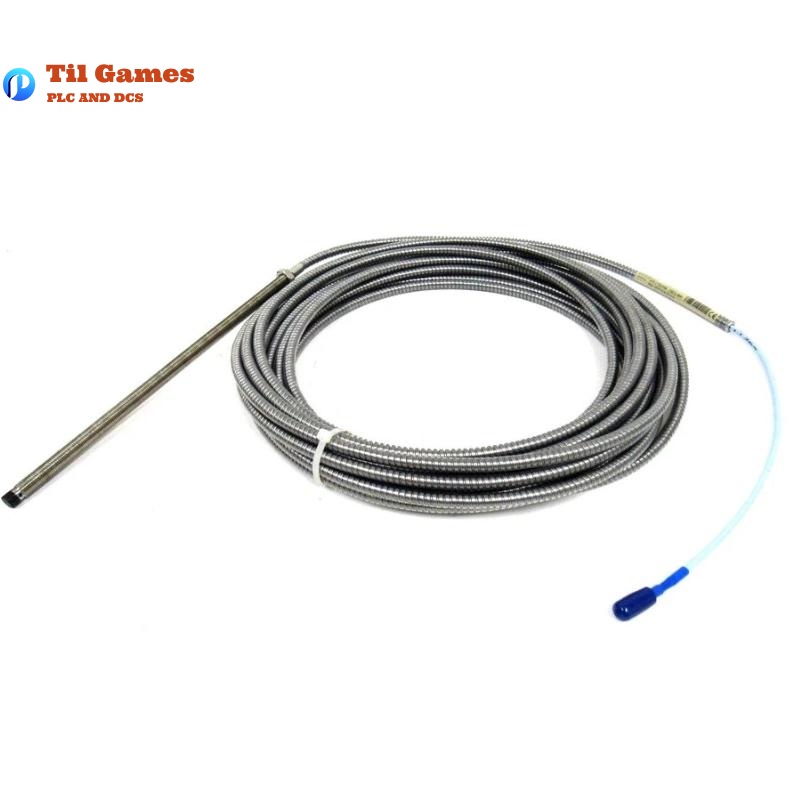

| Probe Type | 3300 XL 8 mm Proximity Probe (with armor) |
| Probe Material | PPS tip housing / 303 or 304 stainless steel body |
| Cable Type | 75Ω triaxial cable, FEP insulated (standard) |
| Connector Type | ClickLoc gold-plated coaxial connector |
| Total Length | 0.5 meter |
| Weight | 0.161 kg (including probe and cable) |
| Cable Pull Strength | 330 N (probe housing to lead); 270 N (lead to extension cable) |
| Minimum Cable Bend Radius | 25.4 mm |
| Recommended Gap | 1.27 mm (-9 VDC) |
| Linear Range | 0.25 mm to 2.3 mm |
| Incremental Scale Factor | 7.87 V/mm ±5% (standard system at 0°C to +45°C) |
| Accuracy (DSL) | ±0.025 mm (standard 0.5/1 meter system) |
| Temperature (Probe) | -52°C to +177°C (standard); up to +218°C for ETR probe tip |
| Temperature (Cable) | -52°C to +177°C (standard); up to +260°C for ETR cable |
| Minimum Target Size | ≥ 15.2 mm flat target |
| Recommended Shaft Diameter | Min: 50.8 mm; Recommended: 76.2 mm |
| Humidity Resistance | ≤3% change in ASF under 93% RH over 56 days |
| EMI/RFI Immunity | CE-compliant; does not require shielded conduit |
| Hazardous Certifications | CSA, ATEX, IECEx (if “05” approval option is selected) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What measurements can this probe perform?
A1: It measures both static (position) and dynamic (vibration) values for rotating machinery.
Q2: Is it compatible with older 3300 systems?
A2: Yes, it’s backward compatible with 3300 5 mm and 8 mm components; however, performance will match the least capable component.
Q3: Does it comply with API 670?
A3: Yes, the standard 5-meter system complies fully with API 670 mechanical and performance standards.
Q4: Are special tools required for installation?
A4: No, ClickLoc connectors are designed for tool-free, finger-tight installation with an audible click.
Q5: Can the probe handle high-temperature environments?
A5: Yes, with the ETR version—probe tip rated to 218°C and cable up to 260°C.
Q6: What field wiring is recommended?
A6: Use 0.2 to 1.5 mm² (16 to 24 AWG) shielded triad cable; total run should not exceed 305 meters.
Q7: Why is the armored cable version used?
A7: Armoring provides mechanical protection in harsh industrial environments.
Q8: Does the probe require on-site calibration?
A8: No, the system is factory-calibrated, and all components are fully interchangeable.
