Technical Specifications
| Parameter | Description |
|---|---|

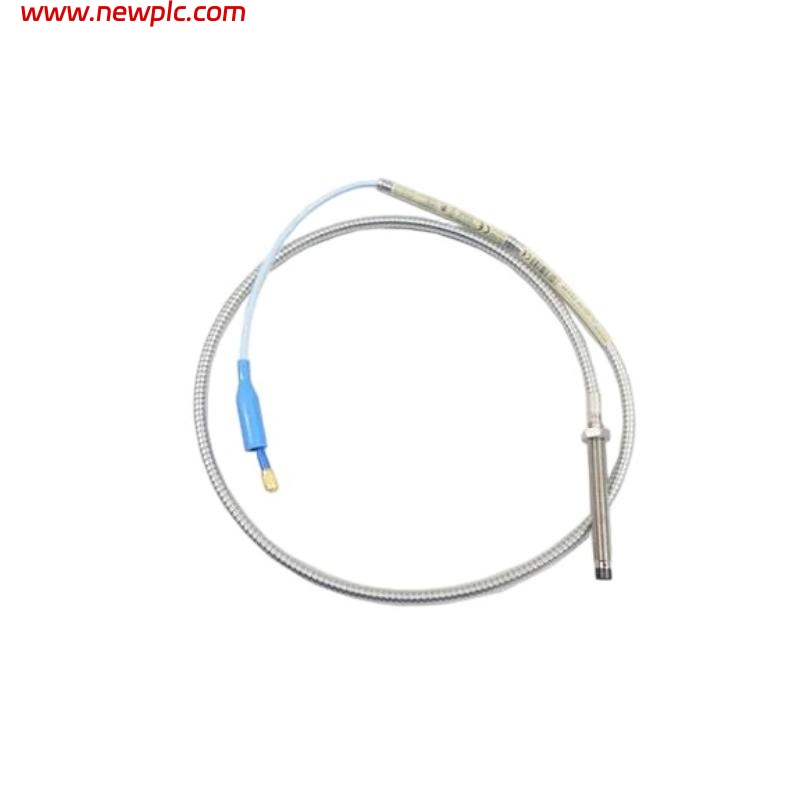

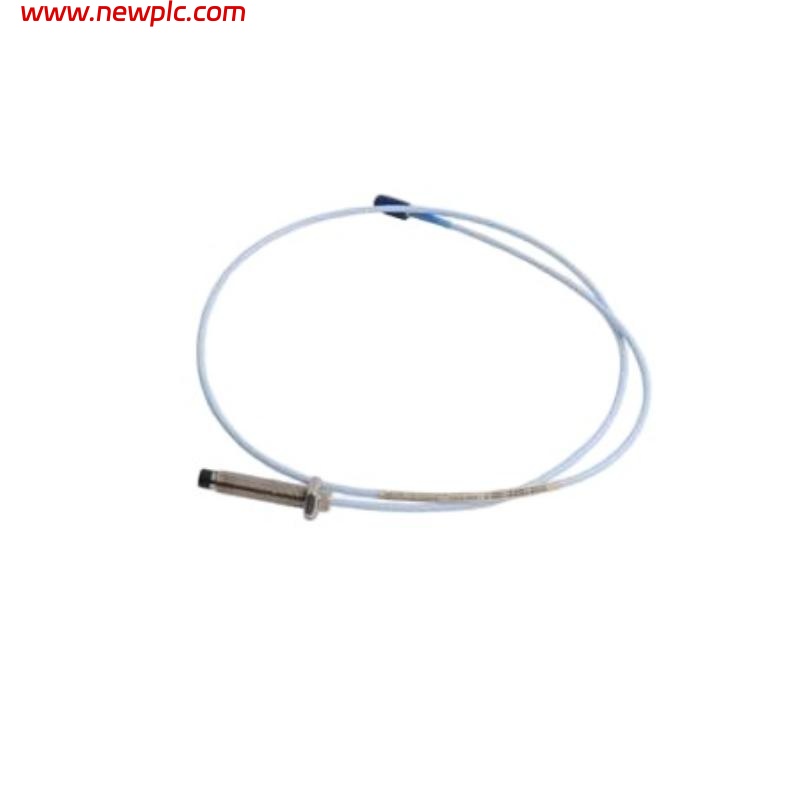

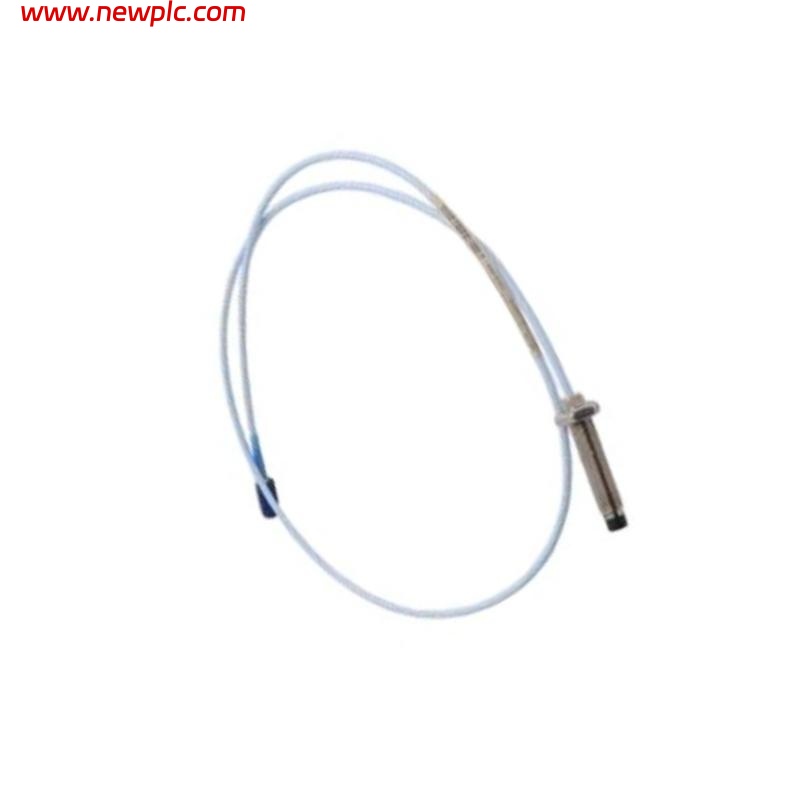

| Product Name | 3300 XL 8 mm Proximity Probe |
| Model | 330102-40-62-05-02-05 |
| Probe Type | Eddy current proximity probe |
| Probe Diameter | 8 mm |
| Probe Material | Stainless steel housing |
| Measurement Range | 0 to 2.0 mm |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Linearity Error | ±1% of full scale |
| Frequency Range | 0 to 10 kHz |
| Output Signal | Analog voltage output |
| Operating Temperature | -35℃ to +175℃ |
| Mounting Thread | M10 × 1.0 |
| Cable Type | Coaxial shielded cable |
| Cable Connector | Compatible with 3300 XL extension cable |
| Adapter Module | Works with 3300 XL Proximitor system |
| Protection Rating | IP67 |
| Dimensions | Total Length : 0.5 meter |
| Weight | 0.161 kg |
FAQ
FAQ
Q1: What is the primary application of this probe?
A1: It is mainly used for monitoring shaft vibration, displacement, and position changes in rotating machinery.
Q2: What are the advantages of the 8 mm probe diameter?
A2: The 8 mm design allows installation in compact spaces while maintaining high accuracy.
Q3: Is this model compatible with the standard 3300 XL system?
A3: Yes, it is fully compatible with Bently Nevada 3300 XL extension cables and Proximitor modules.
Q4: What is the operating temperature range?
A4: It can operate reliably between -35℃ and +175℃.
Q5: What is the probe sensitivity?
A5: The sensitivity is 7.87 V/mm (200 mV/mil).
Q6: What level of protection does it offer?
A6: It has an IP67 protection rating for dust and water resistance in harsh industrial environments.
Q7: What should be noted during installation?
A7: The probe should be mounted perpendicular to the target surface and securely locked using the standard nut.
Q8: Can it be used with other Bently Nevada Proximitor modules?
A8: Yes, it is fully interchangeable with other 3300 XL Proximitor and extension cable assemblies.
