Technical Specifications
| Parameter | Specification |
|---|---|

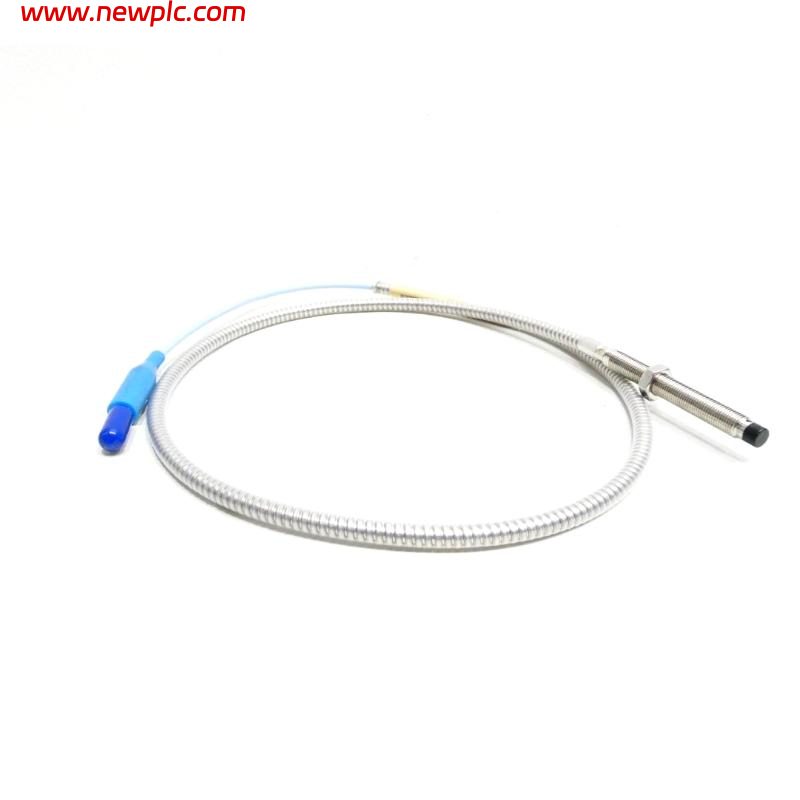

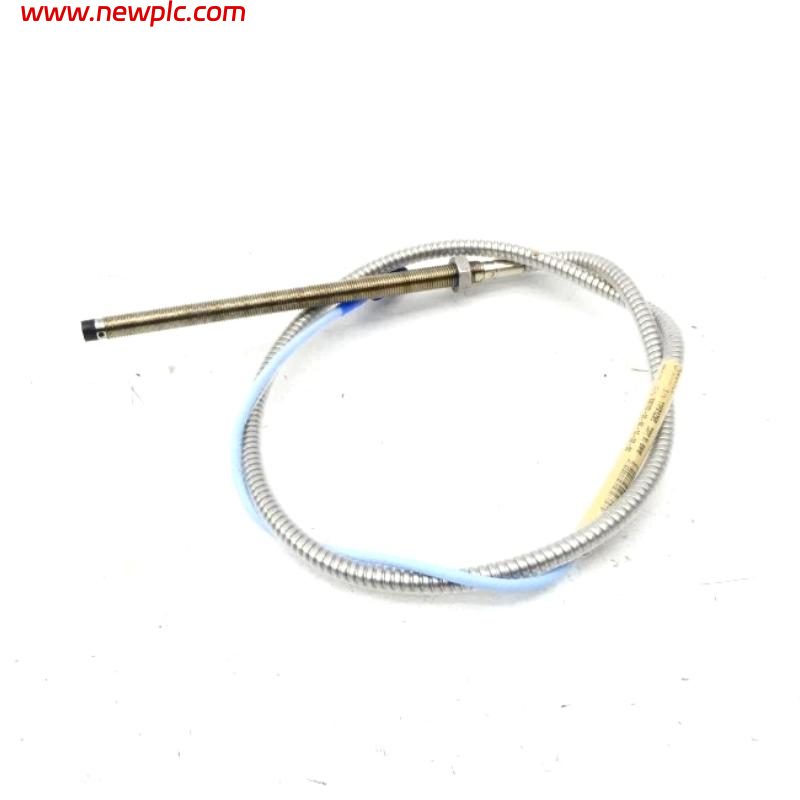

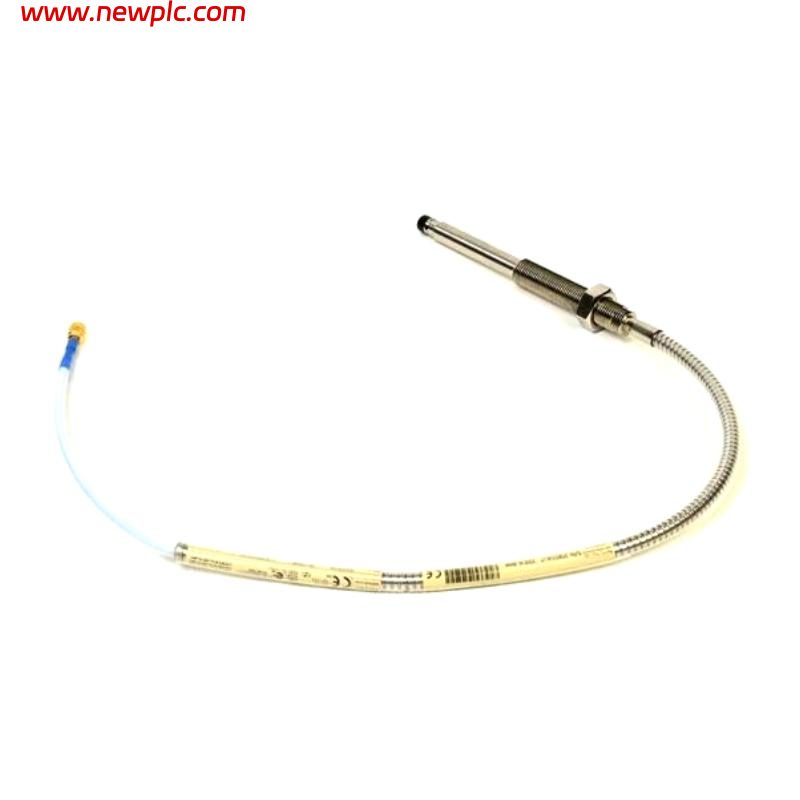

| Product Name | Bently Nevada 330102-XX-XX-05-02-05 with Mounting Adapter 159299-013-059 |
| Product ID | 330102-XX-XX-05-02-05 / 159299-013-059 |
| Manufacturer | Bently Nevada |
| Product Type | 3300 XL 8 mm Proximity Probe Assembly with Mounting Adapter |
| Series | 3300 XL Proximitor® Transducer System |
| Function | Non-contact measurement of shaft vibration, position, eccentricity, and displacement |
| Measurement Technology | Eddy Current Proximity Sensing |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF-2A |
| Case Length | XX (user-specified configuration) |
| Total System Length | 0.5 m (Option 05) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector (Option 02) |
| Cable Option | Standard Integral Cable (Option 05) |
| Sensitivity | 7.87 V/mm (200 mV/mil) Typical |
| Linear Range | Approx. 2.0 mm (80 mils) |
| Frequency Response | 0 Hz to 10 kHz |
| Probe Material | Stainless Steel Housing |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Operating Temperature | −51°C to +177°C |
| System Compatibility | Bently Nevada 3300 XL 8 mm Proximitor® Sensor Systems |
| Accessory Included | Mounting Adapter 159299-013-059 |
| Adapter Material | Stainless Steel |
| Application | Turbines, Compressors, Pumps, Motors, Generators, Gearboxes |
| Dimensions | Probe Ø8 mm × Configured Case Length (XX Option) × Approx. 500–550 mm Overall Assembly Length; Mounting Adapter Approx. 59 mm Length × 13 mm Diameter |
| Weight | Probe Assembly Approx. 0.20–0.30 kg; Mounting Adapter Approx. 0.05 kg; Combined Weight Approx. 0.25–0.35 kg |
| Country of Origin | United States |
FAQ
FAQ
Q1: What is the 330102-XX-XX-05-02-05 used for?
It is a reverse-mount style 3300 XL 8 mm proximity probe assembly used for shaft vibration and position monitoring in rotating equipment.
Q2: What does the “XX-XX” in the part number mean?
These positions represent configurable probe case length and agency approval options that must be specified when ordering.
Q3: What is the purpose of mounting adapter 159299-013-059?
It provides a secure mechanical interface for installing the probe in machine housings or custom mounting brackets.
Q4: What is the total system length?
This configuration uses a 0.5 m system length (Option 05).
Q5: What are the dimensions and weight?
The probe diameter is 8 mm, overall assembly length is approximately 500–550 mm, the adapter is approximately 59 mm long, and the combined weight is approximately 0.25–0.35 kg.
Q6: Can this probe be used with any Proximitor® sensor?
No. It must be matched with a compatible Bently Nevada 3300 XL 8 mm Proximitor® sensor system.
Q7: Is the mounting adapter supplied separately?
The 159299-013-059 adapter is typically specified as an associated installation accessory and should be verified against the application drawing.
Q8: What should be confirmed before ordering?
Verify the exact case-length option, approval option, mounting adapter requirements, system length, and compatibility with the existing 3300 XL monitoring system.
