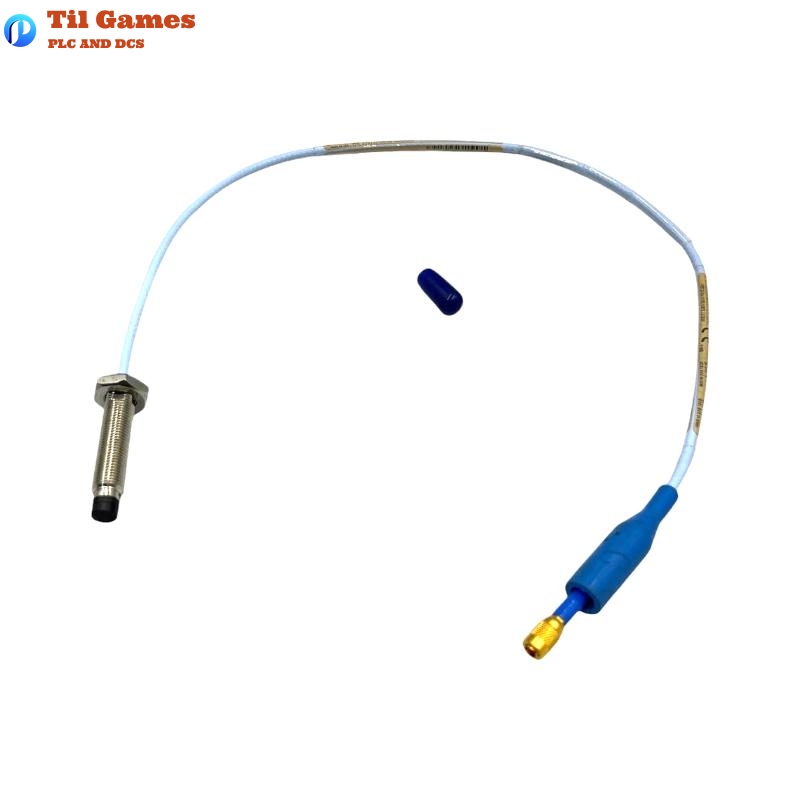

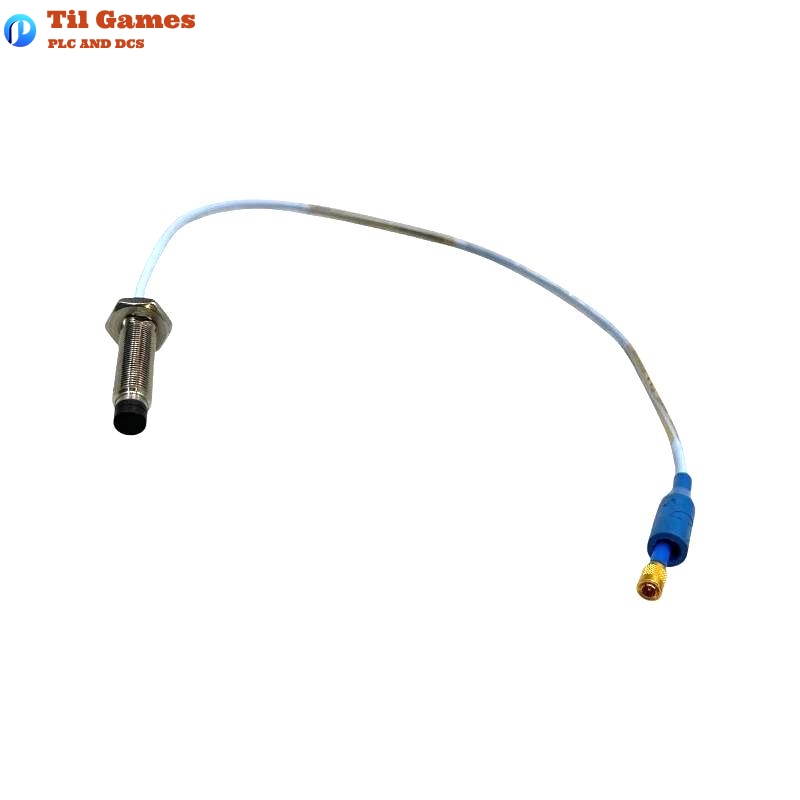

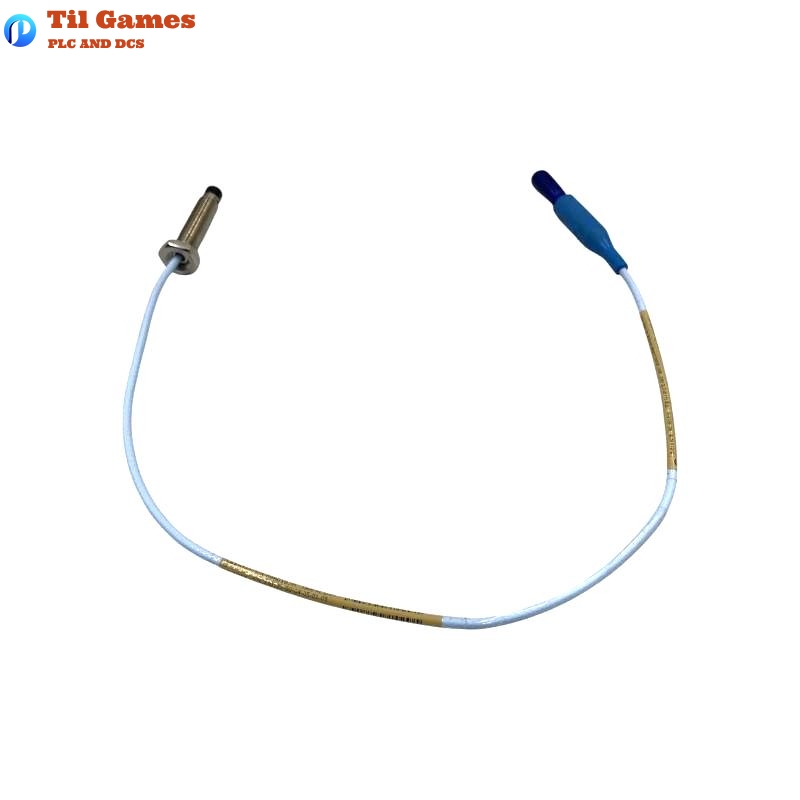

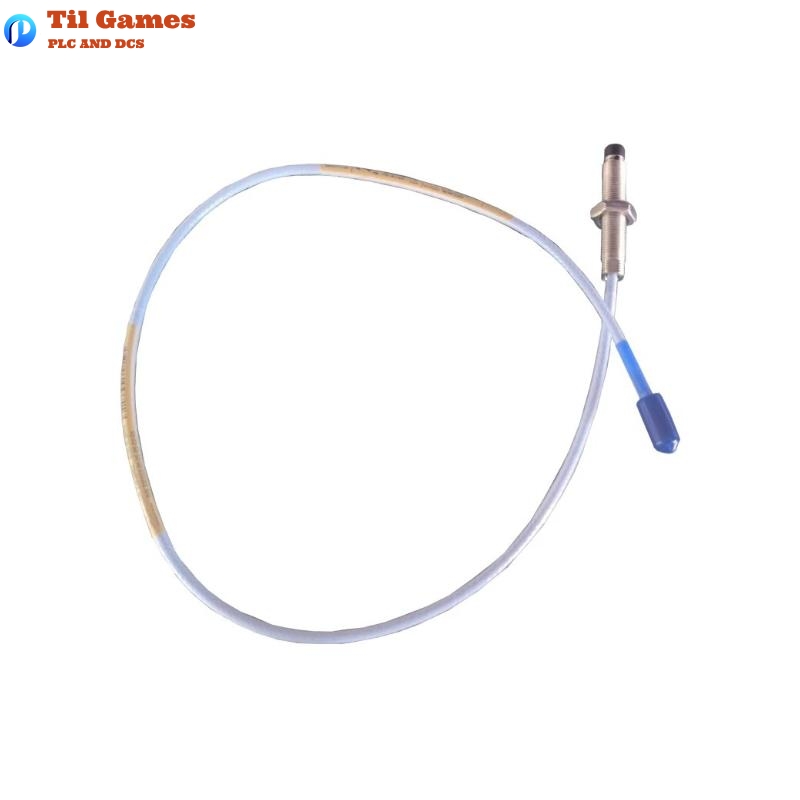

3300 XL 8 mm Proximity Probe – Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | 3300 XL 8 mm Proximity Probe |
| Part Number | 330103-00-03-10-02-00 |
| Thread Type | M10 x 1 thread |
| Total Length | 1.0 meter |
| Unthreaded Length | 3.0 mm |
| Cable Type | Standard cable with ClickLoc connector |
| Connector Type | Miniature coaxial ClickLoc connector |
| ClickLoc Torque Spec | Finger-tight |
| Insulation Material | Fluoroethylene propylene (FEP) |
| Probe Tip Diameter | 8.0 mm (0.31 in) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 Stainless Steel |
| Tensile Strength | 330 N (75 lbf) from probe case to probe lead |
| Nominal Probe Resistance | 7.59 ± 0.50 Ω |
| Capacitance | 69.9 pF/m |
| Linear Range | 2 mm (80 mils): from 0.25 mm to 2.3 mm (10 to 90 mils) |
| Recommended Gap Setting | 1.27 mm (50 mils) |
| Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) ± 5% for 1 m system |
| Deviation from Straight Line (DSL) | ±0.025 mm (±1 mil) |
| Operating Temperature (Probe) | -52°C to +177°C (-62°F to +350°F) |
| Storage Temperature (Probe) | -52°C to +177°C (-62°F to +350°F) |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Minimum Shaft Diameter | 50.8 mm (2.0 in); recommended ≥76.2 mm (3.0 in) |
| Minimum Target Size | 15.2 mm (0.6 in) flat conductive surface |
| Mounting Torque | 7.5 N·m (66 in·lbf) recommended for M10 x 1 threads |
| Compliance | API 670 compliant; CE Marked (EN 61000-6-2 / 6-4), FCC Part 15 |
| Hazardous Area Approvals | CSA, ATEX, IECEx available (Zone 0, Zone 2, Class I Div 2 depending on model) |
| Dimensions | Case length varies by configuration; 30 mm (1.2 in) for typical setup |
| Weight | Approx. 0.323 kg (1.0 meter probe including cable) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary use of the 330103-00-03-10-02-00 proximity probe?
A1: It is used for vibration and position monitoring in machinery with fluid-film bearings, and supports applications such as radial vibration, axial position, and Keyphasor reference.
Q2: What is the recommended gap setting for this proximity probe?
A2: The recommended gap is approximately 1.27 mm (50 mils), which corresponds to -9 Vdc output.
Q3: Can this probe operate in high-temperature environments?
A3: Yes, it supports operating temperatures up to 177°C (350°F). For higher ranges, ETR versions rated up to 218°C (425°F) are available.
Q4: Is the 330103 probe compatible with older 3300 series components?
A4: Yes, it is electrically and physically interchangeable with non-XL 3300 8 mm components, ensuring backward compatibility.
Q5: What is the total linear measurement range of this probe?
A5: The linear range is from 0.25 mm to 2.3 mm (10 to 90 mils), offering 2 mm (80 mils) of linear measurement.
Q6: Does the probe require a special connector torque during installation?
A6: No, the ClickLoc connector system requires only finger-tightening. No tools are needed.
Q7: What certifications does this model carry?
A7: It is compliant with FCC, CE (EN 61000-6-2/6-4), RoHS, and offers ATEX, CSA, and IECEx certifications for hazardous environments.
Q8: What materials are used for the probe case and tip?
A8: The case is made of AISI 303 or 304 stainless steel, and the probe tip is molded from polyphenylene sulfide (PPS) for high durability.
