Technical Specifications
| Item | Specification |
|---|---|

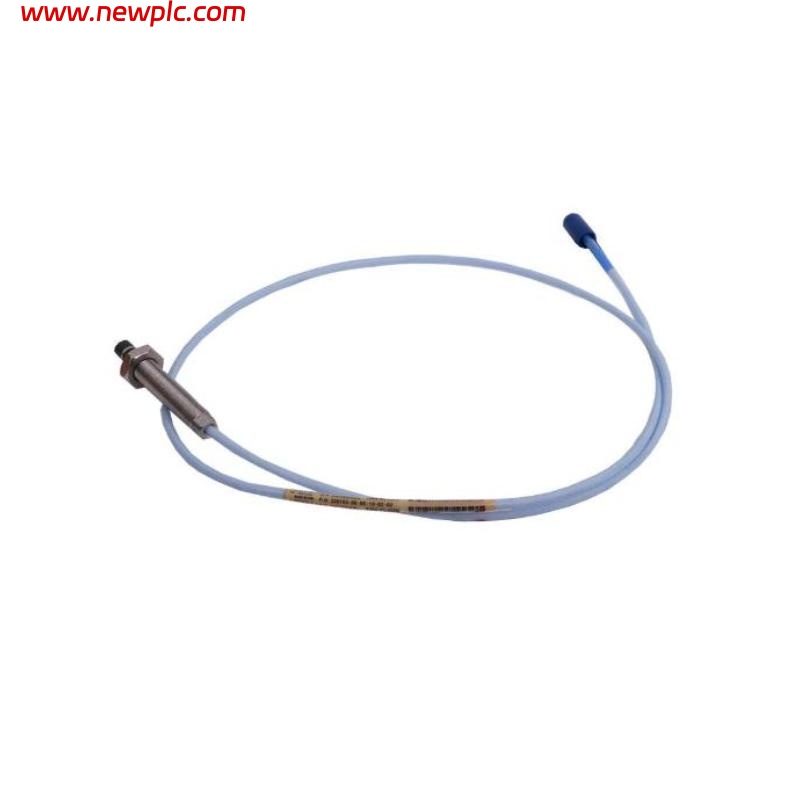

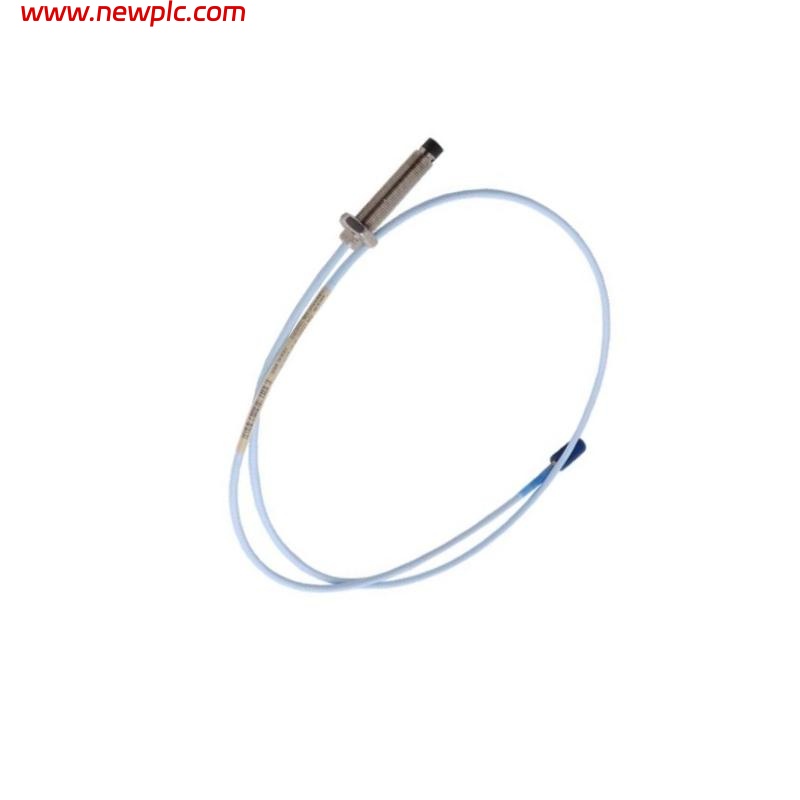

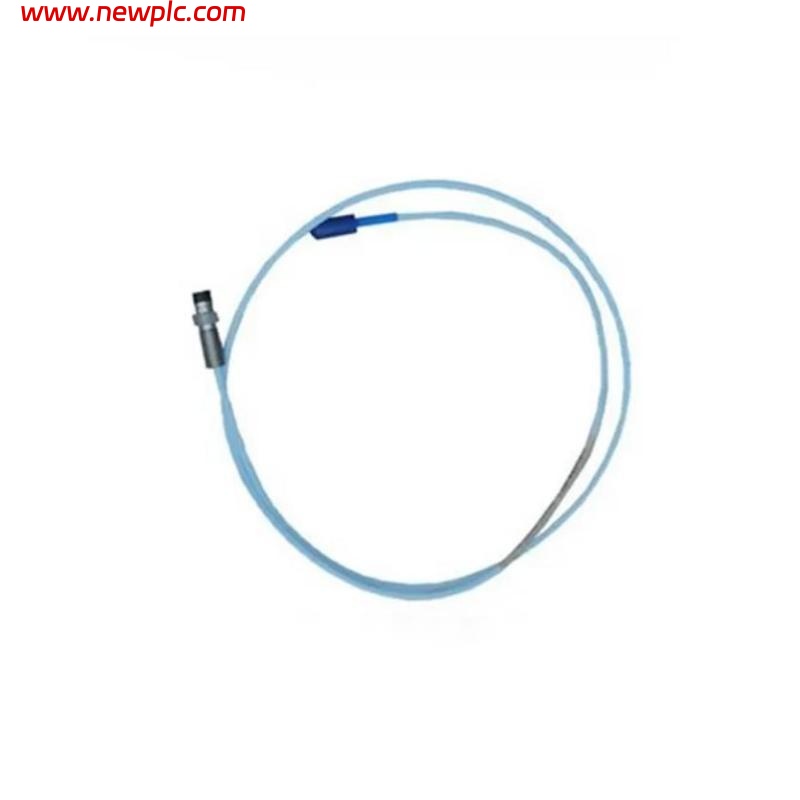

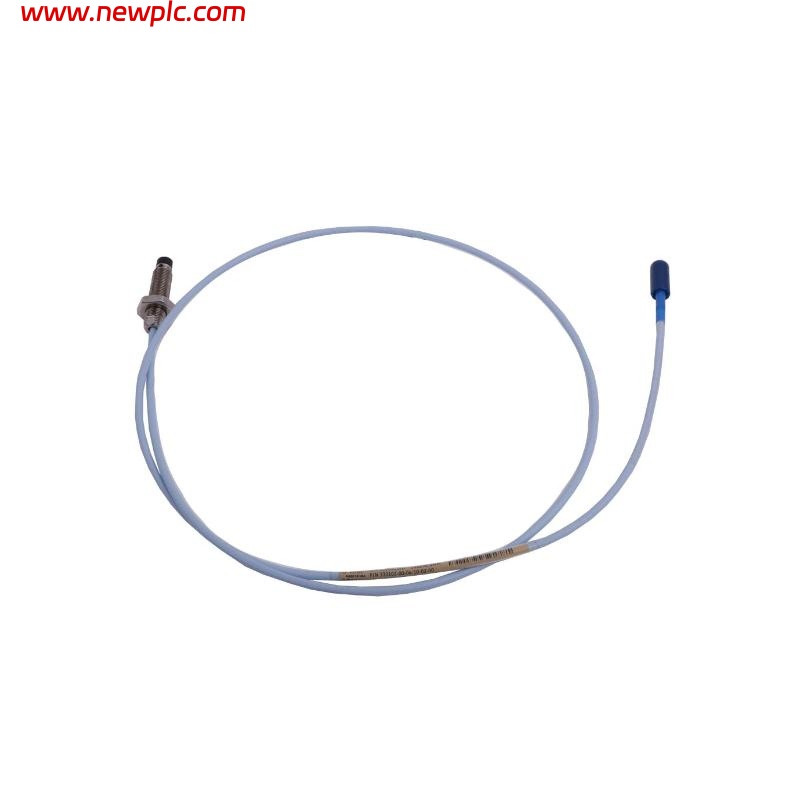

| Model | Bently Nevada 330103-00-04-05-02-05 |
| Series | 3300 XL 8 mm Proximity Probe |
| Probe Type | Non-contact eddy current proximity probe |
| Material | Stainless steel |
| Nominal Probe Tip Diameter | 8 mm (0.315 in) |
| Thread Size | M10 x 1 |
| Nominal Linear Range | 2 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| System Power Supply | –24 VDC (typical) |
| Frequency Response | 0 to 10 kHz |
| Operating Temperature | –35°C to +177°C (–31°F to +350°F) |
| Storage Temperature | –51°C to +177°C (–60°F to +350°F) |
| Humidity | 100% condensing |
| Shock Limit | 500 g peak |
| Vibration Limit | 10 g peak, 10 to 2000 Hz |
| Insulation Resistance | >10 MΩ |
| Connector Type | Miniature coaxial connector |
| Compatible Extension Cable | 330130-0xx-xx-xx-xx |
| Compatible Proximitor | 3300 XL 3300 Series |
| Dimensions | Total Length : 0.5 meter |
| Weight | 0.161 kg |
FAQ
FAQ
Q1: What types of machinery is this probe suitable for?
A1: It is mainly used for shaft vibration and displacement monitoring of rotating machinery such as turbines, compressors, pumps, and motors.
Q2: What is the difference between 330103-00-04-05-02-05 and the 330104 series?
A2: The 330103 series is an 8 mm probe designed for medium-range measurements, while the 330104 series differs in electrical configuration.
Q3: Is this probe compatible with older 3300 series proximitor modules?
A3: Yes, it is compatible with 3300 XL proximitor modules but not recommended for non-XL systems.
Q4: What is the recommended probe-to-target gap during installation?
A4: A nominal initial gap of 1.0 mm is recommended for optimal linear performance.
Q5: Can the probe cable be extended?
A5: Yes, but only with genuine Bently Nevada extension cables to ensure proper signal transmission.
Q6: Does this product require periodic calibration?
A6: Yes, calibration every two years is recommended to maintain accuracy.
Q7: Can the probe operate in high humidity or oil mist environments?
A7: Yes, it features a sealed design that ensures reliable operation in such conditions.
Q8: What precautions should be taken during transport and storage?
A8: Avoid mechanical shock and electrostatic discharge; store in a dry and clean environment.
