Technical Specifications
| Item | Specification |
|---|---|

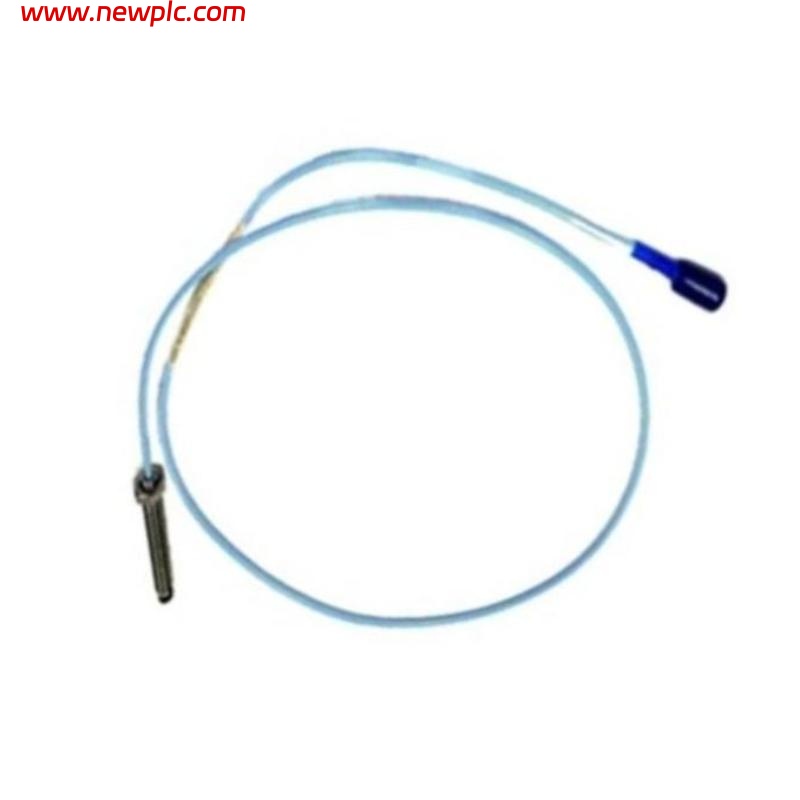

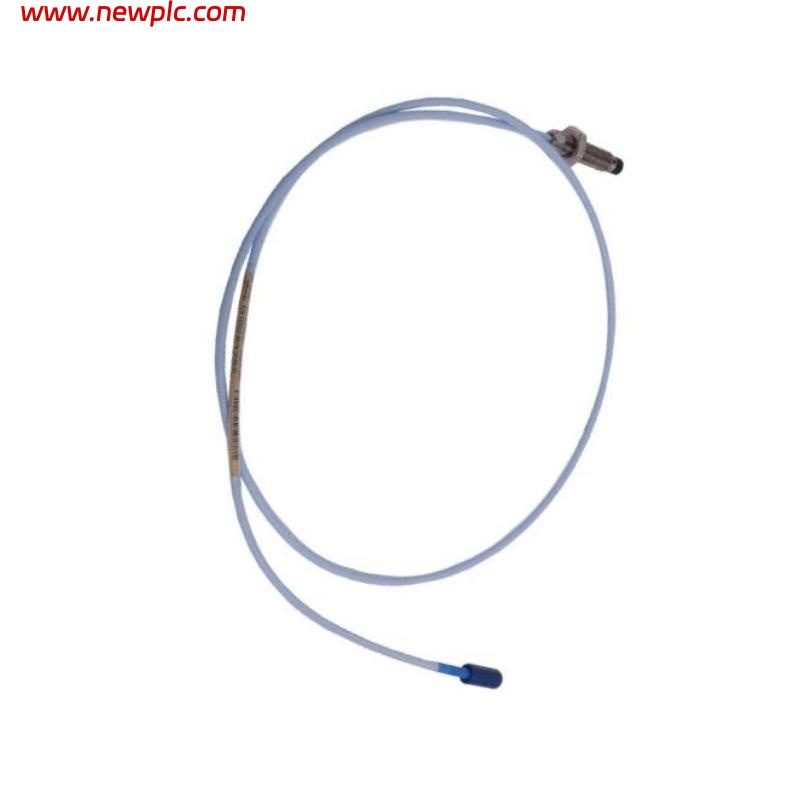

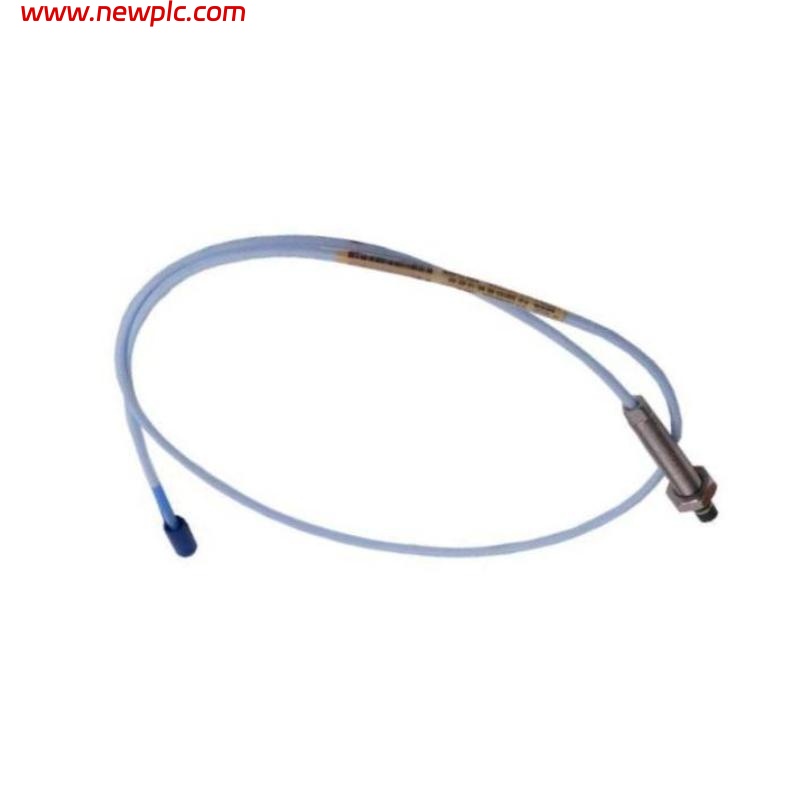

| Model | Bently Nevada 330103-00-04-10-01-05 |
| Series | 3300 XL 8 mm Proximity Probe |
| Probe Type | Non-contact eddy current proximity probe |
| Material | Stainless steel |
| Nominal Probe Tip Diameter | 8 mm (0.315 in) |
| Thread Size | M10 x 1 |
| Nominal Linear Range | 2 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| System Power Supply | –24 VDC (typical) |
| Frequency Response | 0 to 10 kHz |
| Operating Temperature | –35°C to +177°C (–31°F to +350°F) |
| Storage Temperature | –51°C to +177°C (–60°F to +350°F) |
| Humidity | 100% condensing |
| Shock Limit | 500 g peak |
| Vibration Limit | 10 g peak, 10 to 2000 Hz |
| Insulation Resistance | >10 MΩ |
| Connector Type | Miniature coaxial connector |
| Compatible Extension Cable | 330130-0xx-xx-xx-xx |
| Compatible Proximitor | 3300 XL Series |
| Dimensions | Total Length : 1.0 meter |
| Weight | 0.323 kg |
FAQ
FAQ
Q1: What is the difference between 330103-00-04-10-01-05 and other 330103 series probes?
A1: This model has slight differences in electrical configuration and output characteristics, suitable for specific signal matching requirements.
Q2: What types of machinery is this probe suitable for?
A2: It is primarily used for shaft vibration and displacement monitoring of turbines, compressors, pumps, and motors.
Q3: What is the recommended probe-to-shaft gap during installation?
A3: A nominal initial gap of 1.0 mm is recommended to ensure optimal linear response.
Q4: Can this probe work with older 3300 XL proximitor modules?
A4: Yes, it is fully compatible with 3300 XL proximitor systems.
Q5: Can the probe cable be extended?
A5: Yes, but only with genuine Bently Nevada extension cables to maintain signal quality.
Q6: Can this probe operate in humid or oil mist environments?
A6: Yes, it is sealed for reliable operation in harsh industrial environments.
Q7: Does the probe require periodic calibration?
A7: Yes, a system calibration every two years is recommended to maintain measurement accuracy.
Q8: What precautions should be taken during transport or storage?
A8: Avoid mechanical shock and electrostatic discharge; store in a dry and clean environment.
