Technical Specifications
| Item | Specification |
|---|---|
| Model | 330103-00-04-10-02-01 |

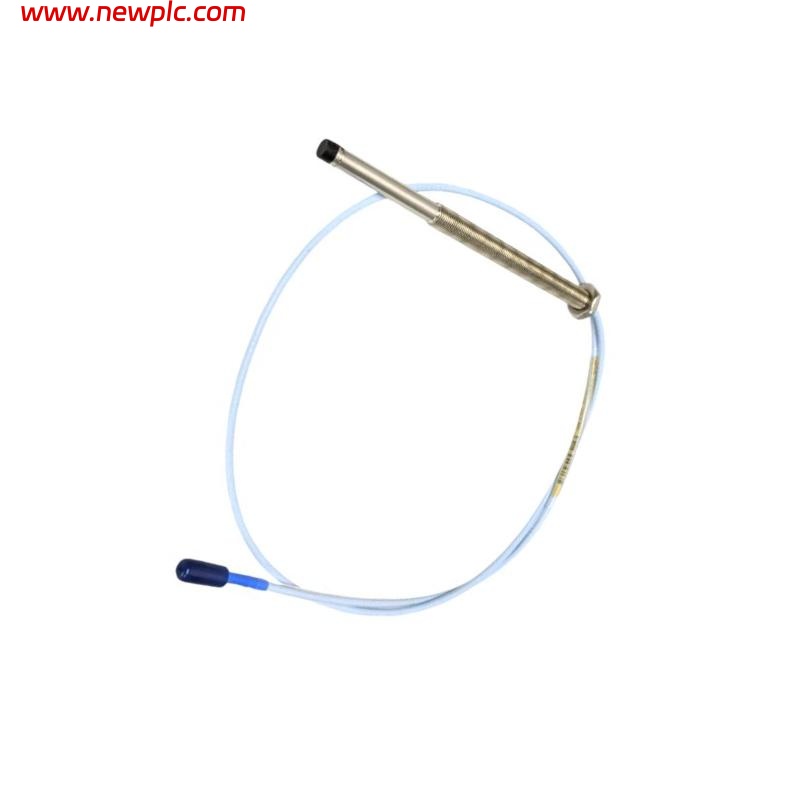

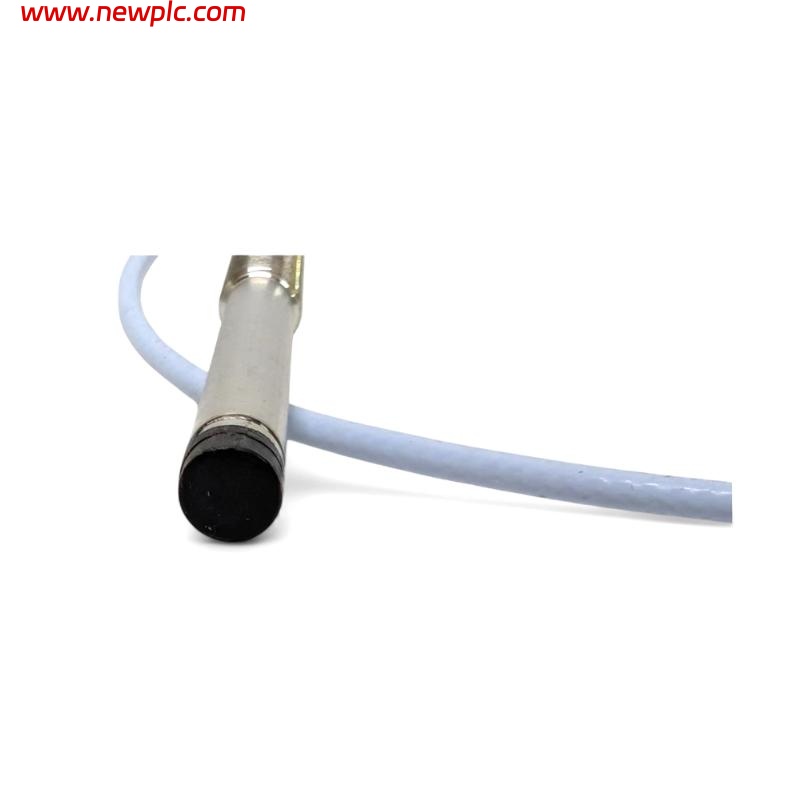

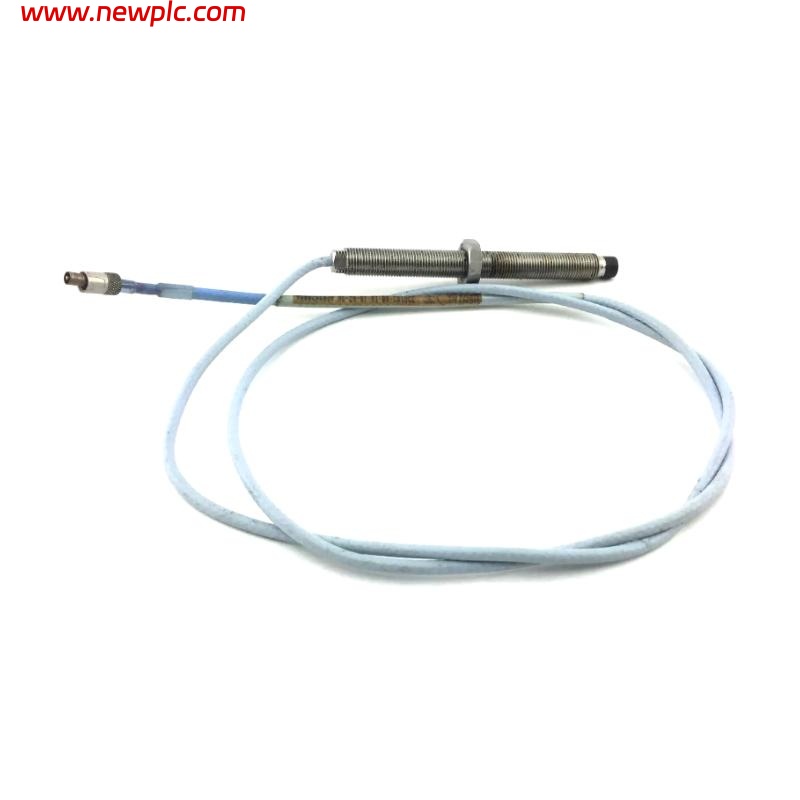

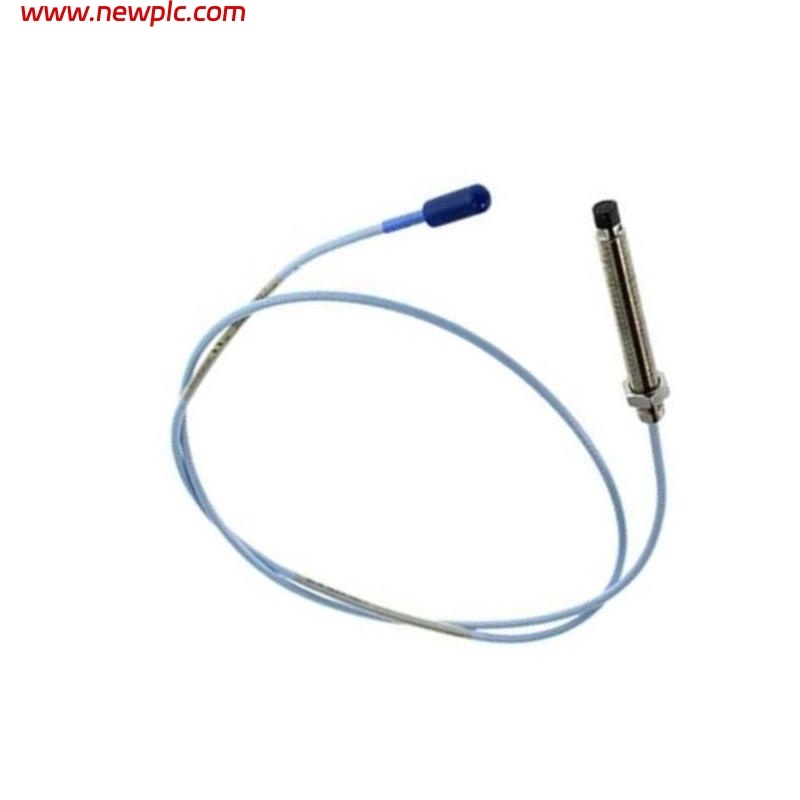

| Product Name | 3300 XL 8 mm Proximity Probe |
| Manufacturer | Bently Nevada |
| System Compatibility | 3300 XL Series |
| Probe Tip Diameter | 8 mm |
| Nominal Linear Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Frequency Response | 0 to 10 kHz |
| Operating Temperature | -35°C to +177°C |
| Probe Material | Stainless Steel |
| Thread Size | M10 × 1 |
| Insulation Resistance | >10⁹ Ω @ 500 Vdc |
| Connector Type | Coaxial Connector |
| Cable Type | Low-Noise Triaxial Cable |
| Electrical Length | 0.4 m (probe only) |
| Dimensions | Total Length : 1.0 meter |
| Weight | 0.323 kg |
FAQ
FAQ
Q1: Which systems is the 330103-00-04-10-02-01 probe compatible with?
A1: It is designed for the Bently Nevada 3300 XL Series and can be used with matching extension cables and proximitor sensors.
Q2: What is the linear range of this probe?
A2: The nominal linear range is 2.0 mm (80 mils).
Q3: Can this probe operate in high-temperature environments?
A3: Yes, it operates reliably between -35°C and +177°C.
Q4: Is this probe backward compatible with older 3300 systems?
A4: Yes, the 3300 XL series probes are backward compatible with previous 3300 models.
Q5: What is the standard sensitivity of the probe?
A5: The probe provides a sensitivity of 7.87 V/mm (200 mV/mil).
Q6: What is the thread size for installation?
A6: It uses an M10 × 1 thread for standardized mounting.
Q7: What is the weight of the probe?
A7: The probe weighs is 0.323 kg.
Q8: What are the main applications of this probe?
A8: It is mainly used for shaft vibration and displacement monitoring in turbines, compressors, pumps, and generators.
