Technical Specifications
| Item | Specification |
|---|---|

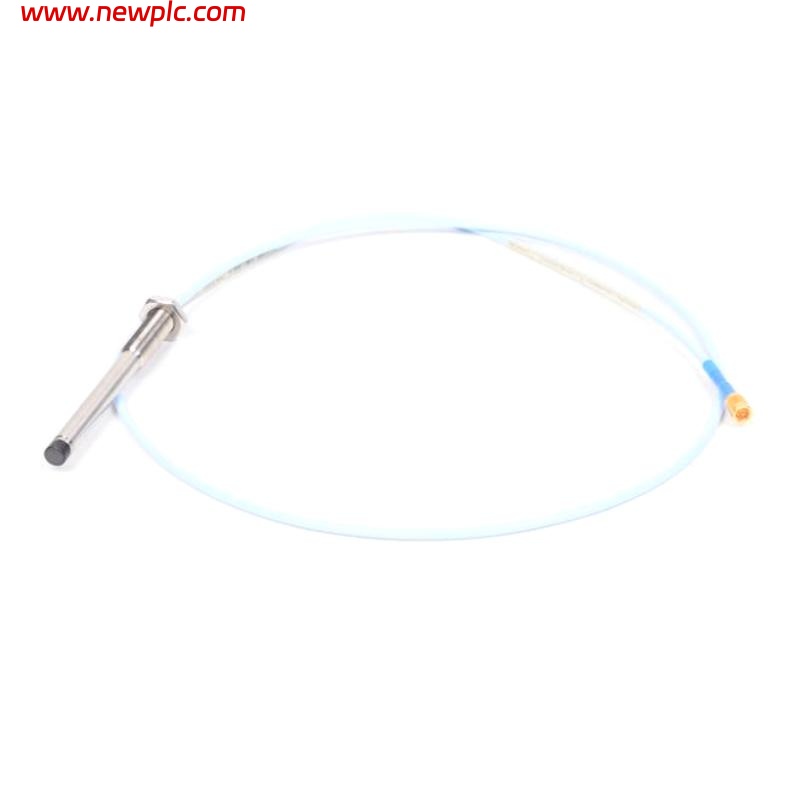

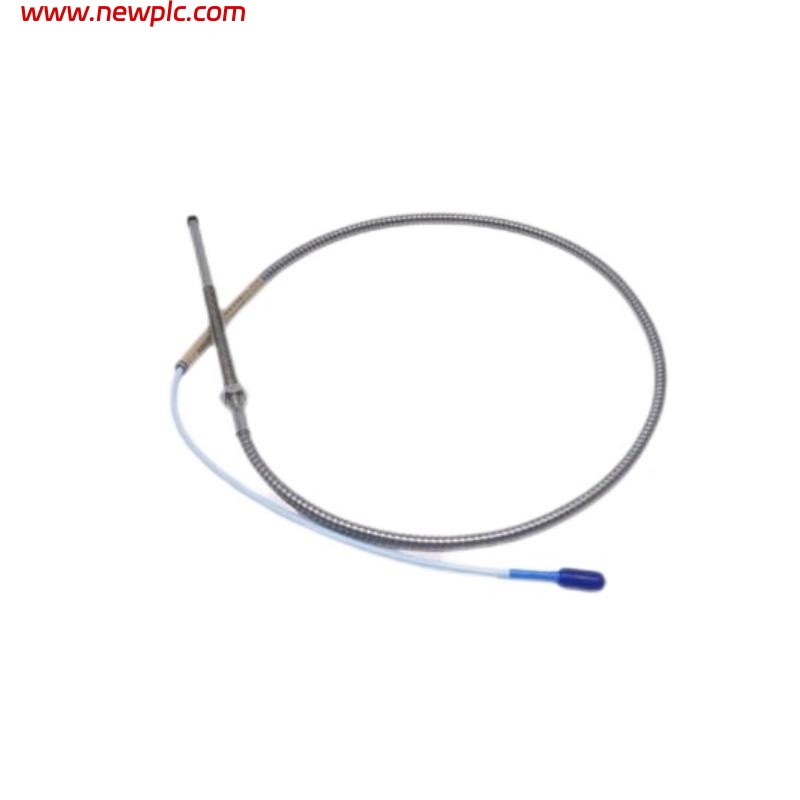

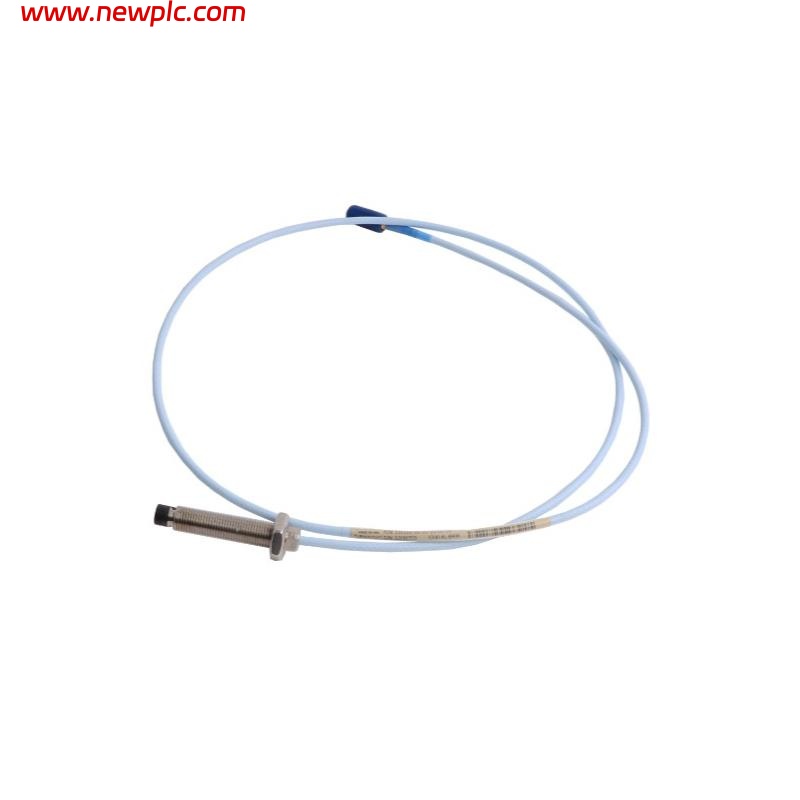

| Model Number | Bently Nevada 330103-00-05-05-12-05 |
| Series | 3300 XL 8 mm Proximity Probe |
| Probe Type | Eddy Current Proximity Probe |
| Application | Shaft vibration and displacement monitoring for rotating machinery |
| Probe Diameter | 8 mm |
| Cable Type | Dual-shielded coaxial cable |
| Material | Stainless steel housing |
| Thread Size | M10 × 1 |
| Operating Temperature Range | -35°C to +177°C |
| Frequency Response | DC to 10 kHz |
| System Compatibility | Compatible with 3300 XL Proximitor units and extension cables |
| Output Signal | Voltage output proportional to the distance from target |
| Typical Linear Range | 2 mm (200 mils) |
| Power Supply | Supplied by Proximitor |
| Dimensions | Total Length : 0.5 meter |
| Weight | 0.161 kg |
FAQ
FAQ
Q1: What is the main application of this probe?
A1: It is mainly used for shaft vibration and displacement monitoring in turbines, compressors, and motors.
Q2: What does the “12-05” suffix indicate?
A2: It denotes specific cable length and connector configurations tailored for particular installation requirements.
Q3: Is this probe compatible with all 3300 XL Proximitor units?
A3: Yes, it is fully compatible with all 3300 XL series Proximitor units and extension cables.
Q4: What type of thread does the probe use?
A4: The probe uses an M10 × 1 metric thread for standard industrial mounting.
Q5: Can it operate in high-temperature environments?
A5: Yes, with an operating range from -35°C to +177°C, it is suitable for harsh industrial conditions.
Q6: What is the typical linear measurement range?
A6: It provides a typical linear range of 2 mm, ensuring accurate shaft displacement detection.
Q7: Does the probe require maintenance or calibration?
A7: It is designed to be maintenance-free but should be checked periodically for secure installation.
Q8: Can it be used in hazardous or explosive environments?
A8: Yes, when used with certified explosion-proof Proximitor systems.
