Technical Specifications
| Item | Specification |
|---|---|

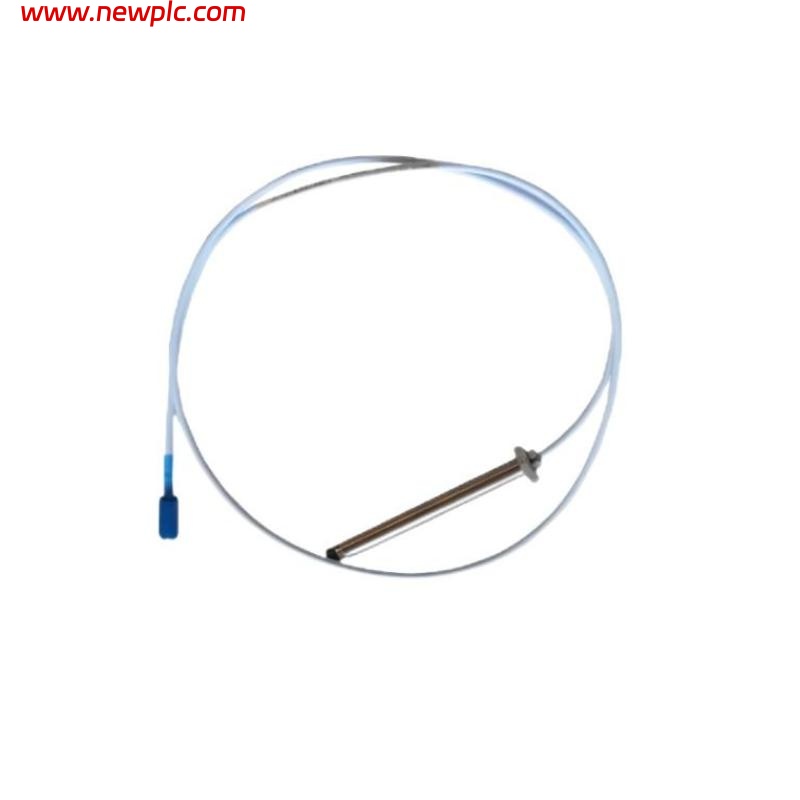

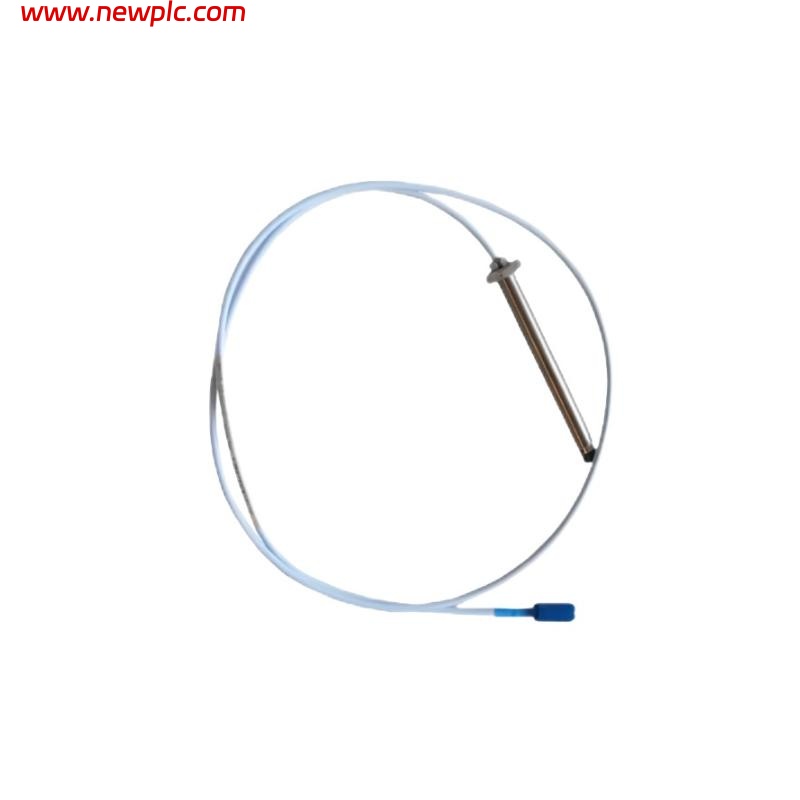

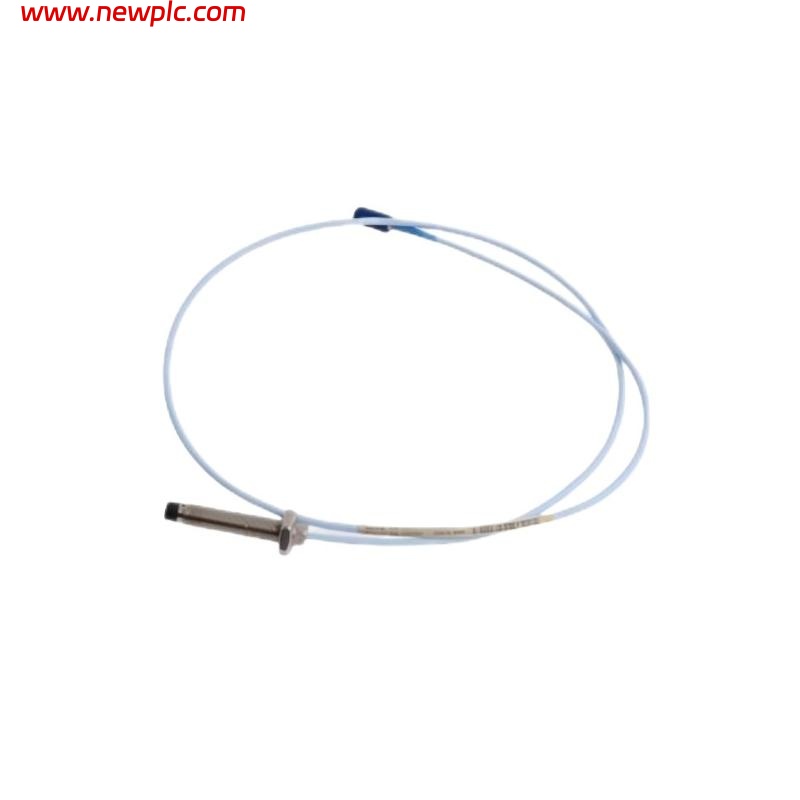

| Model Number | Bently Nevada 330103-00-05-10-11-00 |
| Series | 3300 XL 8 mm Proximity Probe |
| Probe Type | Eddy Current Proximity Probe |
| Application | Shaft vibration and displacement monitoring for rotating machinery |
| Probe Diameter | 8 mm |
| Cable Type | Dual-shielded coaxial cable |
| Material | Stainless steel housing |
| Thread Size | M10 × 1 |
| Operating Temperature Range | -35°C to +177°C |
| Frequency Response | DC to 10 kHz |
| System Compatibility | Compatible with 3300 XL Proximitor units and extension cables |
| Output Signal | Voltage output proportional to probe-to-target distance |
| Typical Linear Range | 2 mm (200 mils) |
| Power Supply | Supplied by Proximitor |
| Dimensions | Total Length : 1.0 meter |
| Weight | 0.323 kg |
FAQ
FAQ
Q1: What is the main application of this probe?
A1: It is used for shaft vibration and displacement monitoring in turbines, compressors, motors, and pumps.
Q2: What does the “11-00” code indicate?
A2: The “11-00” code specifies the cable length and connector configuration for industrial installation requirements.
Q3: Is this probe compatible with 3300 XL Proximitor units?
A3: Yes, it is fully compatible with 3300 XL Proximitor units and extension cables.
Q4: What type of thread does the probe use?
A4: It uses an M10 × 1 metric thread suitable for standard mounting brackets.
Q5: What is the operating temperature range?
A5: It operates reliably from -35°C to +177°C, suitable for various industrial conditions.
Q6: What is the typical linear measurement range?
A6: The typical linear range is 2 mm, providing accurate displacement measurement.
Q7: Does this probe require maintenance or calibration?
A7: It is maintenance-free, but periodic inspection of installation and connections is recommended.
Q8: Can it be used in hazardous or explosive environments?
A8: Yes, when used with certified explosion-proof Proximitor units.
