Technical Specifications
| Item | Specification |
|---|---|
| Model | 330103-00-06-50-02-RU |

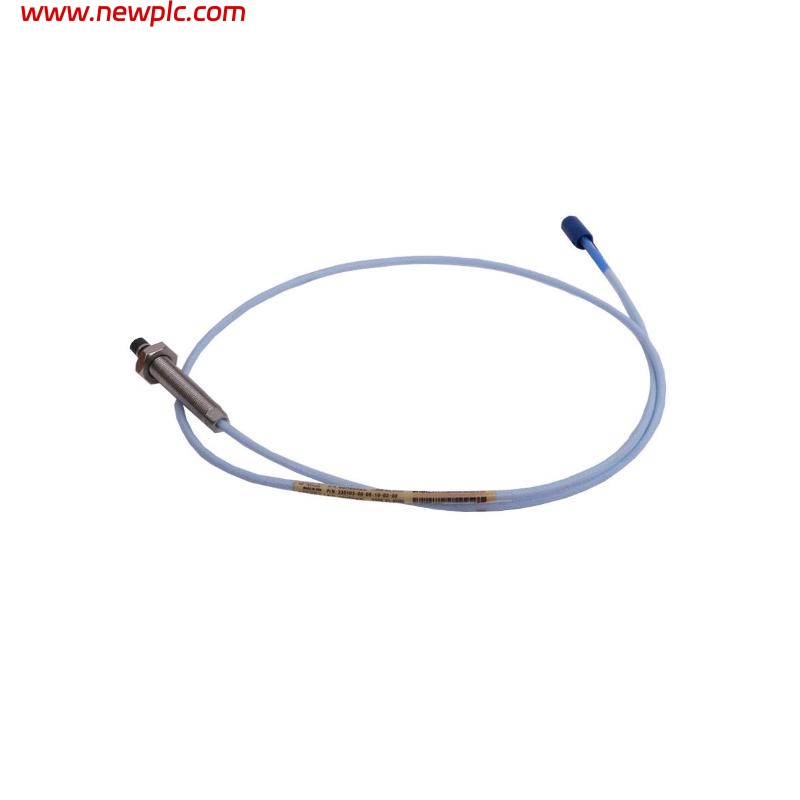

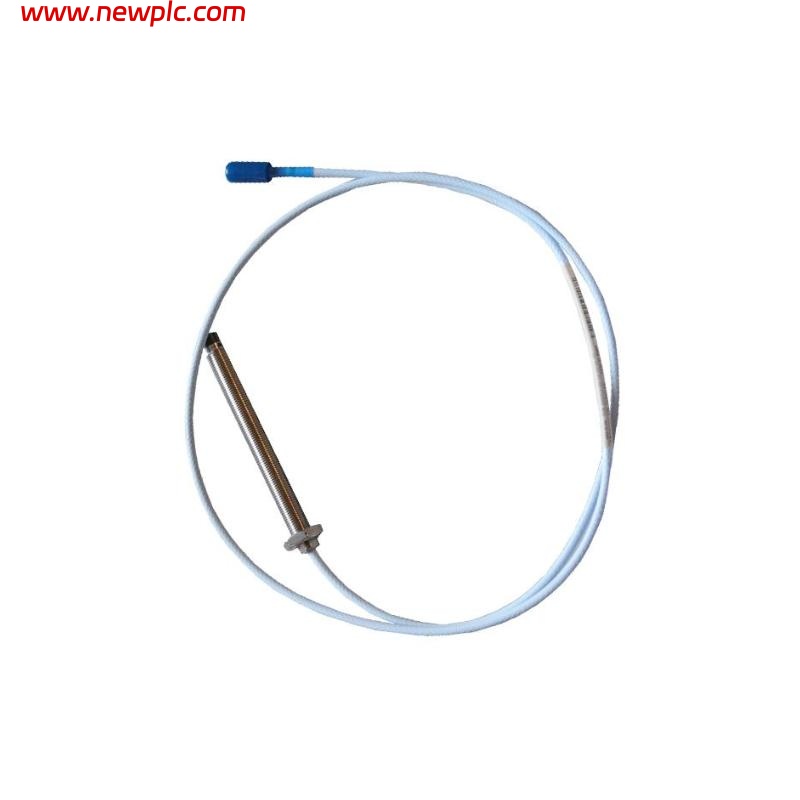

| Series | 3300 XL 8 mm Proximity Probe |
| Measurement Principle | Eddy-current (non-contact) sensing |
| Linear Range | 0–2 mm typical |
| Frequency Response | Up to ~10 kHz |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | Stainless steel (AISI 303 / 304) |
| Operating Temperature Range | –52 °C to +177 °C |
| Power Supply | –17.5 Vdc to –26 Vdc, max 12 mA |
| Connector Type | Miniature coaxial ClickLoc™ |
| Cable Option | “50” = 5.0 m total cable length |
| Suffix Code | “RU” = Region-specific / customer-specified version |
| Dimensions | Probe tip diameter: 8 mm；Probe length: 60 mm；Total cable length: 5.0 m |
| Weight | Approx. 0.38 kg |
FAQ
FAQ
Q1: What does the part number 330103-00-06-50-02-RU indicate?
It identifies a 3300 XL 8 mm probe with a 60 mm probe body, 5.0 m cable, ClickLoc™ connector, and an RU region-specific configuration.
Q2: What sensing technology does this probe use?
It uses eddy-current non-contact sensing for precise monitoring of shaft vibration and displacement.
Q3: What does “06” signify in this configuration?
It designates a 60 mm probe case length.
Q4: What does the “50” in the model number represent?
It indicates a factory-installed 5.0 m probe cable.
Q5: What does the “RU” suffix mean?
It denotes a region-specific or customer-specific configuration without changing core electrical characteristics.
Q6: Can this probe measure both static and dynamic shaft conditions?
Yes, it outputs both dynamic vibration signals and static shaft position signals.
Q7: Is it compatible with 3300 XL Proximitor® sensors?
Yes, it integrates fully with 3300 XL extension cables and Proximitor® sensors.
Q8: Is this probe suitable for harsh industrial environments?
Yes, its stainless-steel housing and long cable make it robust for high vibration, oil-rich, and elevated-temperature applications.
