Technical Specifications
| Item | Specification |
|---|---|
| Model | 330103-00-12-10-02-00 |

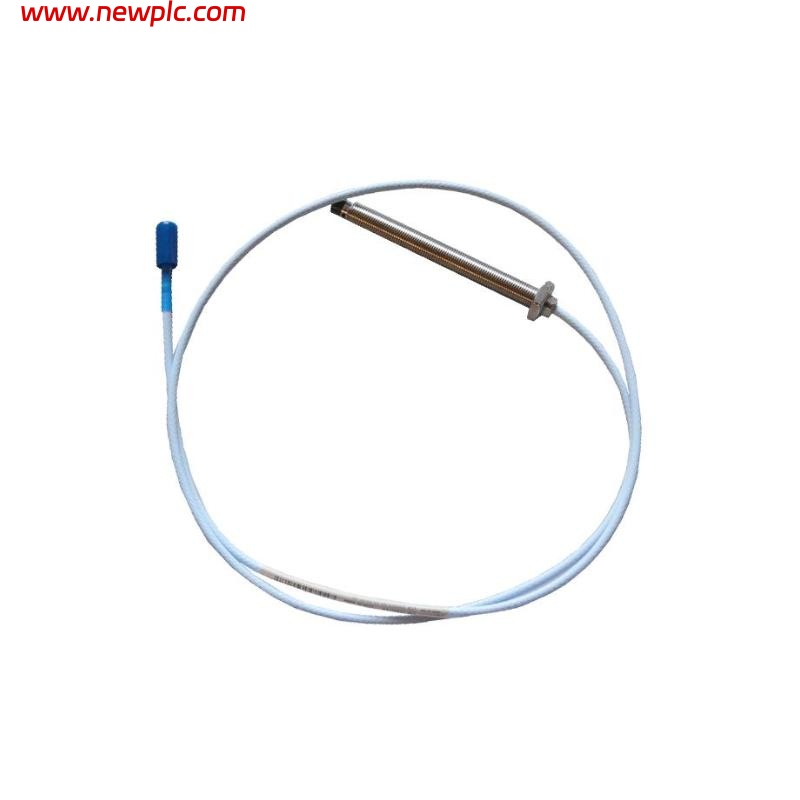

| Series | 3300 XL 8 mm Proximity Probe |
| Measurement Principle | Eddy-current (non-contact) displacement sensing |
| Linear Range | 0–2 mm typical |
| Frequency Response | Up to ~10 kHz |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | Stainless steel (AISI 303 / 304) |
| Operating Temperature Range | –52 °C to +177 °C |
| Power Requirements | –17.5 Vdc to –26 Vdc, max 12 mA (via Proximitor®) |
| Connector Type | Miniature coaxial ClickLoc™ |
| Probe Length Code | “12” = 120 mm probe body |
| Cable Option | “10” = 1.0 m integrated probe cable |
| Approval Code | “02” = Standard industrial approval |
| Final Suffix | “00” = Standard factory configuration |
| Dimensions | Probe tip diameter: 8 mm；Probe body length: 120 mm；Cable length: 1.0 m |
| Weight | Approx. 0.50 kg |
FAQ
FAQ
Q1: What does the model number 330103-00-12-10-02-00 describe?
It refers to a 3300 XL 8 mm proximity probe with a 120 mm body, 1.0 m cable, standard industrial approval, and standard factory options.
Q2: What does the “12” code indicate?
It specifies that the probe body length is 120 mm.
Q3: What does the “10” in the code represent?
It indicates a 1.0 m integrated probe cable.
Q4: What does the “02” approval code mean?
It denotes a standard industrial approval suitable for general machinery monitoring areas.
Q5: What does the “00” suffix stand for?
It represents a normal factory configuration without special certifications or custom changes.
Q6: What sensing technology does this probe use?
It uses eddy-current non-contact sensing to measure shaft vibration and displacement.
Q7: Is this probe compatible with 3300 XL Proximitor® sensors?
Yes, it is fully compatible with 3300 XL extension cables and Proximitor® units.
Q8: Can this probe be used in harsh industrial environments?
Yes, its stainless-steel construction, PPS probe tip, and high-temperature capability allow reliable operation in demanding industrial settings.
