Technical Specifications
| Item | Specification |
|---|---|
| Model | 330103-00-12-50-02-00 |

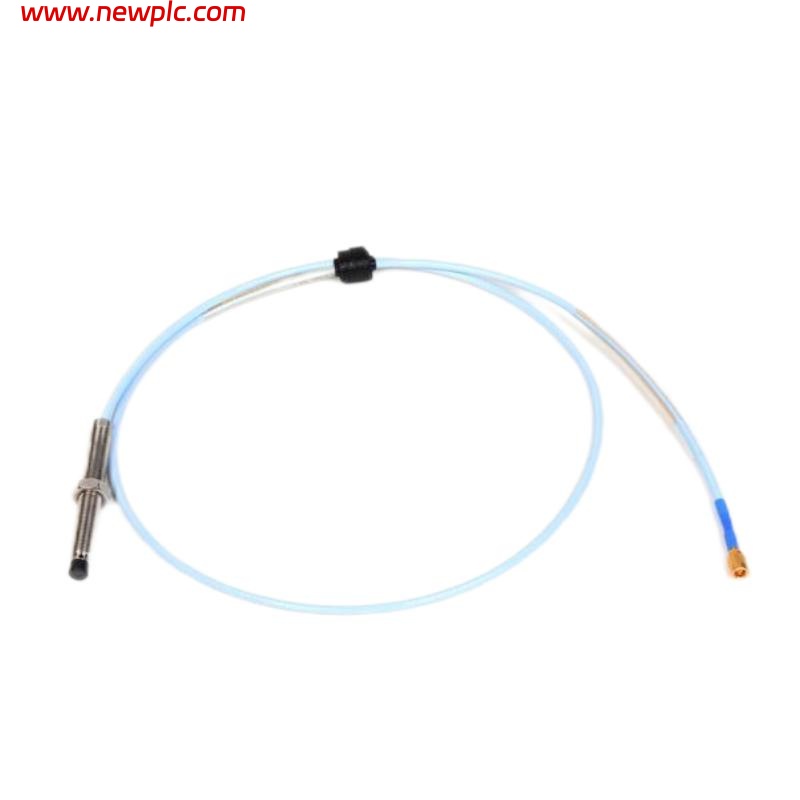

| Type | 8 mm Eddy-Current Proximity Probe (3300 XL Series) |
| Thread Size | 3/8-24 UNF |
| Unguarded Length | 0 in (standard for 330103 series) |
| Probe Case Length | 1.2 in (Code “12”) |
| Cable Length | 5.0 m (Code “50”) |
| Connector Type | 02 – Mini-coax connector with locking sleeve |
| Approval Option | 00 – Standard version, no special certifications |
| Measurement Principle | Non-contact eddy-current displacement measurement |
| Linear Measurement Range | 0.25 mm to 2.3 mm (typical) |
| Sensitivity | 7.87 V/mm (≈200 mV/mil typical) |
| Recommended Gap | –9 V nominal (≈1.27 mm) |
| Front-End Material | PPS engineering polymer |
| Housing Material | Stainless steel |
| Operating Temperature | –52 °C to +177 °C |
| System Length Capability | Up to 305 m (1000 ft) with extension cable and Proximitor |
| Compatible Proximitor | 3300 XL Proximitor Sensor |
| Applications | Shaft vibration, rotor position, thrust measurement, displacement monitoring |
| Dimensions | Probe tip diameter 8 mm; case length 1.2 in |
| Weight | Approx. 0.30 kg |
FAQ
FAQ
Q1: What is the main application of the 330103-00-12-50-02-00 probe?
It monitors shaft vibration, position, and displacement in critical rotating machinery.
Q2: What does the “50” in the part number indicate?
It specifies a 5.0-meter integral cable length.
Q3: What does connector code “02” mean?
It refers to a mini-coax connector equipped with a locking sleeve for secure field connections.
Q4: What does the approval code “00” represent?
It identifies the probe as a standard, non-certified version.
Q5: Is this probe compatible with the 3300 XL Proximitor?
Yes, it is designed to operate as part of the 3300 XL proximity measurement system.
Q6: What is the typical linear measurement range of this probe?
About 0.25 mm to 2.3 mm.
Q7: Can this probe withstand harsh temperature conditions?
Yes, it performs reliably from –52 °C to +177 °C.
Q8: What types of machines commonly use this probe?
Turbines, compressors, pumps, motors, and other high-value rotating equipment.
