Technical Specifications
| Item | Specification |
|---|---|
| Model | 330103-00-13-10-12-00 |

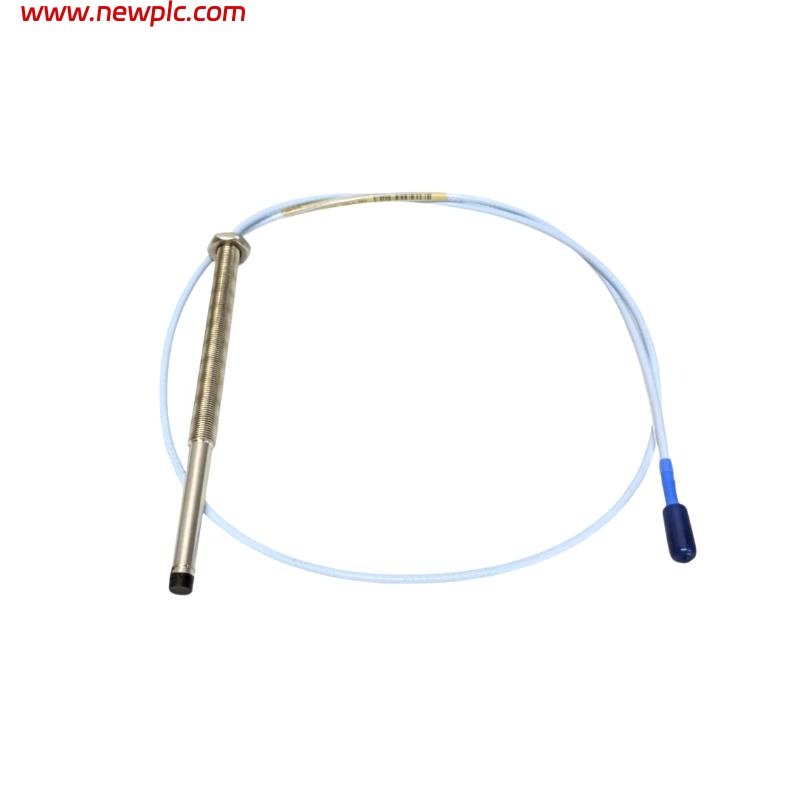

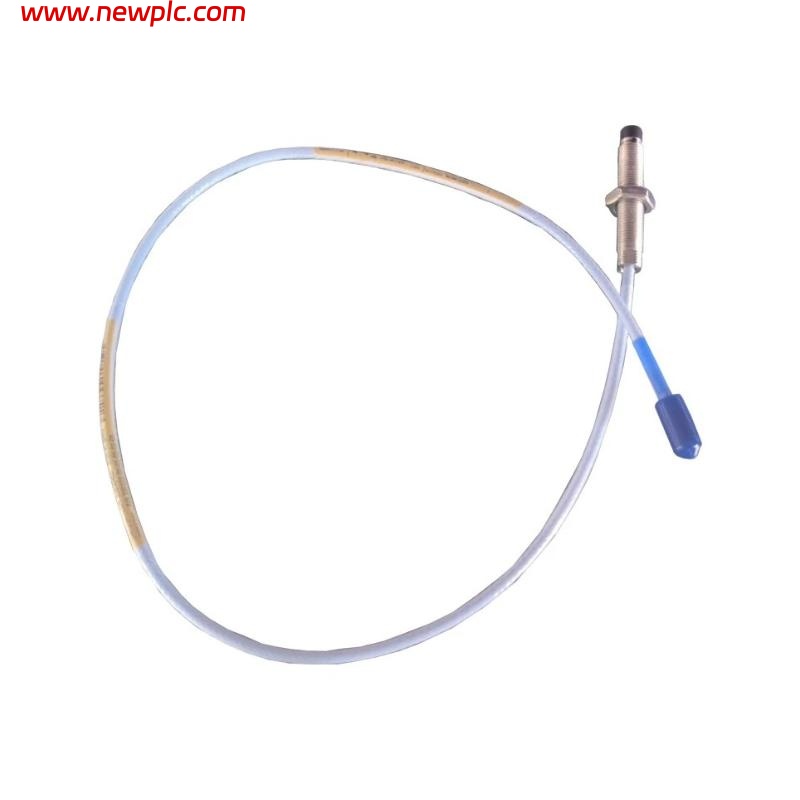

| Type | 8 mm Eddy-Current Proximity Probe (3300 XL Series) |
| Thread Size | 3/8-24 UNF |
| Probe Case Length | 1.3 in (Code “13”) |
| Cable Length | 1.0 m (Code “10”) |
| Connector Type | 12 – Alternative mini-coax connector style |
| Approval Option | 00 – Standard version, no special certification |
| Measurement Principle | Non-contact eddy-current displacement measurement |
| Linear Measurement Range | 0.25 mm to 2.3 mm (typical linear range) |
| Sensitivity | 7.87 V/mm (≈200 mV/mil typical) |
| Recommended Gap Voltage | –9 V nominal (≈1.27 mm) |
| Front-End Material | PPS engineering polymer |
| Housing Material | Stainless steel |
| Operating Temperature | –52 °C to +177 °C |
| System Length Capability | Up to 305 m (1000 ft) with extension cable and Proximitor |
| Compatible Proximitor | 3300 XL Proximitor Sensor |
| Applications | Shaft vibration, rotor displacement, thrust measurement, and general rotating machinery monitoring |
| Dimensions | Probe tip diameter 8 mm; case length 1.3 in |
| Weight | Approx. 0.29 kg |
FAQ
FAQ
Q1: What does the 330103-00-13-10-12-00 probe measure?
It measures shaft vibration, rotor position, and displacement in rotating machines.
Q2: What does the “13” in the part number indicate?
It identifies a probe case length of 1.3 inches.
Q3: What does the cable code “10” stand for?
It means the probe includes a 1.0-meter integral cable.
Q4: What is special about connector code “12”?
It represents an alternative mini-coax connector design used in specific installation requirements.
Q5: What does approval code “00” mean?
It indicates a standard model with no additional certifications.
Q6: Is this probe compatible with the 3300 XL Proximitor?
Yes, it is fully compatible with the 3300 XL Proximitor Sensor.
Q7: What is the typical measurement range of this probe?
Its linear range is approximately 0.25 mm to 2.3 mm.
Q8: Can the probe operate in extreme industrial conditions?
Yes, it is engineered for harsh environments and works reliably from –52 °C to +177 °C.
