Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model / Part Number | 330103-00-13-20-12-05 |
| Product Series | 3300 XL |

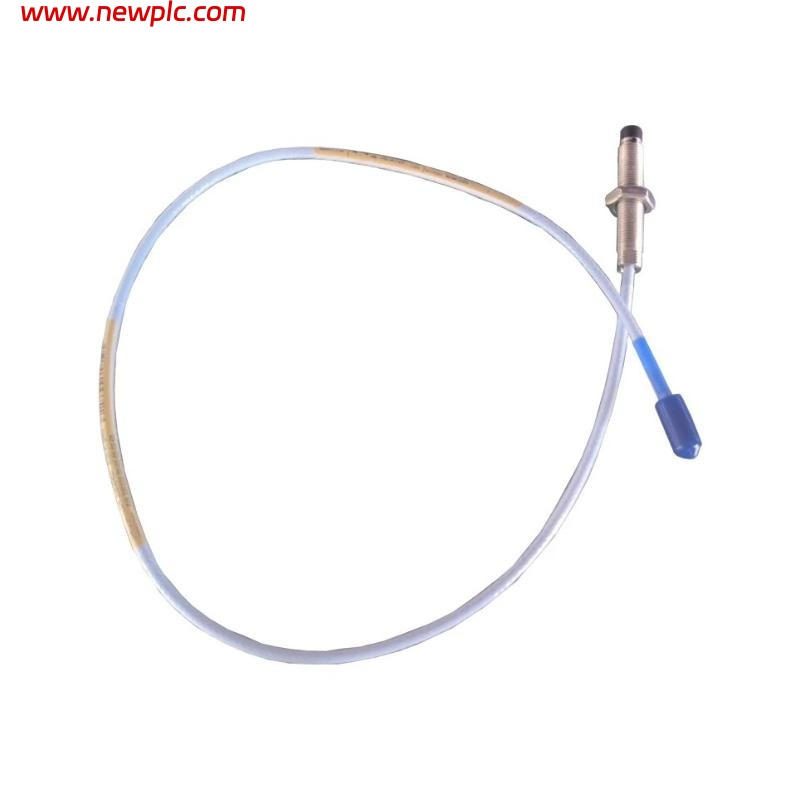

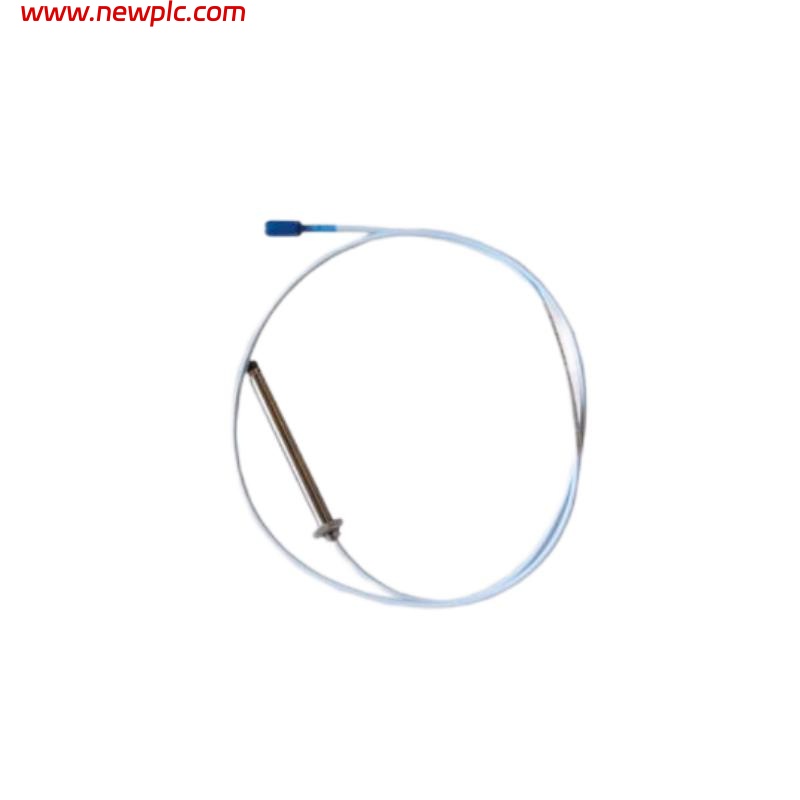

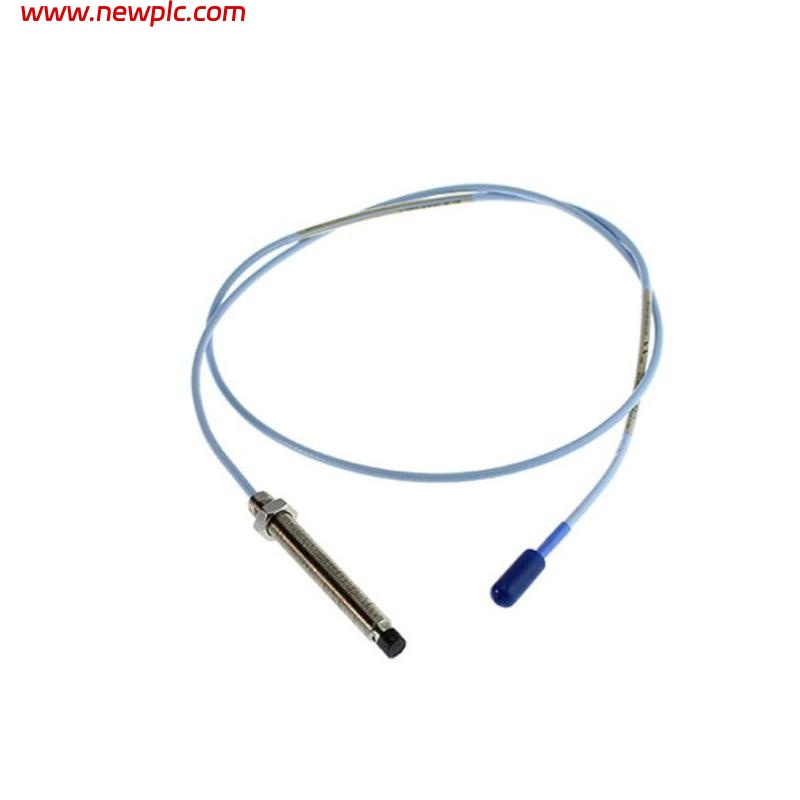

| Product Type | 8 mm Proximity Probe |
| Sensing Principle | Eddy-current, non-contact displacement measurement |
| Probe Tip Diameter | 8 mm |
| Mounting Thread | M10 × 1 |
| Unthreaded Length | 0 mm |
| Case Length | 13 mm |
| Cable Length | 2.0 m |
| Connector Type | Miniature ClickLoc connector with FluidLoc cable |
| Linear Measurement Range | Approximately 0.25 mm to 2.3 mm |
| Recommended Nominal Gap | Approximately 1.27 mm |
| Output Signal | Negative DC voltage proportional to target distance |
| Operating Temperature (Probe Body) | −52 °C to +177 °C |
| Maximum Probe Tip Temperature | Up to +218 °C |
| Maximum Cable Temperature | Up to +260 °C |
| Housing Material | Stainless steel body with PPS probe tip |
| Environmental Sealing | Industrial sealed design |
| Hazardous Area Approvals | CSA, ATEX, IECEx |
| Dimensions | Probe case length approx. 13 mm (excluding cable and connector) |
| Net Weight | Approximately 0.32 kg |
| Typical Application | Shaft vibration and relative position monitoring in rotating machinery |
FAQ
FAQ
Q1: What is the primary application of the Bently Nevada 3300 XL 8 mm proximity probe?
It is used for non-contact measurement of shaft vibration and relative position in industrial rotating equipment monitoring systems.
Q2: What does the configuration code “00-13-20-12-05” specify?
It defines the probe’s mechanical and electrical configuration, including zero unthreaded length, 13 mm case length, 2.0 m cable, ClickLoc connector with FluidLoc cable, and hazardous-area certifications.
Q3: What measurement technology does this probe use?
The probe uses eddy-current technology to detect changes in distance between the probe tip and the target surface.
Q4: What temperature range can this proximity probe withstand?
The probe body operates from approximately −52 °C to +177 °C, with higher temperature capability at the probe tip and cable.
Q5: Is this probe suitable for use in hazardous locations?
Yes, it is certified for hazardous areas and carries CSA, ATEX, and IECEx approvals.
Q6: What monitoring systems is this probe compatible with?
It is designed for use with Bently Nevada 3300 XL Proximitor sensors and compatible extension cables.
Q7: What materials are used in the construction of the probe?
The probe features a stainless-steel housing and a durable PPS probe tip for long-term industrial use.
Q8: Is the 3300 XL proximity probe intended for continuous operation?
Yes, it is designed for permanent installation and continuous monitoring of critical rotating machinery such as turbines, compressors, and generators.
