Technical Specifications
| Item | Specification |
|---|---|

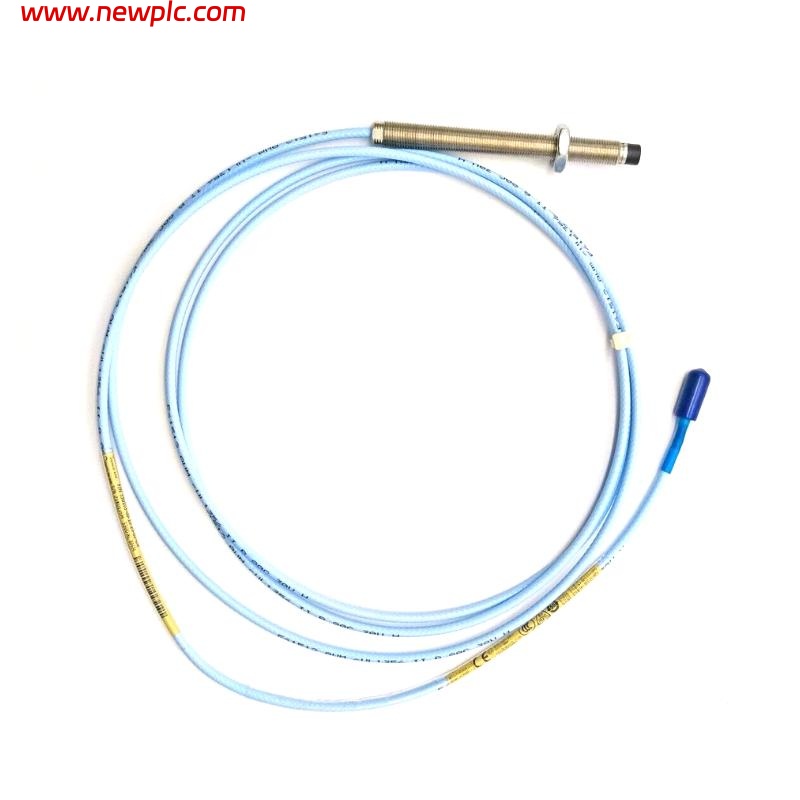

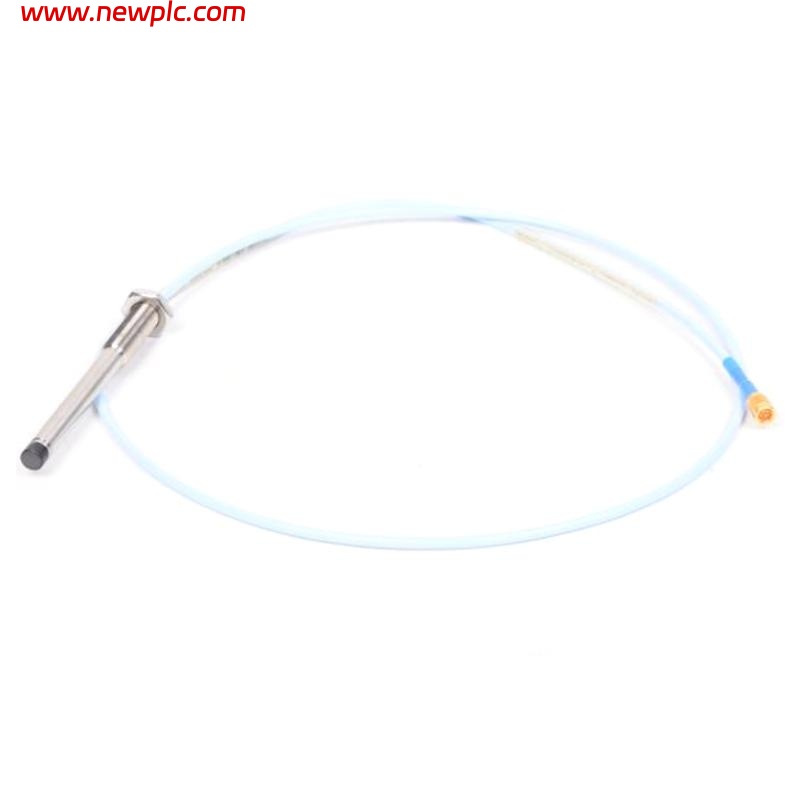

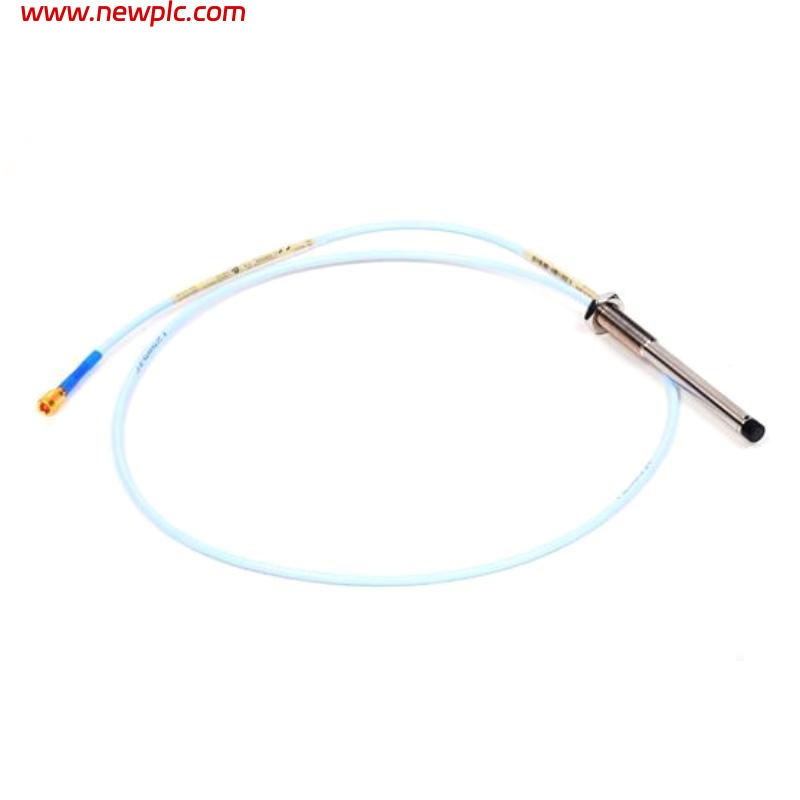

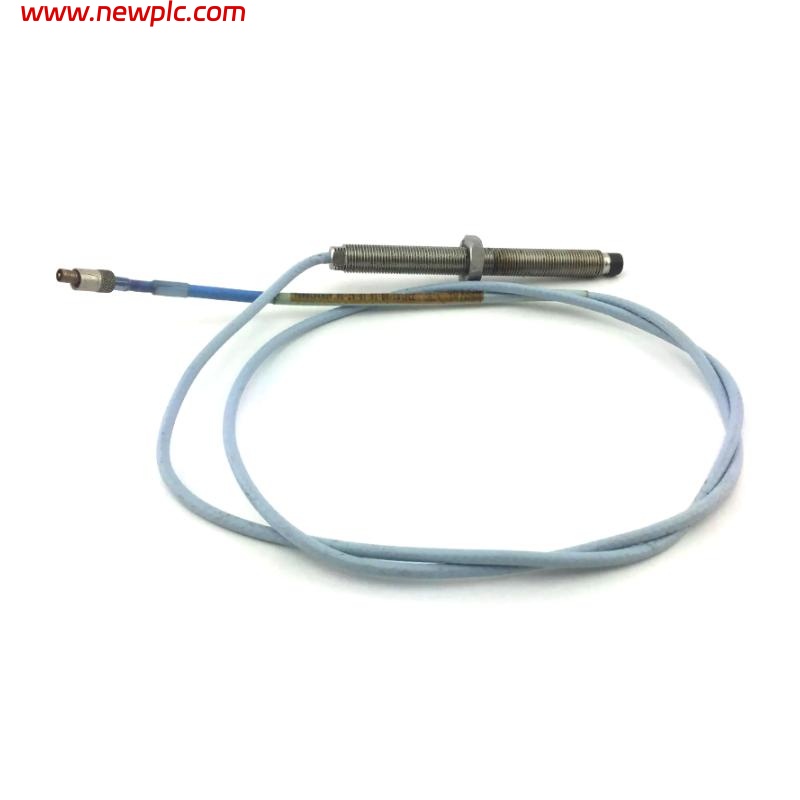

| Model | Bently Nevada 330103-02-17-05-02-CN |
| Type | 3300 XL Proximity Probe |
| Measurement Principle | Eddy-current, non-contact displacement measurement |
| Intended Application | Shaft vibration and displacement monitoring |
| System Compatibility | 3300 XL Proximitor Sensor |
| Probe Tip Material | High-temperature PEEK or equivalent |
| Housing Material | Stainless steel |
| Operating Temperature Range | –35 °C to +177 °C |
| Sensitivity | Matched-system calibrated |
| Total System Length | 17 ft |
| Linear Measurement Range | ~2.0 mm |
| Dimensions | Probe length ~50 mm |
| Weight | ~0.29 kg |
FAQ
FAQ
Q1: What is the purpose of the 330103-02-17-05-02-CN probe?
A1: To measure shaft vibration, displacement, and static position.
Q2: What does “17” indicate in the model number?
A2: The total calibrated system length is 17 feet.
Q3: Which proximitor is compatible with it?
A3: The 3300 XL Proximitor Sensor.
Q4: Is it suitable for harsh machinery environments?
A4: Yes, it is resistant to oil, vibration, and high temperatures.
Q5: What output does it produce?
A5: A voltage signal proportional to displacement.
Q6: Can it measure dynamic vibration?
A6: Yes, it measures both static and dynamic parameters.
Q7: What is the operating temperature range?
A7: –35 °C to +177 °C.
Q8: What are the dimensions and weight?
A8: Length ~50 mm, Weight ~0.29 kg.
