Technical Specifications
| Item | Specification |
|---|---|

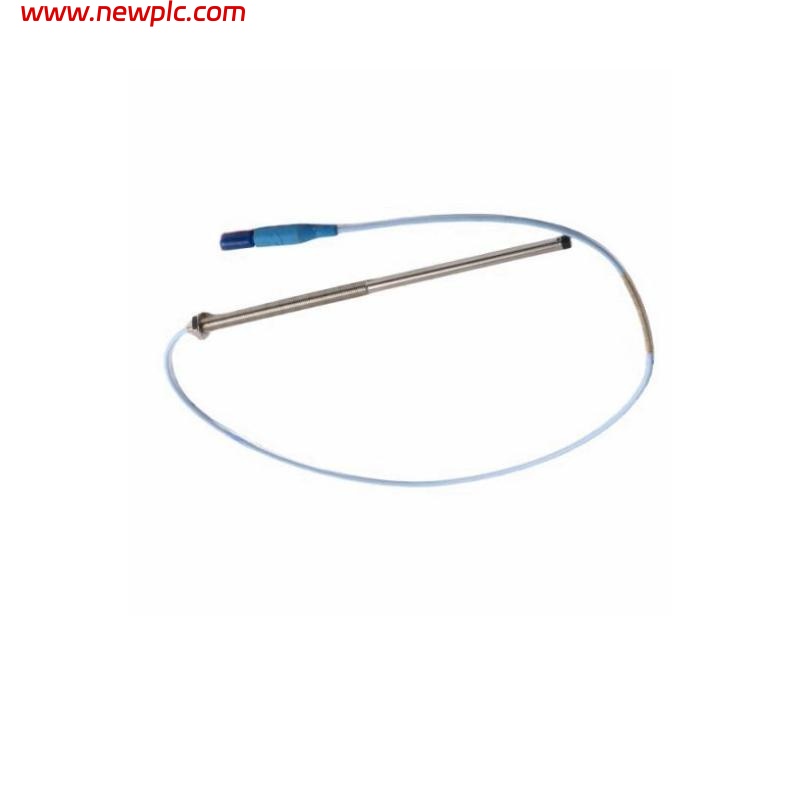

| Model | Bently Nevada 330103-11-16-10-12-05 |
| Type | 3300 XL Proximity Probe |
| Measurement Principle | Eddy-current, non-contact displacement and vibration measurement |
| Intended Application | Shaft vibration, displacement, and position monitoring |
| System Compatibility | 3300 XL Proximitor Sensor |
| Probe Tip Material | High-temperature PEEK or equivalent |
| Housing Material | Stainless steel |
| Operating Temperature Range | –35 °C to +177 °C |
| Sensitivity | Factory-matched calibration |
| Total System Length | 16 ft (probe + extension cable) |
| Linear Measurement Range | ~2.0 mm typical |
| Dimensions | Probe length ~50 mm |
| Weight | ~0.28 kg |
FAQ
FAQ
Q1: What is the purpose of the 330103-11-16-10-12-05 probe?
A1: It provides accurate shaft vibration, displacement, and position measurements in rotating machinery.
Q2: What does “16” in the model number refer to?
A2: It indicates a total calibrated system length of 16 feet.
Q3: Which proximitor is compatible with this probe?
A3: It is designed to operate with the 3300 XL Proximitor Sensor.
Q4: Can the probe be used in harsh industrial environments?
A4: Yes, its stainless-steel housing and robust insulation allow operation in oil, vibration, and high-temperature conditions.
Q5: What output does the probe generate?
A5: It outputs a voltage proportional to the probe-to-target distance.
Q6: Does it support both static and dynamic measurements?
A6: Yes, it measures both static shaft position and dynamic vibration signals.
Q7: What is the operating temperature range?
A7: The probe functions reliably between –35 °C and +177 °C.
Q8: What are the dimensions and weight of the probe?
A8: The probe length is approximately 50 mm, and the weight is about 0.28 kg.
