Technical Specifications
| Item | Specification |
|---|---|

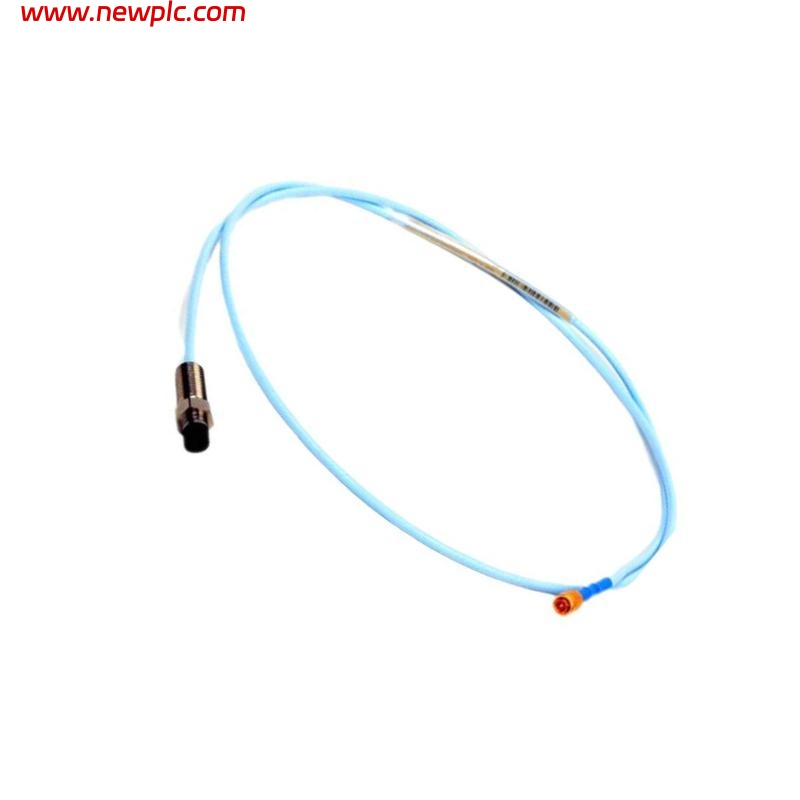

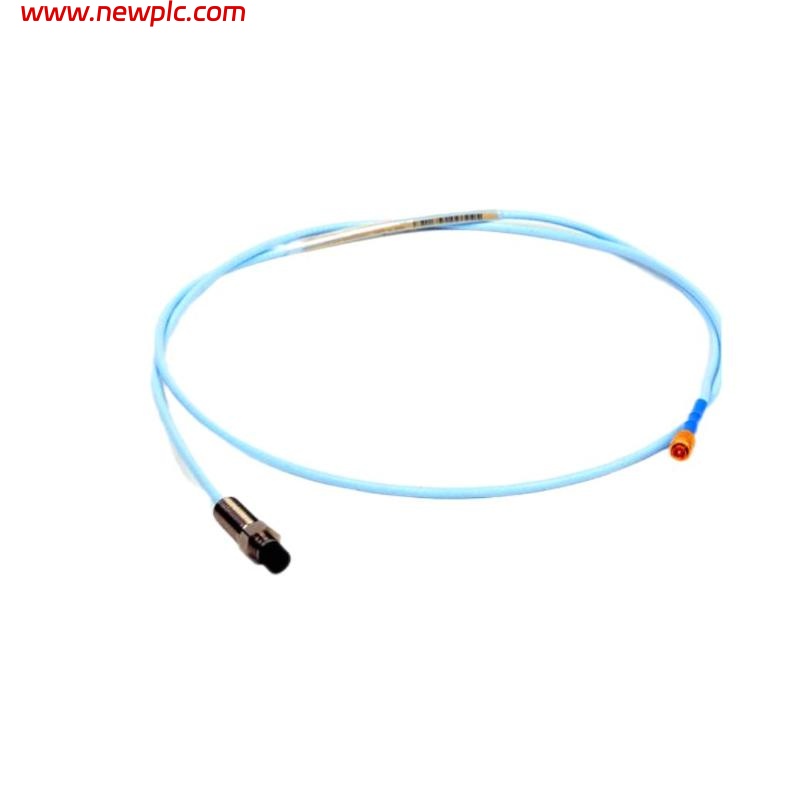

| Model | Bently Nevada 330104-00-02-50-02-05 |
| Type | 3300 XL Proximity Probe |
| Measurement Principle | Eddy-current, non-contact displacement measurement |
| Intended Application | Shaft vibration, displacement, and positional monitoring |
| System Compatibility | 3300 XL Proximitor Sensor |
| Probe Tip Material | High-temperature PEEK or equivalent |
| Housing Material | Stainless steel |
| Operating Temperature Range | –35 °C to +177 °C |
| Sensitivity | Factory-matched calibration with Proximitor |
| Total System Length | 2 ft system length |
| Linear Measurement Range | ~2.0 mm typical |
| Dimensions | Probe length ~45 mm |
| Weight | ~0.20 kg |
FAQ
FAQ
Q1: What is the main purpose of the 330104-00-02-50-02-05 probe?
A1: It provides accurate non-contact measurement of shaft vibration, displacement, and position in rotating machinery.
Q2: What does “02” in the model number represent?
A2: It indicates the total calibrated system length of 2 feet.
Q3: Which proximitor unit is compatible with this probe?
A3: The probe is designed for use with the 3300 XL Proximitor Sensor.
Q4: Can this probe be used in high-temperature environments?
A4: Yes, it is rated for operation from –35 °C to +177 °C.
Q5: What type of output does the probe generate?
A5: It outputs a voltage proportional to the gap between the probe and the monitored shaft surface.
Q6: Is the probe suitable for both static and dynamic measurements?
A6: Yes, it measures static shaft position as well as dynamic vibration.
Q7: What materials are used in the probe construction?
A7: The housing is stainless steel, and the probe tip uses high-temperature PEEK or an equivalent material.
Q8: What are the physical dimensions and weight of this probe?
A8: The probe length is approximately 45 mm, and the weight is about 0.20 kg.
