Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | Bently Nevada 330104-00-03-10-01-00 |

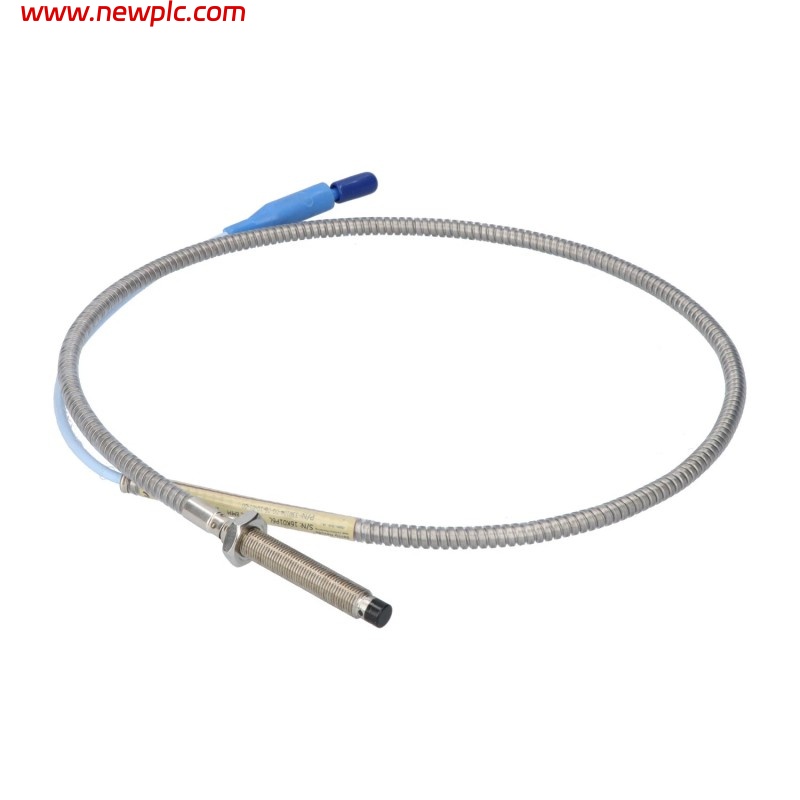

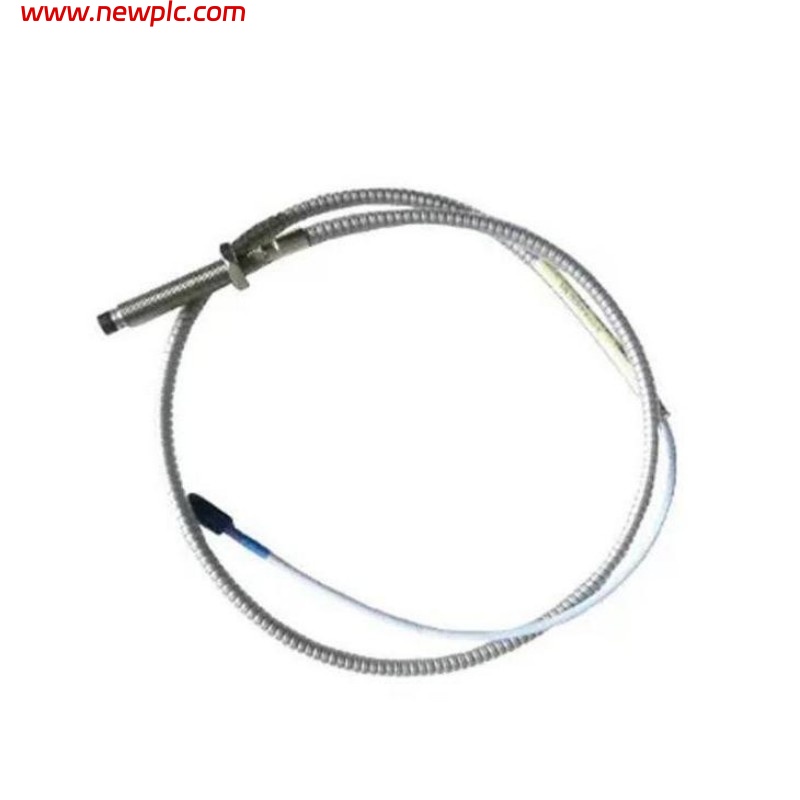

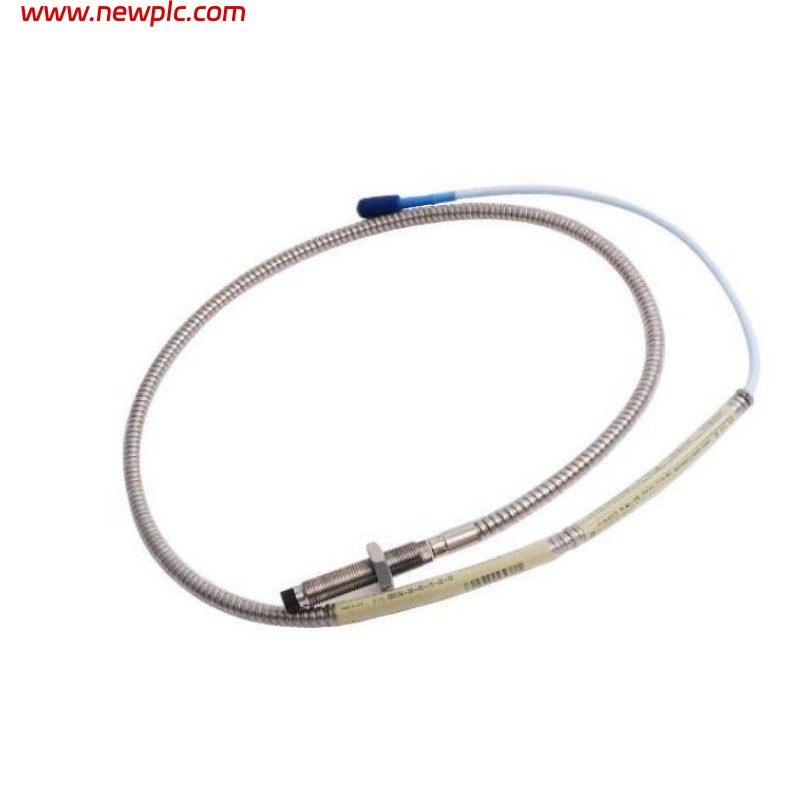

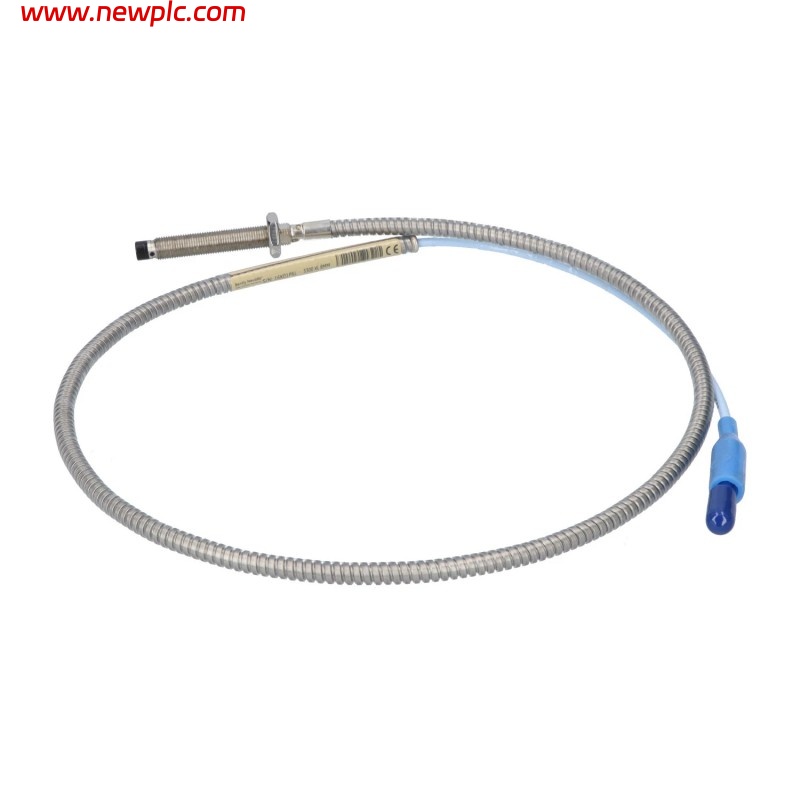

| Probe Type | 3300 XL 8 mm Proximity Probe (M10 x 1 thread, armored) |
| Output Scale Factor | 7.87 V/mm (200 mV/mil) ±5% (standard system, 5 m or 1 m) |
| Linear Range | 2 mm (80 mils), from 0.25 mm to 2.3 mm (10 to 90 mils) |
| Recommended Gap Voltage | -9 VDC (approx. 1.27 mm) |
| Frequency Response | 0 to 10 kHz, +0/-3 dB |
| Minimum Target Size | 15.2 mm diameter |
| Minimum Shaft Diameter | 50.8 mm (recommended ≥76.2 mm for radial vibration) |
| Cable Type | 75 Ω triaxial, FEP insulated, armored |
| Connector Type | ClickLoc miniature coaxial, gold-plated |
| Environmental Sealing | Viton® O-ring pressure seal |
| Operating Temperature (Probe) | -52°C to +177°C |
| Operating Temperature (Cable) | -52°C to +177°C |
| Humidity Resistance | <3% change in ASF under 93% RH for 56 days (IEC 68-2-3) |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Probe Case Material | AISI 303 or 304 stainless steel |
| Minimum Cable Bend Radius | 25.4 mm |
| Thread Size | M10 x 1 |
| Thread Engagement | Max. 15 mm |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
FAQ
FAQ
Q1: What is the measurement range of this probe?
A1: The 3300 XL 8 mm probe has a linear range of 2 mm (80 mils), from 0.25 mm to 2.3 mm.
Q2: What is the recommended gap setting?
A2: The recommended gap voltage is -9 VDC, which corresponds to a probe-to-target distance of approximately 1.27 mm (50 mils).
Q3: Can this probe be used in high-temperature applications?
A3: Yes, the standard version supports -52°C to +177°C, and the extended temperature version can go up to +218°C or higher.
Q4: Is it resistant to electromagnetic interference?
A4: Yes, the Proximitor sensor has high RFI/EMI immunity and meets CE compliance without requiring metallic enclosures.
Q5: What thread type does this model use?
A5: The 330104 model uses M10x1 threads and comes with armored cable.
Q6: Is it compatible with non-XL series components?
A6: Yes, it is compatible with 5 mm and 8 mm non-XL components, but system performance will be limited to the non-XL specs.
Q7: Can this probe be used for Keyphasor or overspeed monitoring?
A7: Yes, it can, provided you follow Bently Nevada’s guidelines for such applications.
Q8: What is the total weight of the system?
A8: A complete system typically weighs about 0.7 kg. The individual probe weighs 0.323 kg.
