Technical Specifications
| Item | Specification |
|---|---|

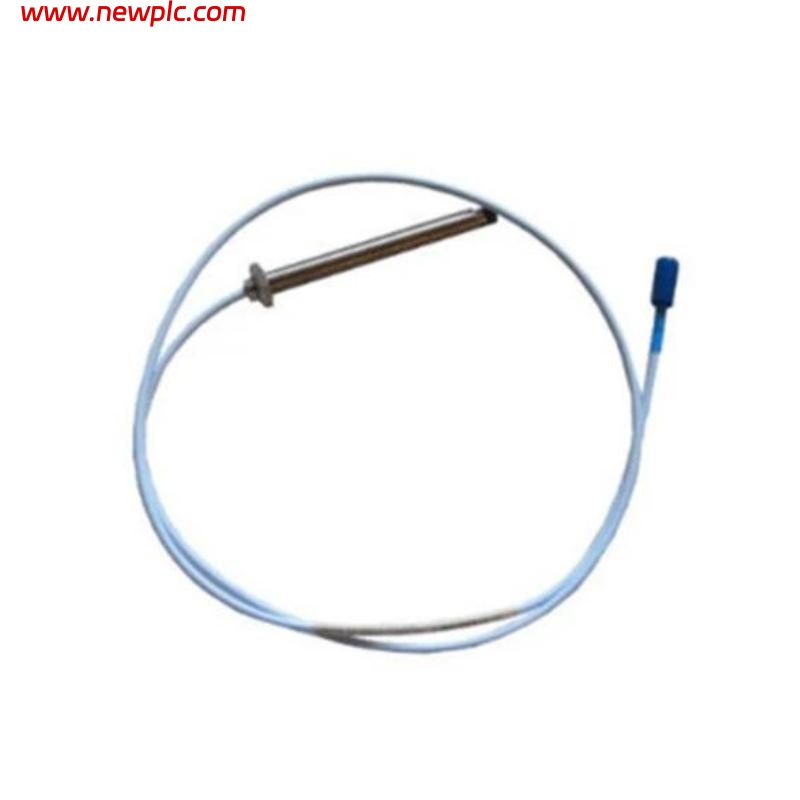

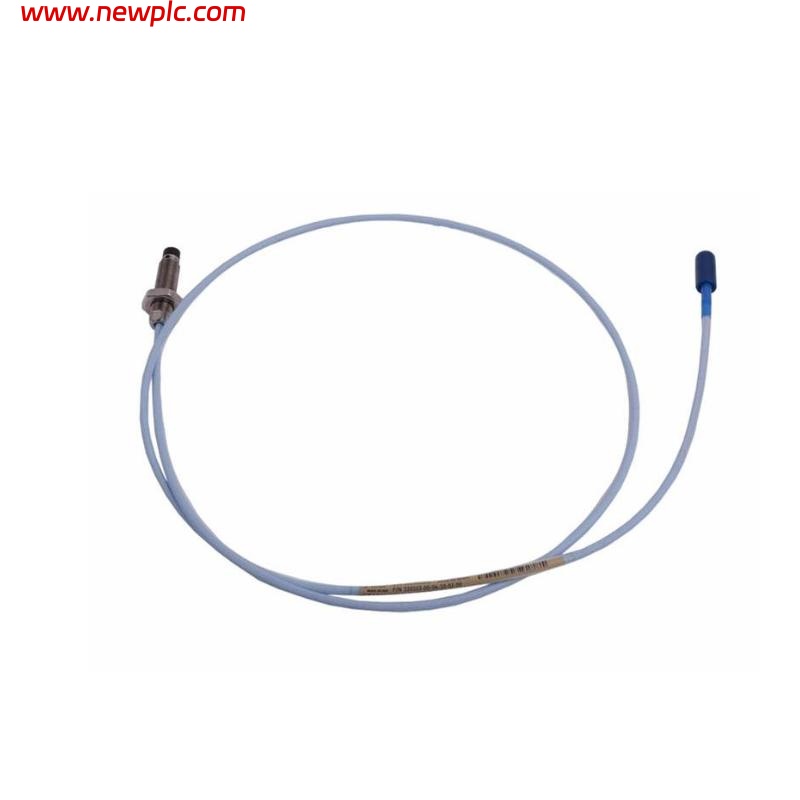

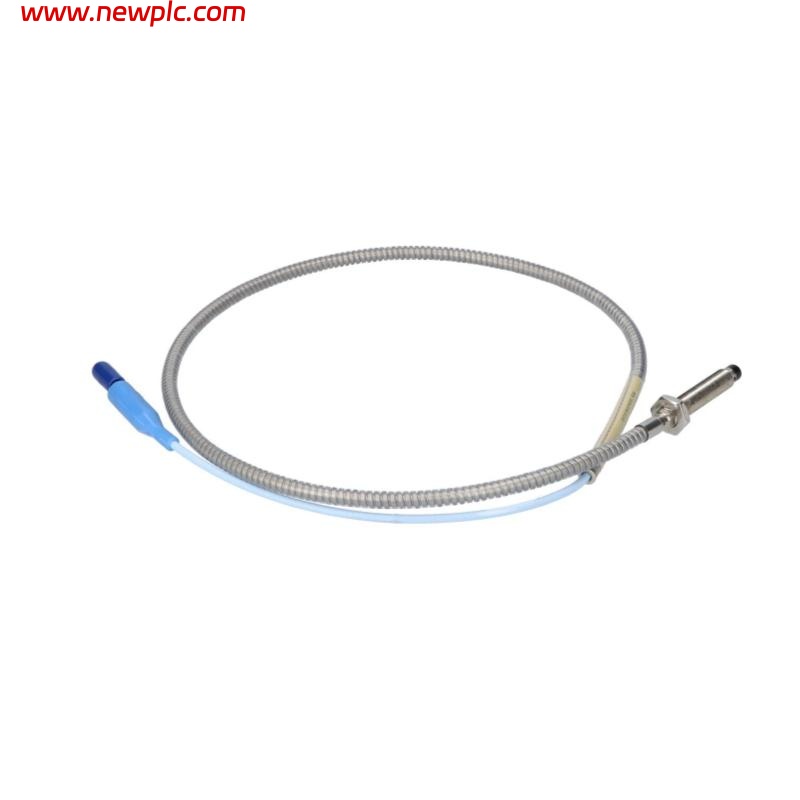

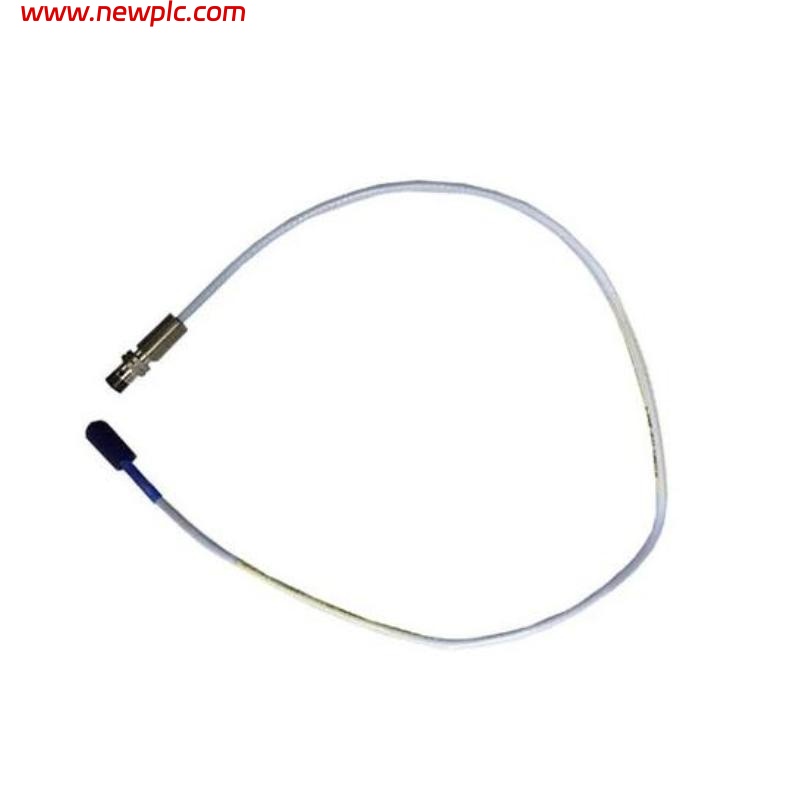

| Model | Bently Nevada 330104-00-04-50-11-00 |
| Type | 3300 XL Proximity Probe |
| Measurement Principle | Eddy-current, non-contact displacement and vibration measurement |
| Intended Application | Shaft vibration, displacement, and position monitoring |
| System Compatibility | 3300 XL Proximitor Sensor |
| Probe Tip Material | High-temperature PEEK or equivalent |
| Housing Material | Stainless steel |
| Operating Temperature Range | –35 °C to +177 °C |
| Sensitivity | Factory-matched calibrated system |
| Total System Length | 4 ft (probe + extension cable) |
| Linear Measurement Range | ~2.0 mm typical |
| Dimensions | Probe length ~50 mm |
| Weight | ~0.28 kg |
FAQ
FAQ
Q1: What is the main function of the 330104-00-04-50-11-00 probe?
A1: It measures shaft vibration, displacement, and position in rotating machinery.
Q2: What does “04” in the model number represent?
A2: It indicates a total calibrated system length of 4 feet.
Q3: Which proximitor unit is this probe designed to work with?
A3: It is compatible with the 3300 XL Proximitor Sensor.
Q4: Is this probe suitable for harsh industrial environments?
A4: Yes, its stainless-steel construction and high-temperature insulation support operation in demanding conditions.
Q5: What type of output does the probe generate?
A5: A voltage output proportional to the distance between the probe and the target surface.
Q6: Can it measure both static and dynamic conditions?
A6: Yes, it supports static position measurement and dynamic vibration monitoring.
Q7: What is the operating temperature capability of this probe?
A7: It functions reliably between –35 °C and +177 °C.
Q8: What are the physical dimensions and weight of the probe?
A8: Probe length is approximately 50 mm, and weight is about 0.28 kg.
