Technical Specifications
| Parameter | Description |
|---|---|
| Model | 330104-00-06-20-01-00 |

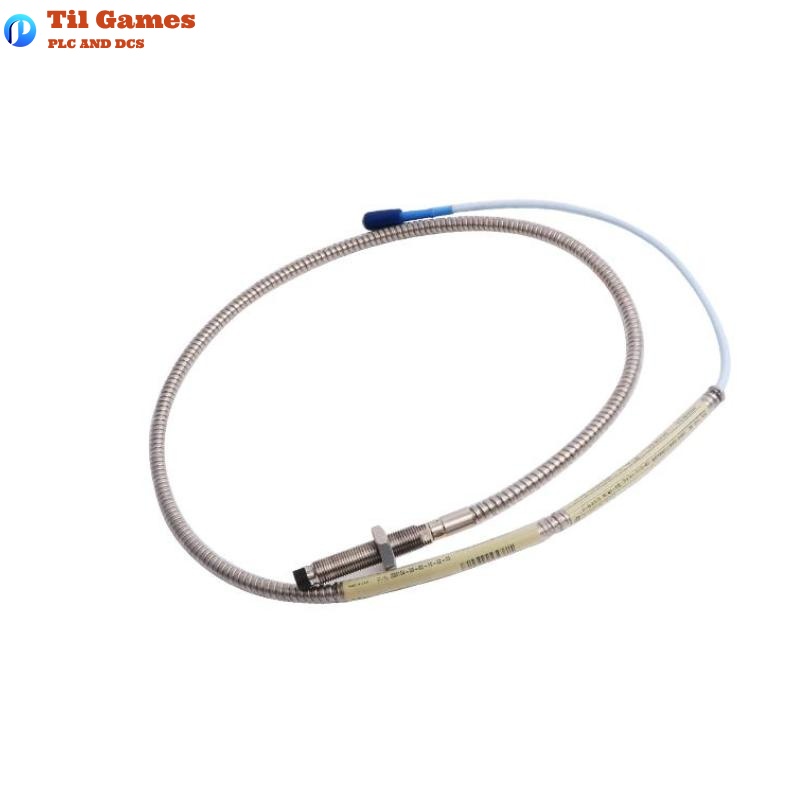

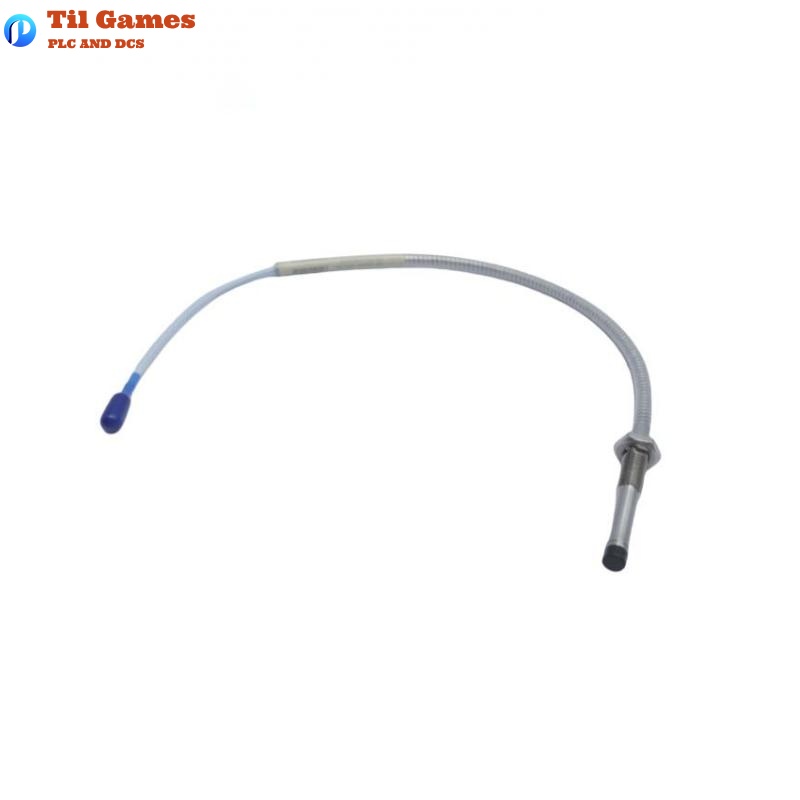

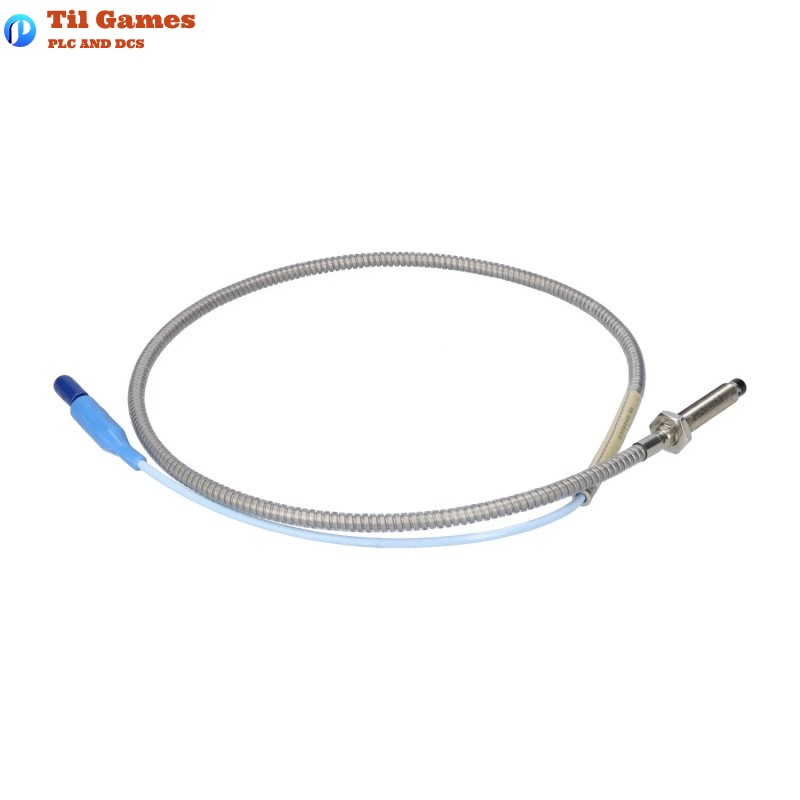

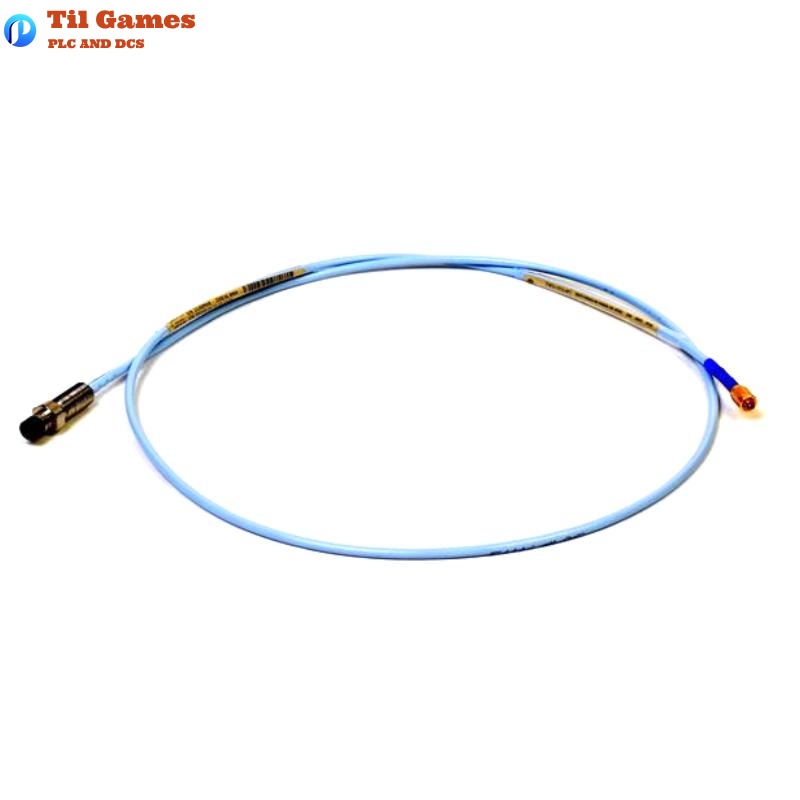

| Type | Proximity Probe, 8 mm XL Series |
| Thread | M10 x 1, with Armor |
| Cable Type | Standard 75Ω triaxial, FEP insulated |
| Connector Type | Miniature coaxial ClickLoc connector |
| Armor Type | Flexible AISI 302/304 SST with FEP jacket |
| Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | AISI 303 or 304 Stainless Steel |
| Cable Length (Total) | 2.0 meters |
| Weight (Total) | 0.646 kg |
| Temperature Range (Standard) | -52°C to +177°C |
| Temperature Range (ETR) | Up to +218°C (tip), +260°C (cable) |
| Probe Seal Type | Viton® O-ring |
| Pull Strength | 330 N (probe case to lead), 270 N (lead to connector) |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) ±5% (5m system) |
| Linear Range | 0.25 to 2.3 mm (10 to 90 mils) |
| Recommended Gap Setting | 1.27 mm (50 mils), ~-9 Vdc |
| Max Frequency Response | 10 kHz (+0/-3 dB) |
| Thread Engagement | Max 15 mm (M10 x 1 thread) |
| Compliance | API 670, CE, FCC, RoHS, SIL 2/3 |
FAQ
FAQ
Q1: What is the main application of the Bently Nevada 330104-00-06-20-01-00?
A1: It is primarily used for vibration and position monitoring on rotating machinery with fluid-film bearings.
Q2: Does this probe comply with API 670 standard?
A2: Yes, the 3300 XL 8 mm system fully meets the mechanical and performance specifications of API 670.
Q3: Is it suitable for high-temperature environments?
A3: Yes. The standard probe tolerates up to 177°C, and the ETR version supports up to 260°C.
Q4: What is the maximum thread engagement length?
A4: For M10 x 1 threads, the maximum engagement is 15 mm.
Q5: Does this part number include armor protection?
A5: Yes, the “06” in the model indicates the inclusion of stainless steel armor.
Q6: How much pull strength can the cable withstand?
A6: 330 N at the probe body and 270 N between the lead and connector.
Q7: What is the probe’s signal output specification?
A7: Output sensitivity is 7.87 V/mm (200 mV/mil) ±5% across the 0.25–2.3 mm linear range.
Q8: What does the 0.646 kg weight represent?
A8: This is the combined weight of the probe body and the 2.0-meter standard cable.
