Technical Specifications
| Item | Specification |
|---|---|

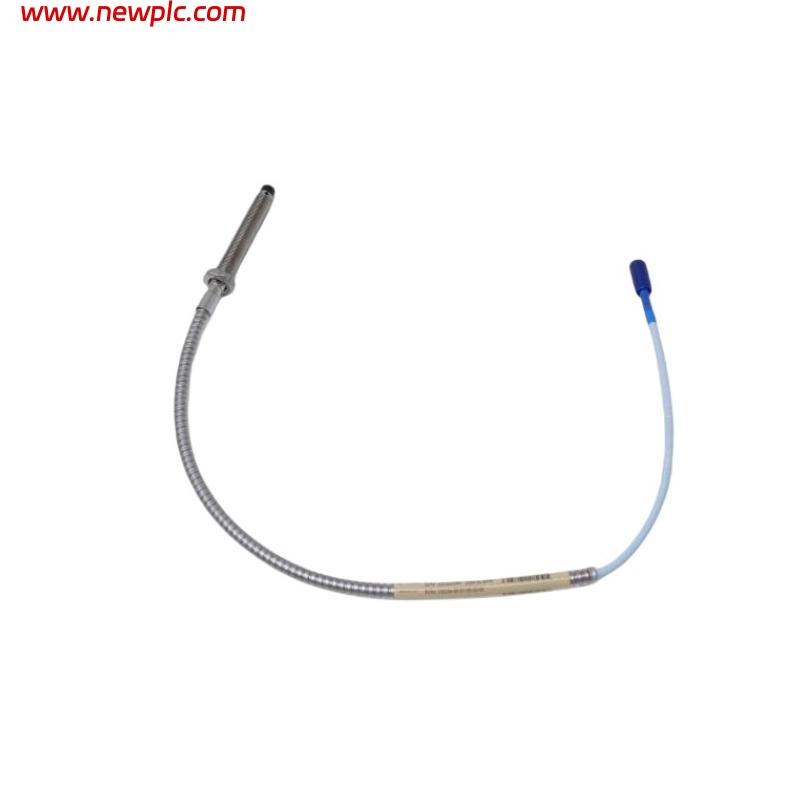

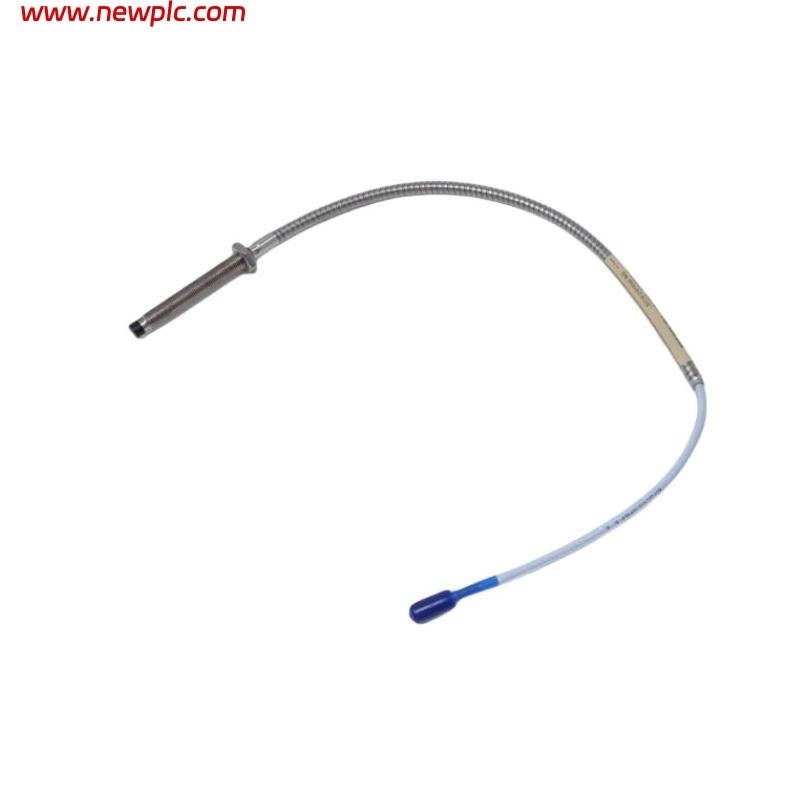

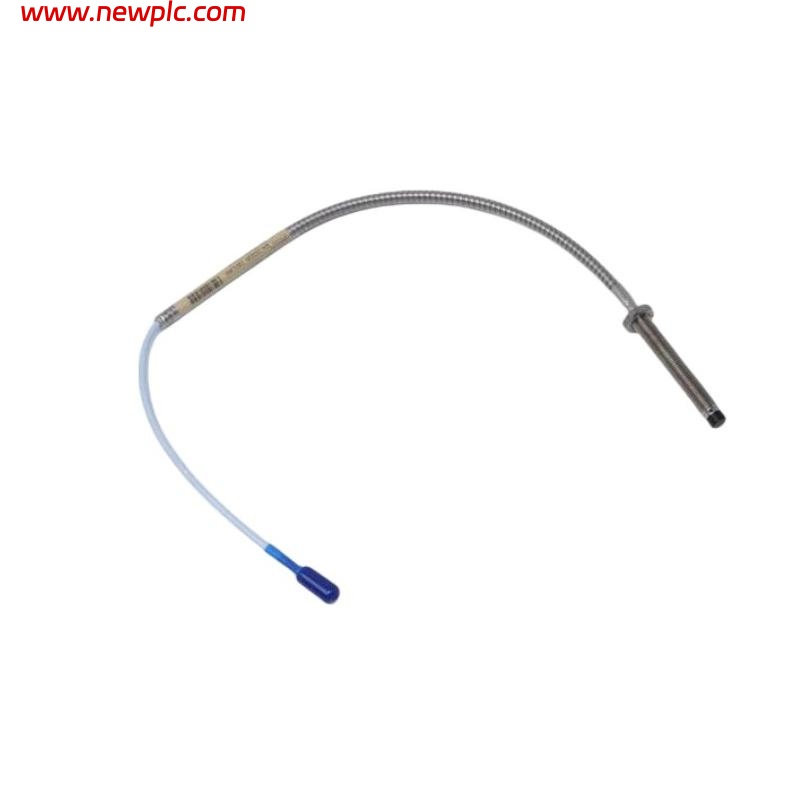

| Product Name | Bently Nevada 330104-00-07-05-01-05 3300 XL 8 mm Proximity Probe |
| Product Type | Proximity Probe |
| Application | Machinery condition monitoring, shaft displacement and vibration measurement |
| Probe Diameter | 8 mm |
| Probe Length | 70 mm |
| Mounting Thread | M10 × 1 |
| Measurement Range | 2 mm (80 mils) with 3300 XL Proximitor and Extension Cable |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Linear Range | 0.25 mm to 2.0 mm |
| Frequency Range | DC to 10 kHz |
| Temperature Range | -35°C to +177°C |
| Protection | Designed for harsh industrial environments |
| Compatibility | Works with 3300 XL Proximitor Sensor and Extension Cable |
| Dimensions | Total Length : 0.5 meter |
| Weight | 0.161 kg |
FAQ
FAQ
Q1: What is the main application of this probe?
A1: It is used for shaft displacement and vibration monitoring in rotating machinery, typically in protection and condition monitoring systems.
Q2: How does 330104-00-07-05-01-05 differ from other 3300 XL probes?
A2: The main difference lies in probe length, thread size, and cable configuration, while performance parameters remain the same.
Q3: What is the measurement range?
A3: The effective linear range is 0.25 mm to 2.0 mm.
Q4: What is the sensitivity?
A4: The sensitivity is 7.87 V/mm (200 mV/mil).
Q5: Does it require additional equipment?
A5: Yes, it must be used with the 3300 XL Proximitor Sensor and an extension cable.
Q6: What are the operating conditions?
A6: It operates in temperatures from -35°C to +177°C, suitable for harsh environments.
Q7: What are the dimensions and weight?
A7: Total Length : 0.5 meter, with a weight of about 0.161 kg.
Q8: How is it mounted?
A8: It is installed using an M10 × 1 thread into the machine monitoring location.
