Technical Specifications
| Parameter | Description |
|---|---|
| Model | Bently Nevada 330104-00-07-50-02-00 |

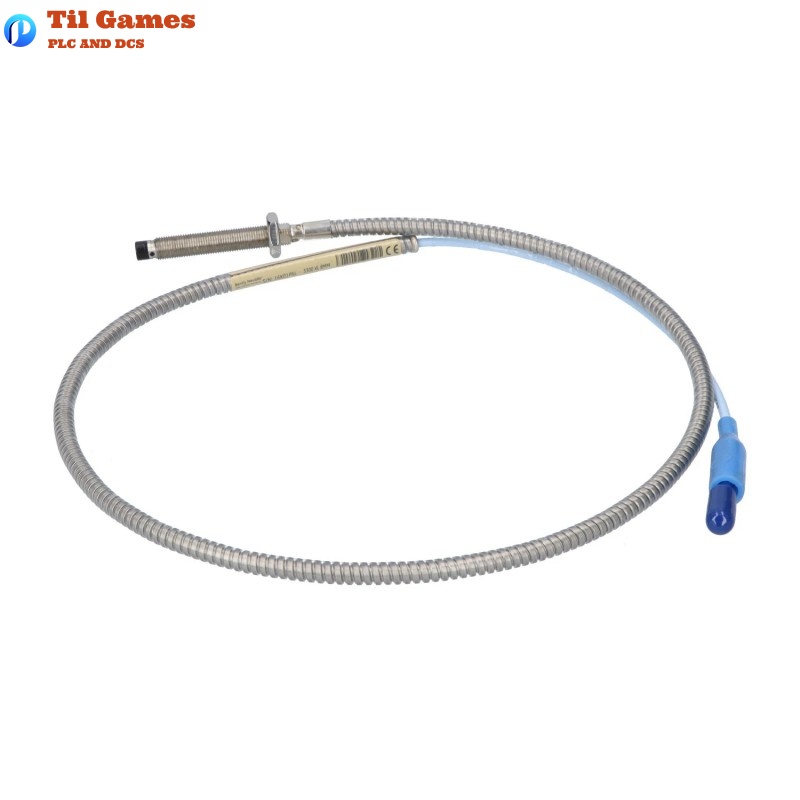

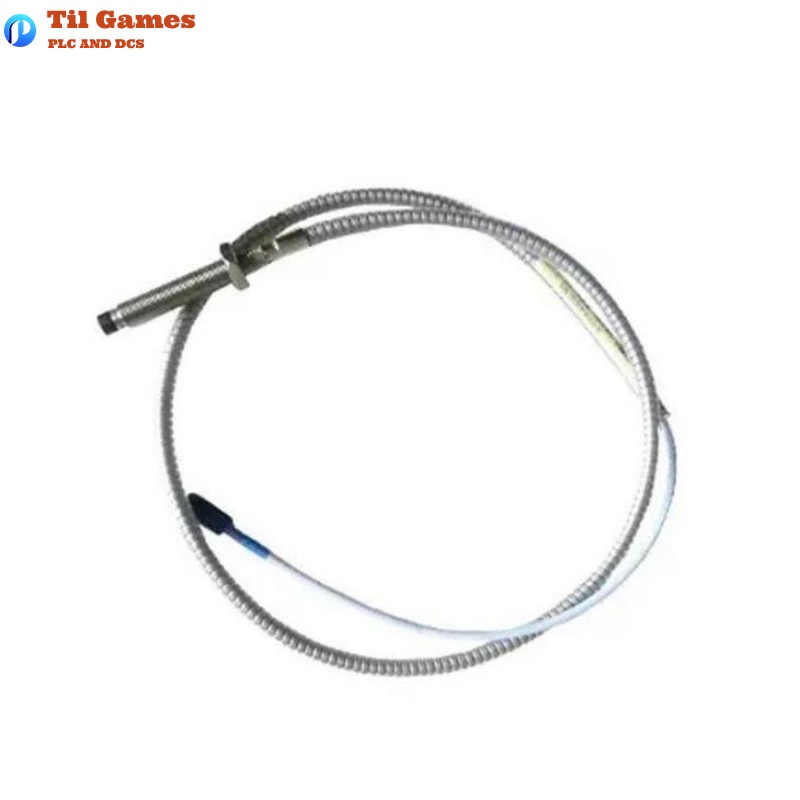

| Product Type | 3300 XL 8 mm Proximity Probe (M10 x 1 thread, with armor) |
| Application | Shaft vibration, position, and speed measurements |
| Total Length | 5.0 meters |
| Weight | 1.615 kg (approximate, including probe, cable, and sensor) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel |
| Probe Cable | 75Ω triaxial, FEP insulated; with optional FluidLoc and armor |
| Connector Type | Miniature ClickLoc coaxial (gold-plated brass or beryllium copper) |
| Cable Pull Strength | 330 N (probe tip to cable); 270 N (cable to extension connector) |
| Operating Temperature | -52°C to +177°C (Standard); up to +218°C for ETR model |
| Minimum Target Size | 15.2 mm diameter (flat target) |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Recommended Gap Setting | 1.27 mm (50 mils) corresponding to -9 VDC |
| Scale Factor (5 m system) | 7.87 V/mm ±5% (200 mV/mil) |
| Deviation from Best Fit Line | < ±0.025 mm (±1 mil) |
| Frequency Response | 0 to 10 kHz |
| Environmental Resistance | RFI/EMI hardened; corrosion-resistant connectors; IP54 compatible |
| Certifications | CE, RoHS, ATEX, IECEx, CSA, SIL2/SIL3 compliant |
FAQ
FAQ
Q1: What is the main application of the Bently Nevada 330104-00-07-50-02-00 probe?
A1: It is primarily used for vibration, position, and speed measurements in rotating machinery with fluid-film bearings.
Q2: What materials are used for the probe and connector?
A2: The probe case is stainless steel (AISI 303 or 304), and the connectors are gold-plated brass or beryllium copper.
Q3: What is the probe’s temperature operating range?
A3: The standard probe operates from -52°C to +177°C, while the ETR version can withstand up to +218°C.
Q4: How long is the cable and what is the total system length?
A4: This version includes a 5.0-meter cable; the total system length is 5.0 meters.
Q5: Is the probe interchangeable with other Bently Nevada systems?
A5: Yes, it is compatible with other 3300 XL and non-XL 5 mm and 8 mm system components.
Q6: What is the recommended installation torque for the probe?
A6: 11.2 N•m (100 in•lbf) for standard probes; 7.5 N•m (66 in•lbf) for reverse-mount versions.
Q7: Does it meet API 670 standards?
A7: Yes, it complies with API 670 for mechanical configuration, linearity, and performance.
Q8: What environmental protections are provided?
A8: It offers strong immunity to EMI/RFI, uses corrosion-resistant materials, and supports IP54-rated installations.
