Technical Specifications
| Item | Specification |
|---|---|
| Model | 330104-00-08-50-02-RU |

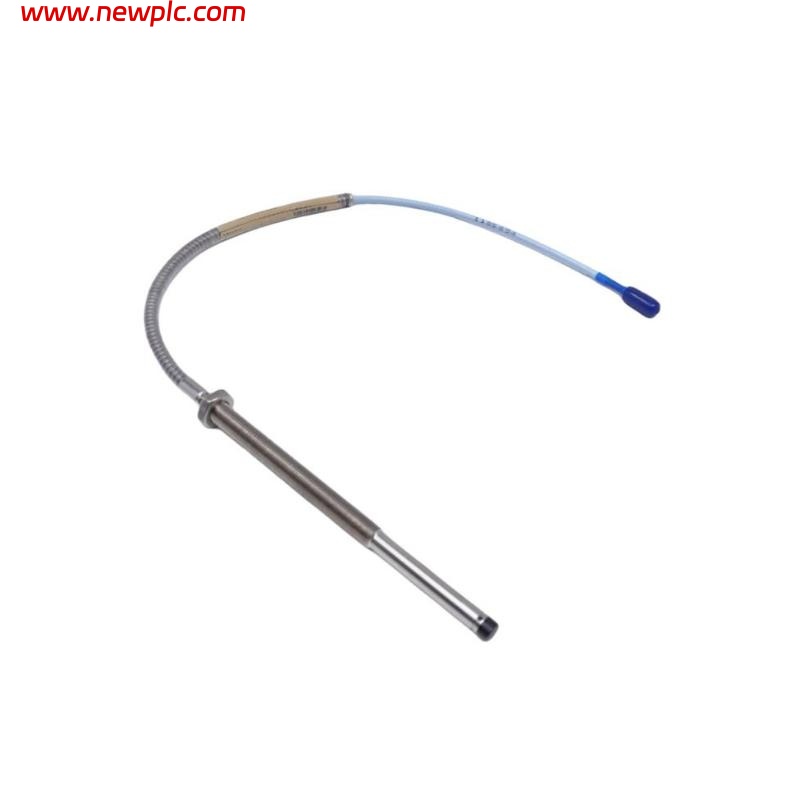

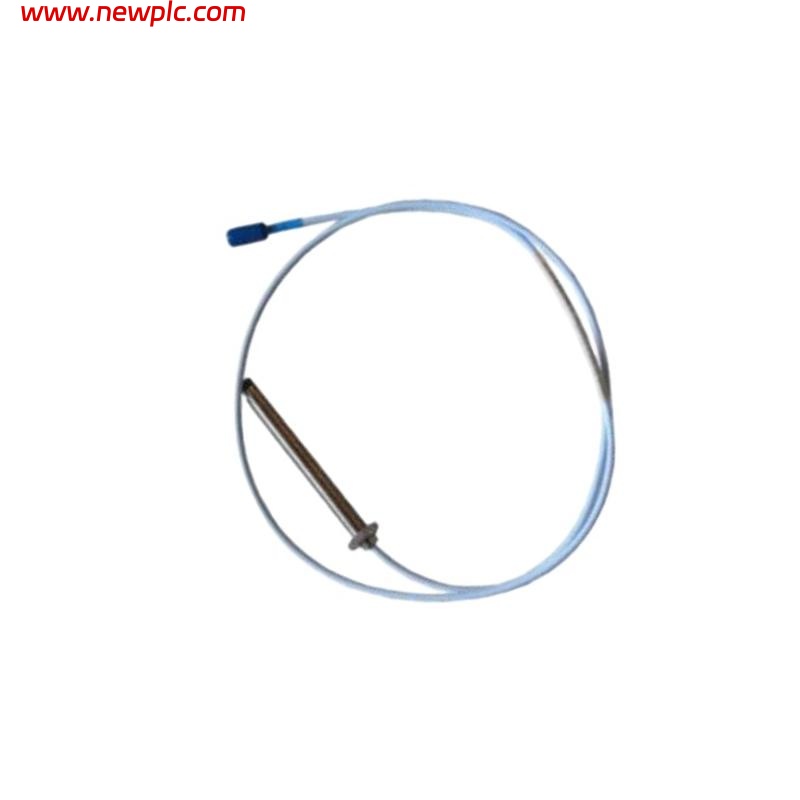

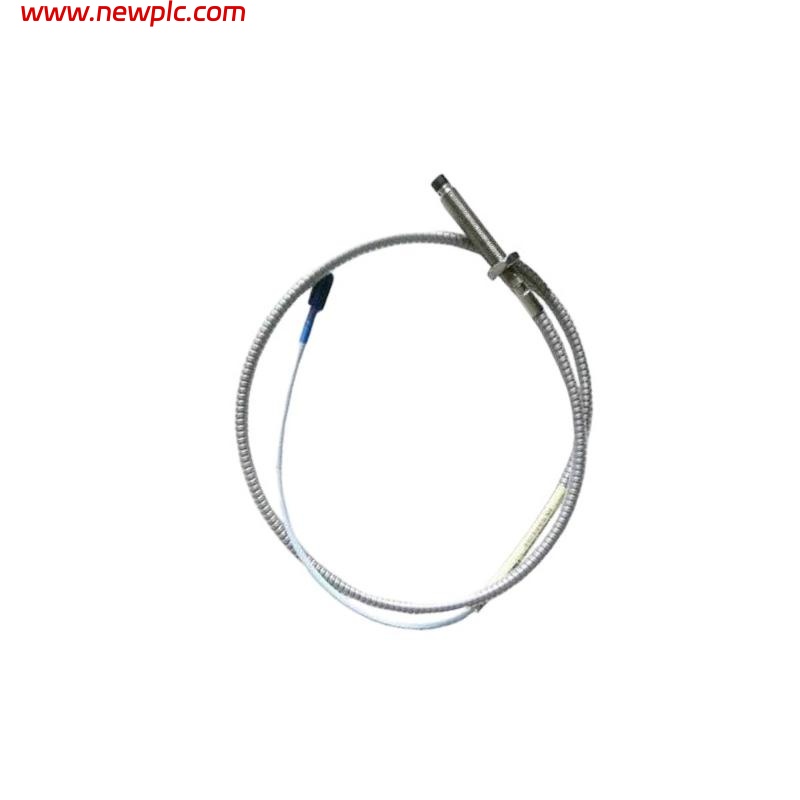

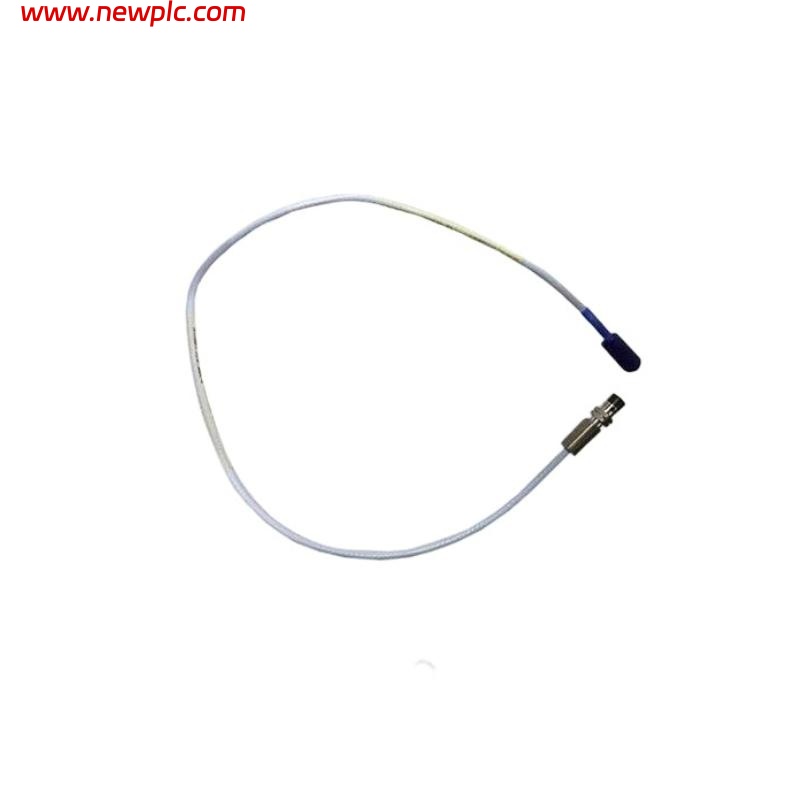

| Type | 8 mm 3300 XL Eddy-Current Proximity Probe |
| Unthreaded Length Option | 00 = 0 mm |
| Overall Case Length | 08 = 80 mm |
| Total Probe + Cable Length | 50 = 5.0 meters |
| Connector / Cable Type | 02 = Miniature coaxial connector with armor |
| Approvals / Agency Certification | RU = Russian compliance marking |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | Stainless Steel (AISI 303 or 304), armored construction |
| Operating Temperature Range | –52 °C to +177 °C |
| Output Principle / Application | Eddy-current proximity transducer for measuring shaft displacement |
| Typical Sensitivity / Linear Range | ~200 mV/mil (≈7.87 V/mm), linear range ~0.25–2.5 mm |
| Thread / Mounting | M10 × 1 metric thread |
| Dimensions | Probe case length 80 mm; standard 8 mm tip diameter |
| Weight | ~0.85 kg (with 5 m armored cable) |
FAQ
FAQ
Q1: What is the main function of the 330104-00-08-50-02-RU probe?
It is used for non-contact measurement of shaft position and displacement in rotating machinery.
Q2: What does each part of the model number represent?
“00” = 0 mm unthreaded section; “08” = 80 mm case length; “50” = 5.0 m cable; “02” = armored miniature connector; “RU” = Russian compliance marking.
Q3: What materials are used in this probe?
It features a PPS probe tip and a stainless-steel armored housing for durability.
Q4: What temperature range can the probe operate in?
It is suitable for environments ranging from –52 °C to +177 °C.
Q5: What kind of output does the probe provide?
When paired with a compatible 3300 XL Proximitor, it provides a voltage output proportional to the probe-to-target distance.
Q6: Does this model support hazardous-area installation?
It carries RU certification; suitability depends on local installation requirements and regulations.
Q7: What is the sensitivity of the measurement system?
The system typically offers ~200 mV/mil (≈7.87 V/mm) across a linear range of roughly 0.25–2.5 mm.
Q8: What are the size and weight specifications?
It has an 80 mm case length, an 8 mm tip diameter, and weighs about 0.85 kg with its 5-meter armored cable.
