Technical Specifications
| Item | Specification |
|---|---|
| Model | 330104-00-11-90-02-00 |

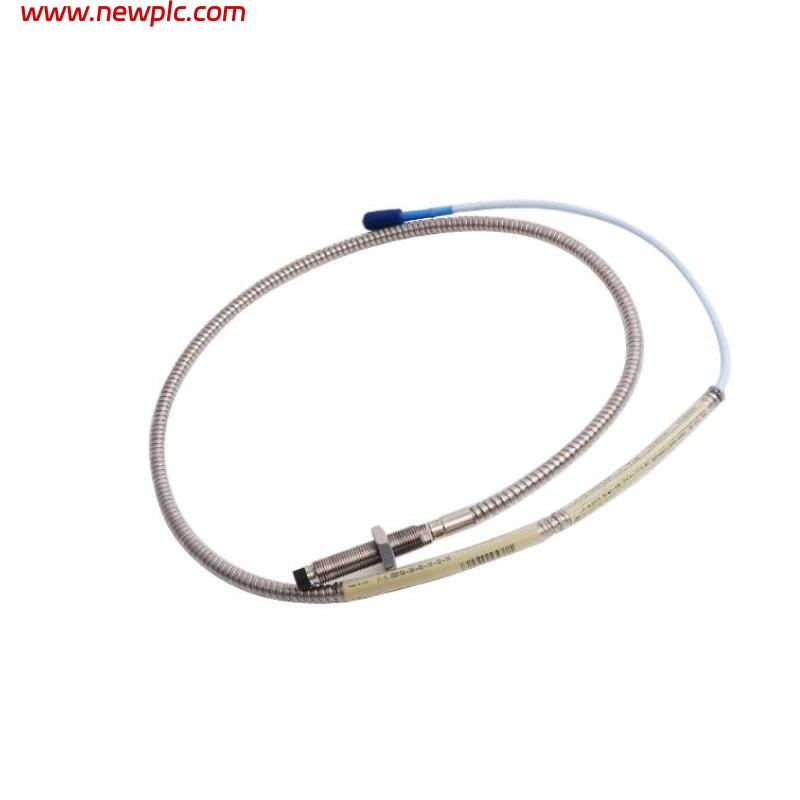

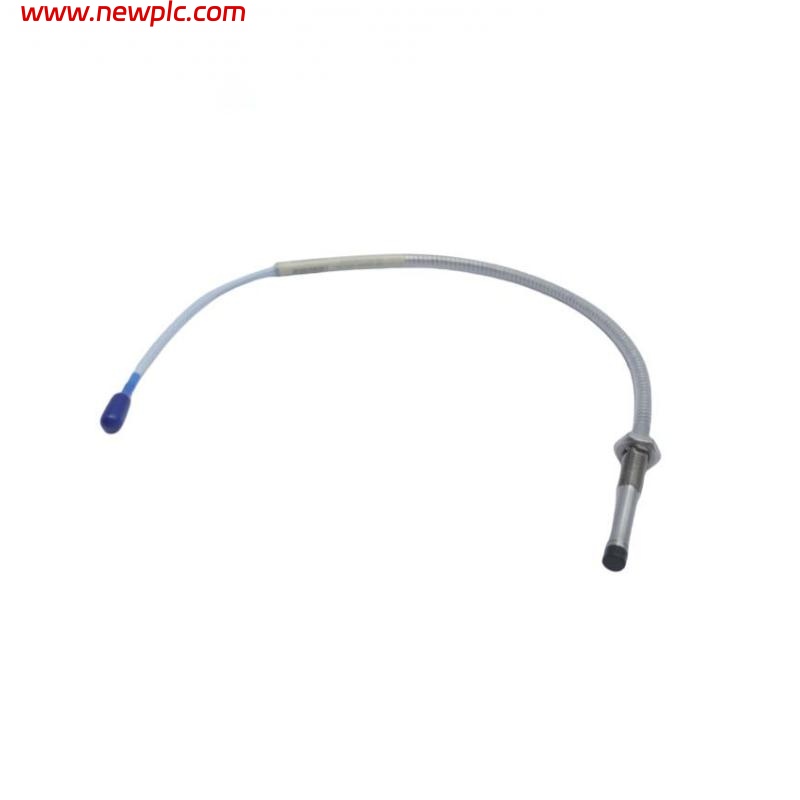

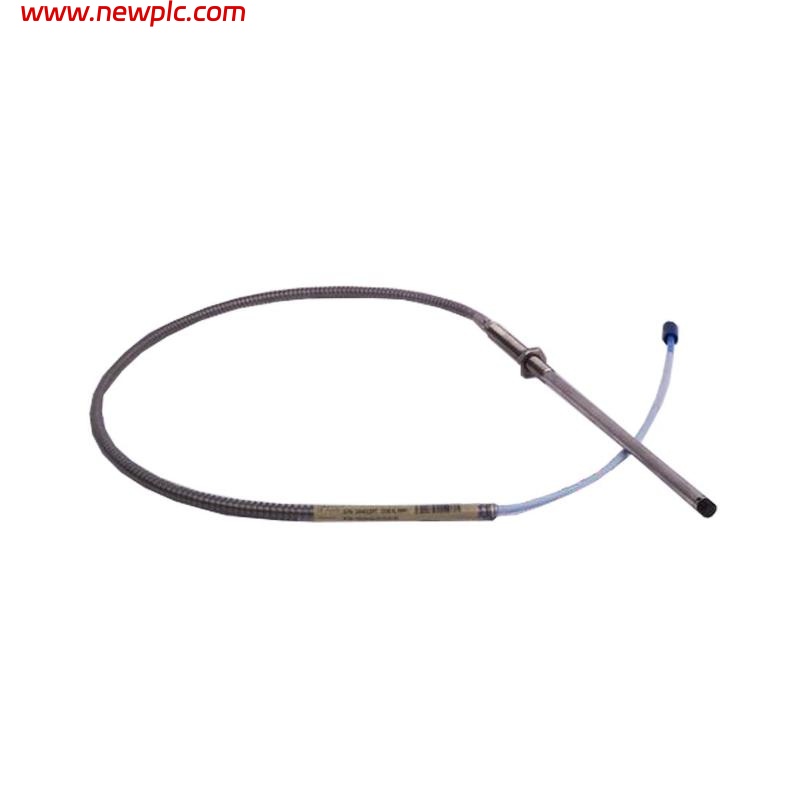

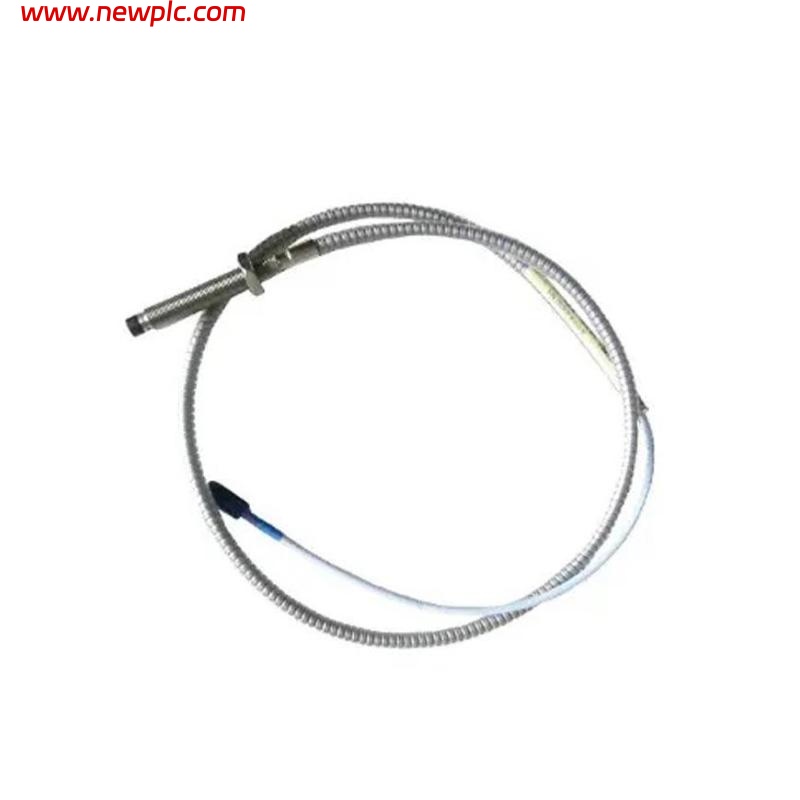

| Type | 8 mm 3300 XL Eddy-Current Proximity Probe |
| Unthreaded Length Option | 00 = 0 mm |
| Overall Case Length | 11 = 110 mm |
| Total Probe + Cable Length | 90 = 9.0 meters |
| Connector / Cable Type | 02 = Miniature coaxial connector with armor |
| Approvals / Agency Certification | 00 = Standard industrial (non-hazardous area) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | Stainless Steel (AISI 303 or 304), armored construction |
| Operating Temperature Range | –52 °C to +177 °C |
| Output Principle / Application | Eddy-current proximity measurement for shaft position and displacement |
| Typical Sensitivity / Linear Range | ~200 mV/mil (≈7.87 V/mm), linear range ~0.25–2.5 mm |
| Thread / Mounting | M10 × 1 metric thread |
| Dimensions | Probe case length 110 mm; 8 mm tip diameter |
| Weight | ~1.8 kg (with 9 m armored cable) |
FAQ
FAQ
Q1: What is the main function of the 330104-00-11-90-02-00 probe?
It is used for non-contact measurement of shaft displacement and position in rotating machinery such as turbines, pumps, and compressors.
Q2: What does each segment of the model number represent?
“00” = unthreaded length 0 mm; “11” = 110 mm probe case; “90” = 9.0 m cable; “02” = armored miniature connector; “00” = standard industrial compliance.
Q3: What materials are used in the probe construction?
The probe tip is PPS, and the housing is stainless steel with armored construction for durability in industrial environments.
Q4: What is the operating temperature range for this probe?
It operates reliably between –52 °C and +177 °C.
Q5: What type of output does the probe provide?
Paired with a compatible 3300 XL Proximitor, it generates a voltage proportional to the distance between the probe tip and the shaft.
Q6: Is this probe suitable for hazardous-area applications?
No, the “00” suffix indicates standard industrial use without hazardous-area certification.
Q7: What is the typical sensitivity of this probe?
The system typically delivers ~200 mV/mil (≈7.87 V/mm) with a linear measurement range of 0.25–2.5 mm.
Q8: What are the size and weight specifications?
The probe has a 110 mm case length, 8 mm tip diameter, and weighs approximately 1.8 kg including the 9 m armored cable.
