Technical Specifications
| Item | Specification |
|---|---|
| Model | 330104-00-13-50-02-05 |

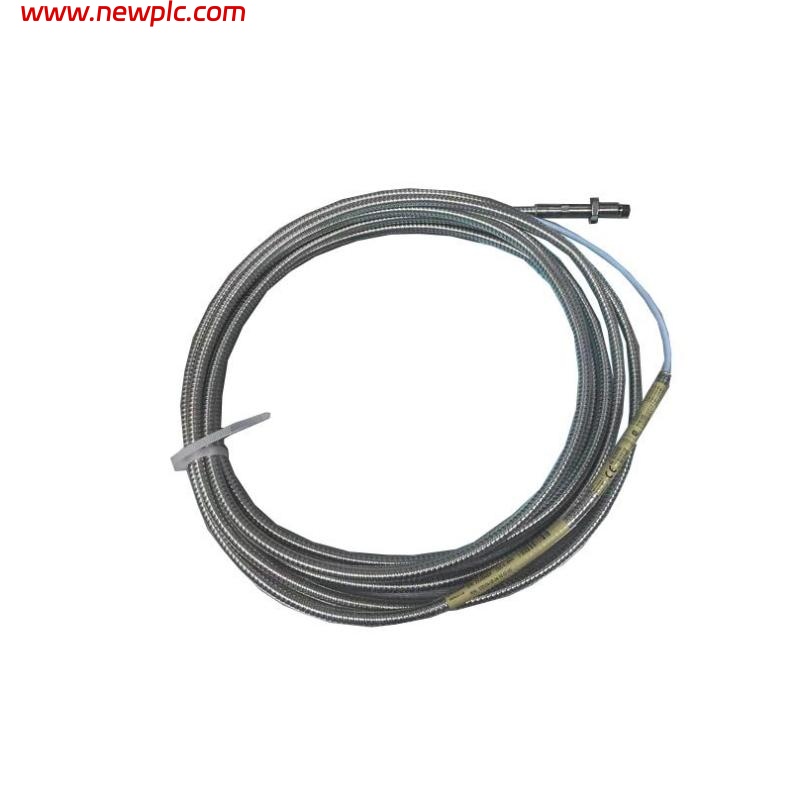

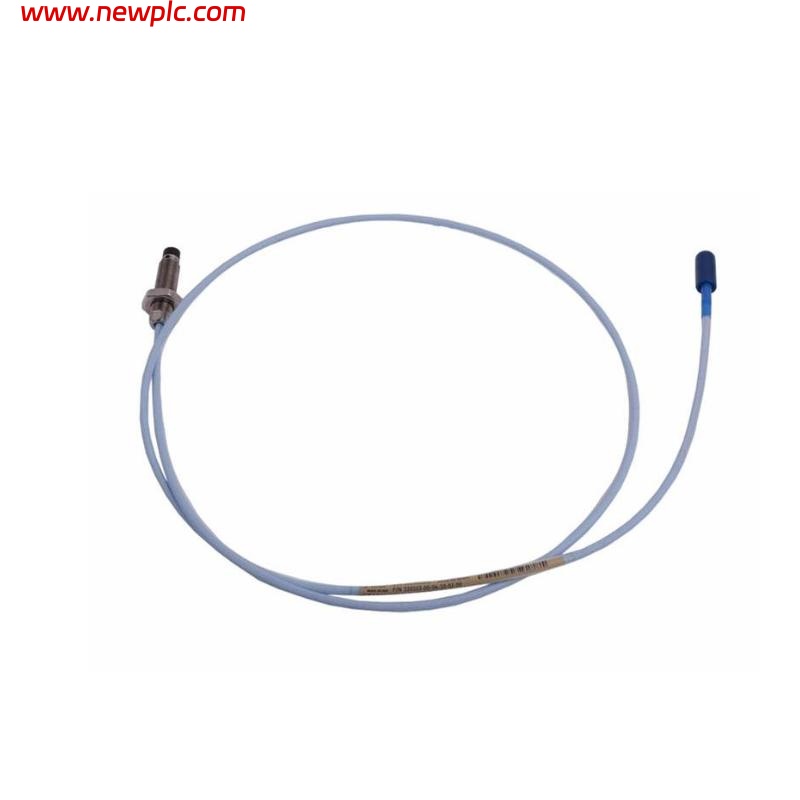

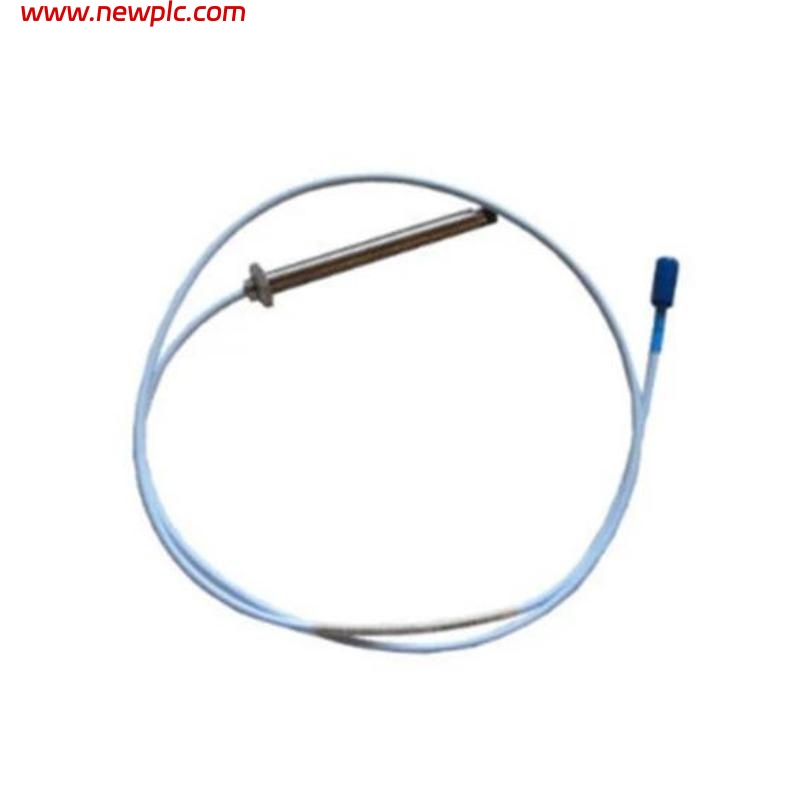

| Type | 8 mm 3300 XL Eddy-Current Proximity Probe |
| Unthreaded Length Option | 00 = 0 mm |
| Overall Case Length | 13 = 130 mm |
| Total Probe + Cable Length | 50 = 5.0 meters |
| Connector / Cable Type | 02 = Miniature coaxial connector with armor |
| Approvals / Agency Certification | 05 = CSA, ATEX, IECEx (hazardous-area certified) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | Stainless Steel (AISI 303 or 304), armored construction |
| Operating Temperature Range | –52 °C to +177 °C |
| Output Principle / Application | Eddy-current proximity measurement for shaft position and displacement |
| Typical Sensitivity / Linear Range | ~200 mV/mil (≈7.87 V/mm), linear range ~0.25–2.5 mm |
| Thread / Mounting | M10 × 1 metric thread |
| Dimensions | Probe case length 130 mm; 8 mm tip diameter |
| Weight | ~0.95 kg (with 5 m armored cable) |
FAQ
FAQ
Q1: What is the primary application of the 330104-00-13-50-02-05 probe?
It is used for non-contact measurement of shaft displacement and position in rotating machinery such as turbines, compressors, and pumps.
Q2: What does each part of the model number represent?
“00” = unthreaded length 0 mm; “13” = 130 mm case length; “50” = 5.0 m cable; “02” = armored miniature connector; “05” = CSA/ATEX/IECEx approvals.
Q3: What materials are used in the probe construction?
The probe tip is PPS, and the housing is stainless steel with armored construction for durability.
Q4: What is the operating temperature range?
It operates reliably from –52 °C to +177 °C.
Q5: What type of output does the probe provide?
When paired with a compatible 3300 XL Proximitor, it produces a voltage proportional to the gap between the probe tip and the shaft.
Q6: Is this probe suitable for hazardous-area applications?
Yes, the “05” suffix indicates compliance with CSA, ATEX, and IECEx standards.
Q7: What is the typical measurement sensitivity?
Typical sensitivity is ~200 mV/mil (≈7.87 V/mm) with a linear range of 0.25–2.5 mm.
Q8: What are the physical size and weight specifications?
The probe has a 130 mm case length, 8 mm tip diameter, and weighs approximately 0.95 kg including the 5 m armored cable.
