Technical Specifications
| Parameter | Specification |
|---|---|

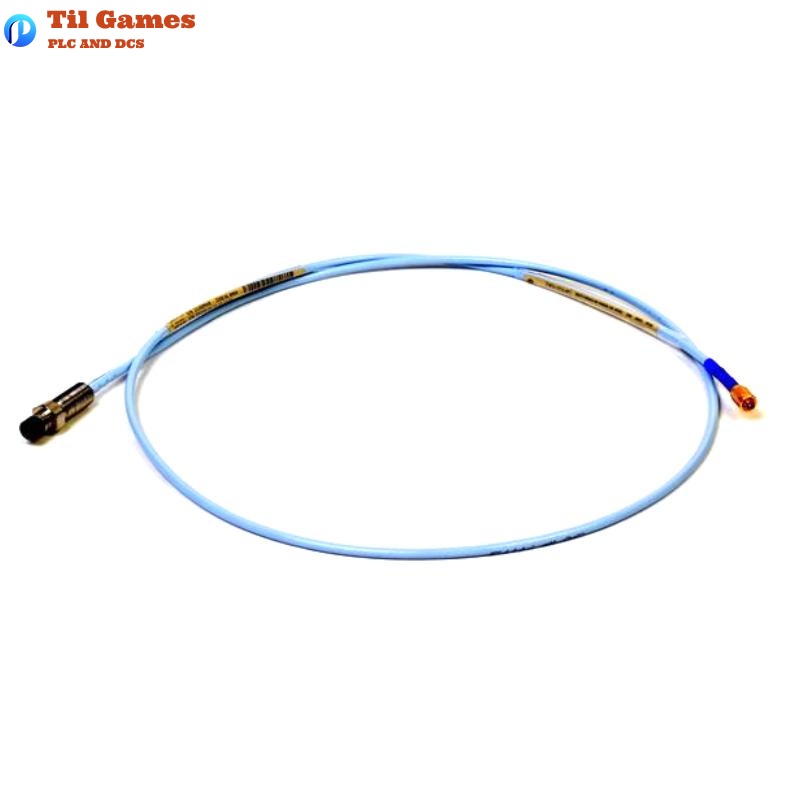

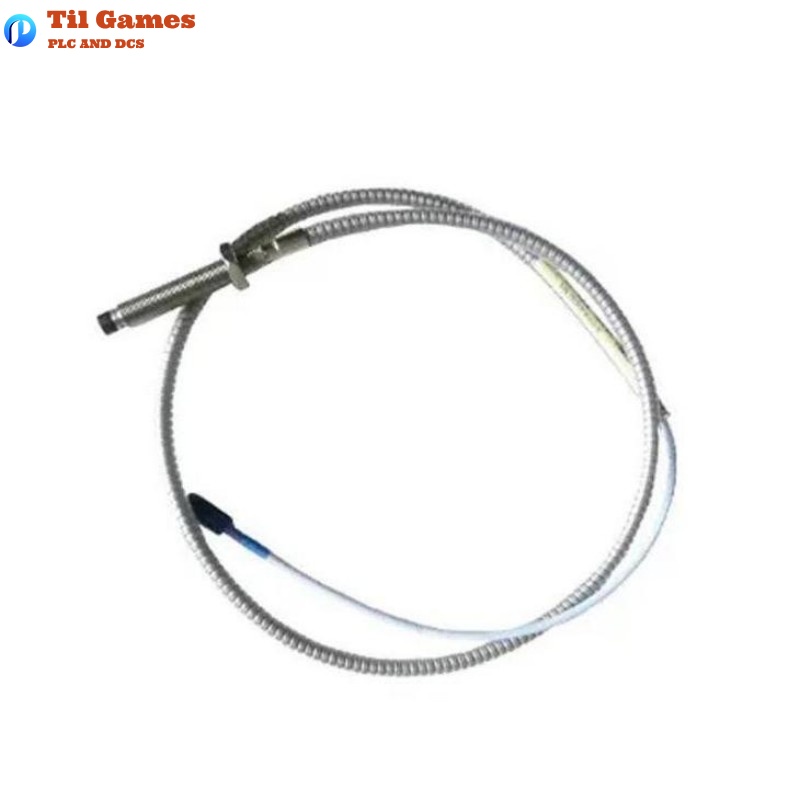

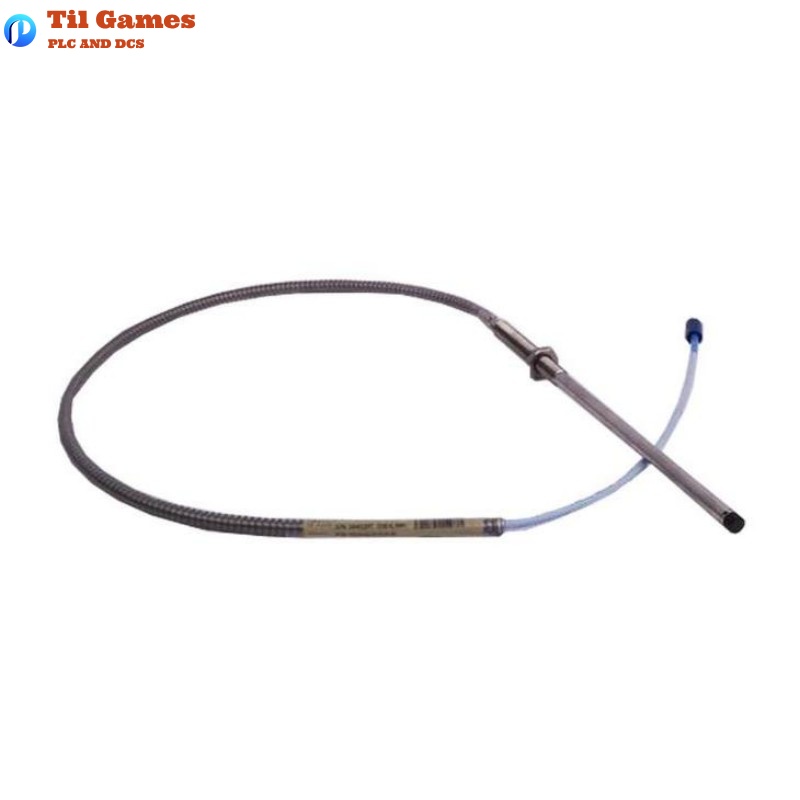

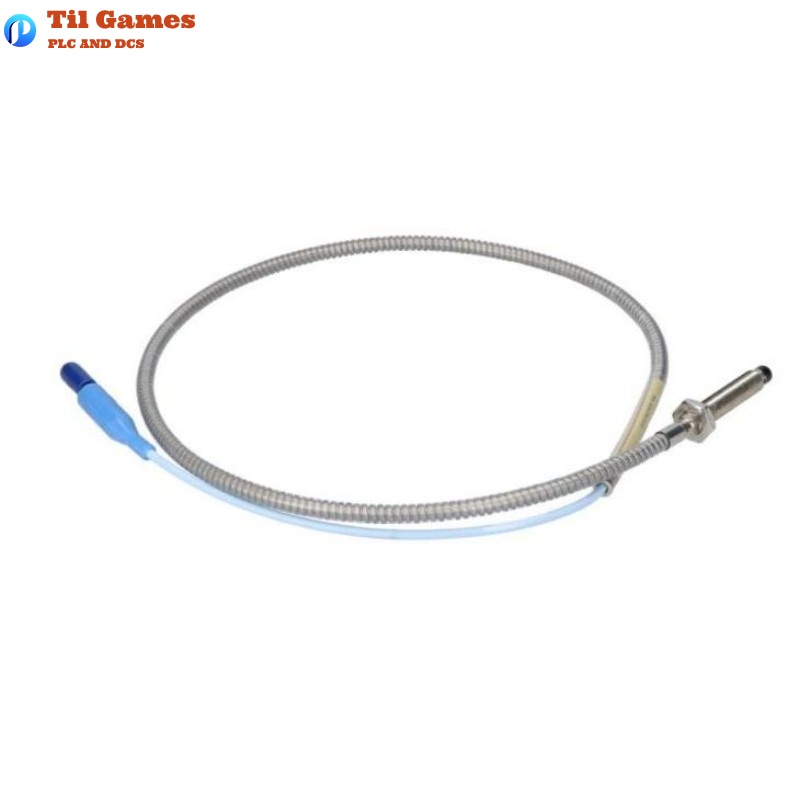

| Model | Bently Nevada 330104-00-15-05-02-00 3300 XL 8 mm Proximity Probe |
| Probe Tip Diameter | 8.0 mm (0.31 in) |
| Probe Thread Type | M10 x 1 thread |
| Probe Material | Polyphenylene Sulfide (PPS) tip, Stainless Steel (AISI 303/304) case |
| Probe Cable | 75 Ω triaxial FEP insulated, with ClickLoc connector |
| Total Length | 0.5 meter |
| Weight | 0.162 kg (0.357 lb) |
| Maximum Temperature (Standard) | -52°C to +177°C (-62°F to +350°F) |
| Maximum Temperature (ETR Option) | Probe tip: +218°C, Cable: +260°C |
| Vibration Range | 2 mm (80 mils) linear range |
| Recommended Gap | -9 VDC ≈ 1.27 mm (50 mils) |
| Typical Output Sensitivity | 7.87 V/mm (200 mV/mil) ±5% (standard system) |
| Supply Voltage Range | -17.5 VDC to -26 VDC |
| Maximum Power Consumption | 12 mA max |
| Cable Pull Strength | 330 N (75 lbf) between probe and cable |
| Minimum Shaft Diameter | 50.8 mm (2 in) |
| Recommended Minimum Shaft Diameter | 76.2 mm (3 in) |
| EMC Compliance | EN 61000-6-2, EN 61000-6-4 |
| RoHS Compliance | RoHS Directive 2011/65/EU |
| Hazardous Area Ratings | ATEX/IECEx, CSA, Class I Div 2, Zone 0/2 |
FAQ
FAQ
Q1: What is the total length and weight of the 330104-00-15-05-02-00 probe?
A1: The total length is 0.5 meters, and the typical weight is approximately 0.162 kg.
Q2: What is the purpose of the 330104 proximity probe?
A2: It is used for non-contact measurement of vibration and shaft position in rotating machinery.
Q3: What is the linear range of the probe?
A3: The linear measurement range is 2 mm (80 mils), from 0.25 mm to 2.3 mm.
Q4: What is the recommended installation gap for vibration measurement?
A4: Approximately -9 VDC output, equivalent to a 1.27 mm (50 mils) gap.
Q5: Can the probe operate in high-temperature environments?
A5: Yes. The standard version operates up to +177°C, and the ETR version supports up to +218°C for the probe tip.
Q6: Is the connector tool-free?
A6: Yes, the ClickLoc connectors require only finger-tight torque and click when fully secured.
Q7: Is the 330104 probe compatible with older Bently Nevada systems?
A7: Yes, it is backward compatible with non-XL 3300 5 mm and 8 mm systems.
Q8: Does it support hazardous area certifications?
A8: Yes, it meets ATEX, IECEx, and CSA standards for use in hazardous zones (Zone 0, 1, 2 and Class I, Div 2).
