Technical Specifications
| Parameter | Description |
|---|---|
| Model | 330104-00-15-10-02-05 |

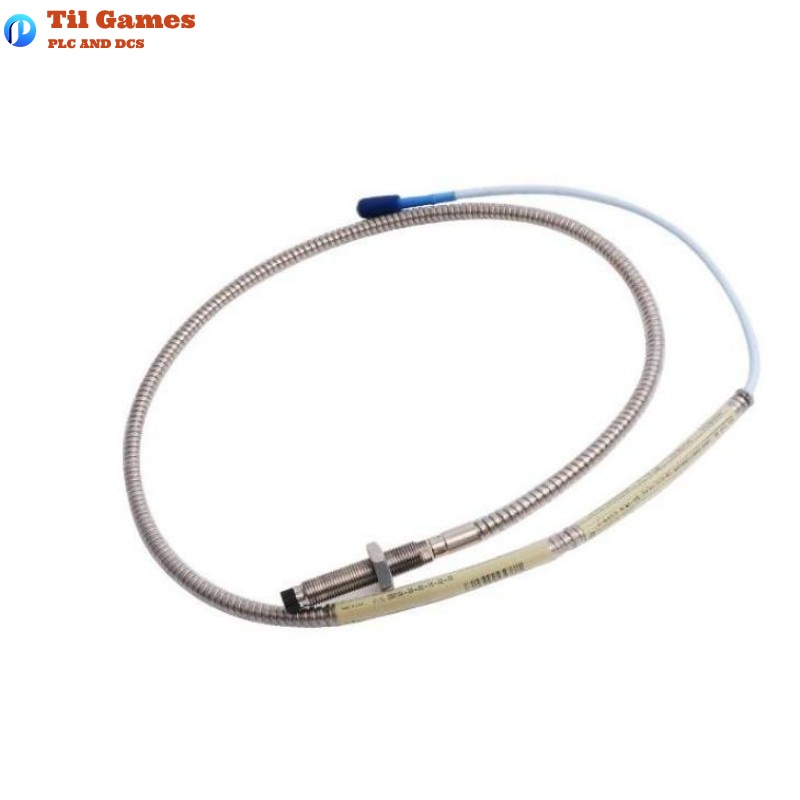

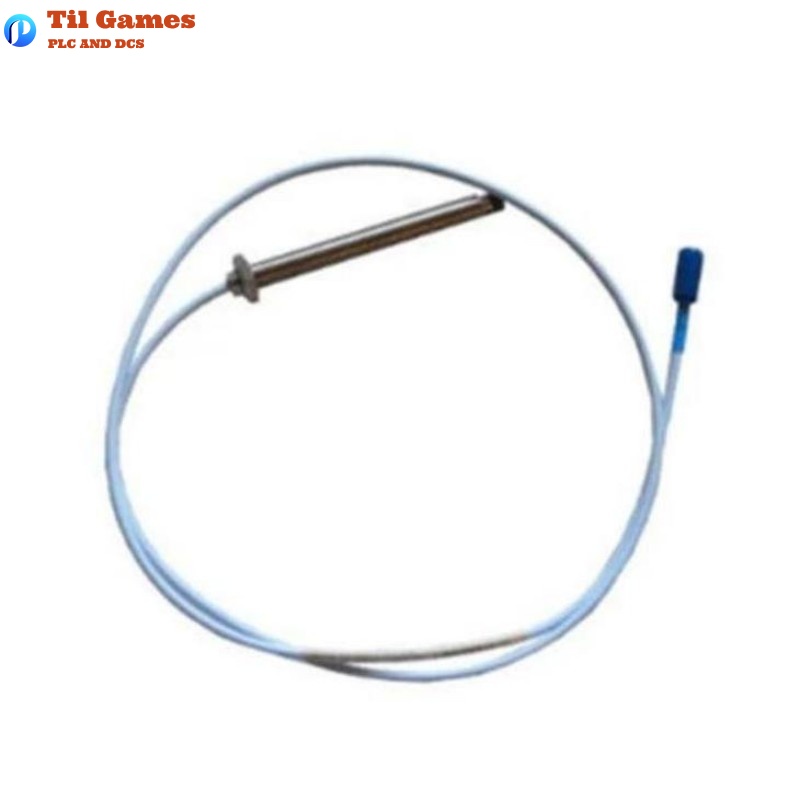

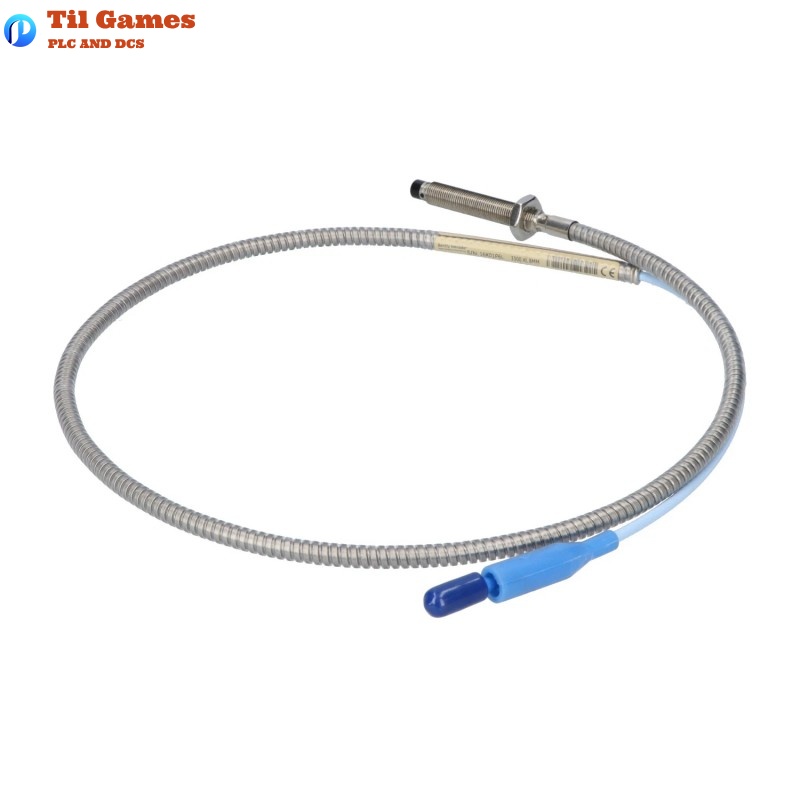

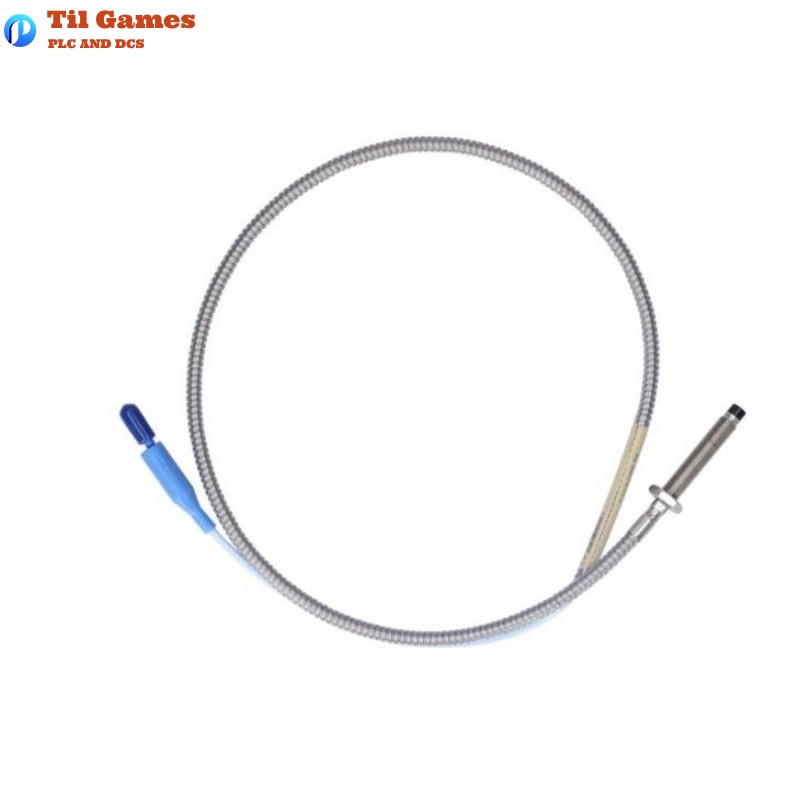

| Probe Type | 8 mm proximity probe, armored |
| Thread Size | M10 x 1 |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | Stainless Steel AISI 303 or 304 |
| Cable Type | Triaxial, 75Ω, FEP insulated |
| Connector Type | Miniature coaxial ClickLoc with protector |
| Operating Temperature Range | –52°C to +177°C |
| Storage Temperature Range | –52°C to +177°C |
| Maximum Pressure Seal Capability | Viton® O-ring seal, not pressure tested by default |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Probe Case Torque (Recommended) | 7.5 N•m (66 in•lbf) |
| System Accuracy | ±0.025 mm (±1 mil) over linear range with 1 m probe |
| Linear Range | 2 mm (80 mils): from 0.25 mm to 2.3 mm |
| Sensitivity | 7.87 V/mm (200 mV/mil) ± 5% (1 m system) |
| Frequency Response | 0 to 10 kHz, +0, -3 dB with up to 305 m field wiring |
| Minimum Target Size | 15.2 mm (0.6 in) diameter (flat surface) |
| Shaft Diameter (Recommended) | ≥ 76.2 mm (3 in) |
| Environmental Protection | Suitable for hazardous areas, ATEX, IECEx, CSA approvals available |
FAQ
FAQ
Q1: What is the typical application of the 330104-00-15-10-02-05 proximity probe?
A1: It is used primarily for measuring vibration and shaft position on fluid-film bearing machines, and for Keyphasor and speed monitoring.
Q2: Does this probe comply with API 670 specifications?
A2: Yes, when used with a standard 5-meter system, it fully complies with API 670 for linear range, accuracy, and mechanical configuration.
Q3: Is component matching or bench calibration required before installation?
A3: No, all 3300 XL 8 mm system components are fully interchangeable and factory-calibrated to AISI 4140 steel. No field matching is needed.
Q4: Is the system resistant to radio frequency or electromagnetic interference?
A4: Yes, the probe and sensor are highly immune to RFI/EMI and can be installed in fiberglass or plastic enclosures without shielding.
Q5: What are the dimensions and weight of this model?
A5: The total length is 1.0 meter, and the system weight is approximately 0.323 kg.
Q6: Can I use this probe in oil-prone environments?
A6: Yes, it is available with a FluidLoc cable option to prevent fluid ingress through the cable interior.
Q7: What torque is recommended during installation?
A7: The recommended torque for the probe case is 7.5 N•m (66 in•lbf) to ensure proper thread engagement without over-tightening.
Q8: Is this probe suitable for high-temperature applications?
A8: Yes, the standard model operates up to 177°C. For environments exceeding this, use the Extended Temperature Range (ETR) version rated up to 218°C.
