Technical Specifications
| Item | Specification |
|---|---|
| Model | 330104-00-24-50-02-00 |

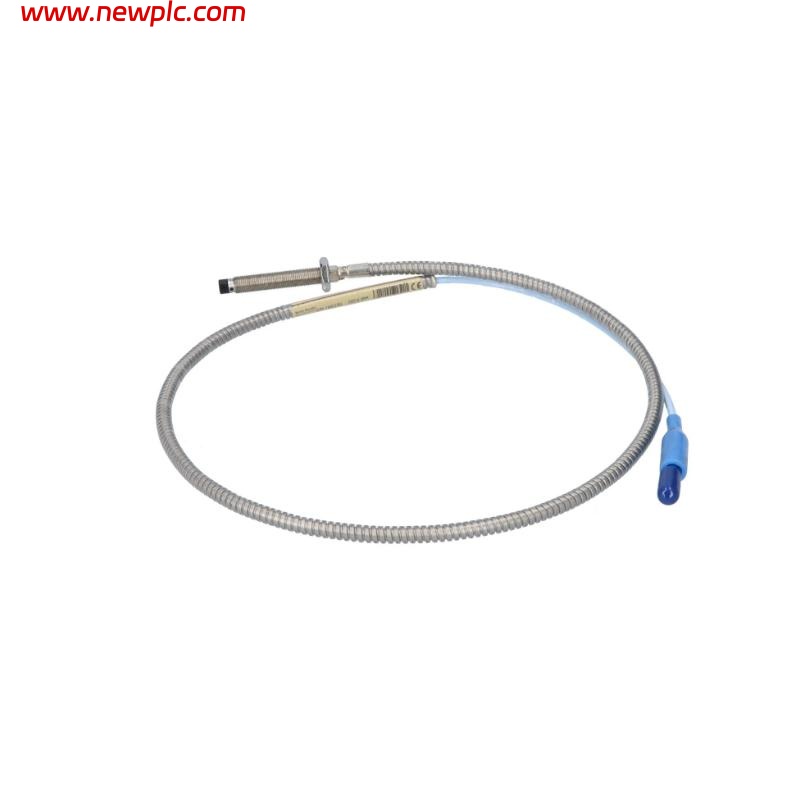

| Type | 8 mm 3300 XL Eddy-Current Proximity Probe |
| Unthreaded Length Option | 00 = 0 mm |
| Probe Case Length | 24 = 240 mm |
| Probe + Cable Total Length | 50 = 5.0 meters |
| Connector / Cable Option | 02 = Miniature coaxial connector with armor |
| Approvals / Certification | 00 = No agency approvals |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | Stainless steel (303/304), armored cable |
| Operating Temperature Range | –52 °C to +177 °C |
| Sensitivity / Linear Range | ~200 mV/mil (≈7.87 V/mm), linear range ~0.25–2.5 mm |
| Mounting Thread | M10 × 1 metric thread |
| Dimensions | 240 mm case length; 8 mm probe tip diameter |
| Weight | ~1.05 kg (with 5.0 m armored cable) |
FAQ
FAQ
Q1: What is the primary application of the 330104-00-24-50-02-00 probe?
It is used for non-contact shaft displacement, vibration, and position monitoring in rotating machinery such as turbines, compressors, and pumps.
Q2: What do the digits in the model number represent?
00 = no unthreaded length, 24 = 240 mm case length, 50 = 5.0 m total system length, 02 = armored miniature coaxial connector, 00 = no agency approvals.
Q3: What materials are used in this probe?
The probe tip is made of PPS, and the housing is stainless steel with armored cabling for durability.
Q4: What is the operating temperature range?
The probe operates reliably from –52 °C to +177 °C.
Q5: What type of signal does the probe provide?
When paired with a 3300 XL Proximitor, it outputs a voltage proportional to the gap between the probe tip and the rotating shaft.
Q6: Does this model include any hazardous-area certifications?
No, the “00” code indicates that no agency approvals are included.
Q7: What is the measurement sensitivity?
It provides a typical sensitivity of approximately 200 mV/mil with a linear measurement range of 0.25–2.5 mm.
Q8: What are the physical dimensions and weight?
It has a 240 mm case length, 8 mm probe tip diameter, and weighs approximately 1.05 kg including the 5.0 m armored cable.
