Technical Specifications
| Item | Specification |
|---|---|
| Model | 330104-00-25-50-02-CN |

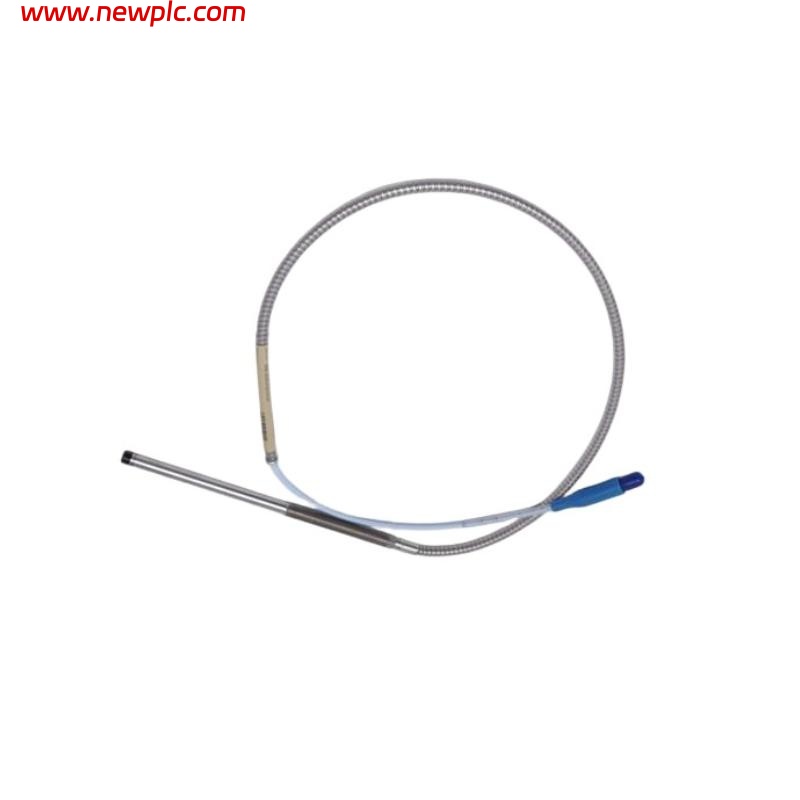

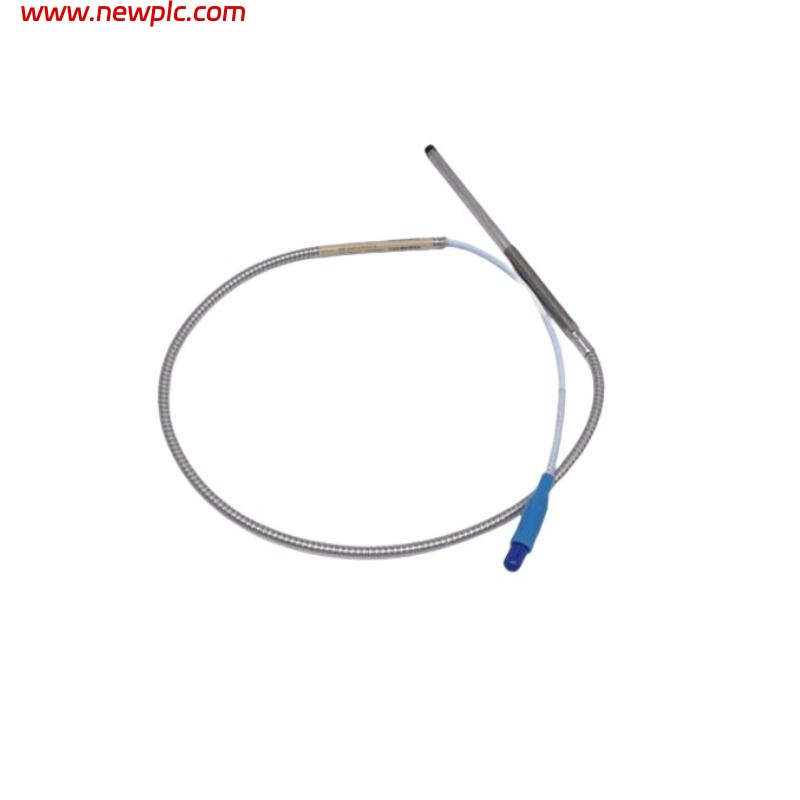

| Type | 8 mm 3300 XL Eddy-Current Proximity Probe |
| Unthreaded Length Option | 00 = 0 mm |
| Probe Case Length | 25 = 250 mm |
| Probe + Cable Total Length | 50 = 5.0 meters |
| Connector / Cable Option | 02 = Armored miniature coaxial connector |
| Approvals / Certification | CN = China certification |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | Stainless steel (303/304) with armored cable |
| Operating Temperature Range | –52 °C to +177 °C |
| Sensitivity / Linear Range | ~200 mV/mil (≈7.87 V/mm), linear range ~0.25–2.5 mm |
| Mounting Thread | M10 × 1 metric thread |
| Dimensions | 250 mm case length; 8 mm tip diameter |
| Weight | ~1.15 kg (with 5.0 m armored cable) |
FAQ
FAQ
Q1: What is the primary application of the 330104-00-25-50-02-CN probe?
It is used for non-contact measurement of shaft vibration, displacement, and position in rotating machinery such as turbines, compressors, and pumps.
Q2: What does each section of the model number indicate?
00 = no unthreaded length, 25 = 250 mm case length, 50 = 5.0 m total probe + cable length, 02 = armored miniature coaxial connector, CN = China certification.
Q3: What materials are used in the probe?
The tip is PPS, and the housing is stainless steel with armored cable protection for durability.
Q4: What is the operating temperature range?
It operates from –52 °C to +177 °C.
Q5: What type of output does the probe provide?
When paired with a 3300 XL Proximitor, it outputs a voltage proportional to the gap between the probe tip and the shaft.
Q6: Is this probe suitable for hazardous-area applications?
The “CN” marking indicates China certification; suitability for hazardous areas depends on local standards.
Q7: What is the typical measurement sensitivity?
Approximately 200 mV/mil, with a linear range of 0.25–2.5 mm.
Q8: What are the physical dimensions and weight specifications?
The probe has a 250 mm case length, 8 mm tip diameter, and weighs about 1.15 kg including the 5.0 m armored cable.
