Technical Specifications
| Parameter | Specification |
|---|---|

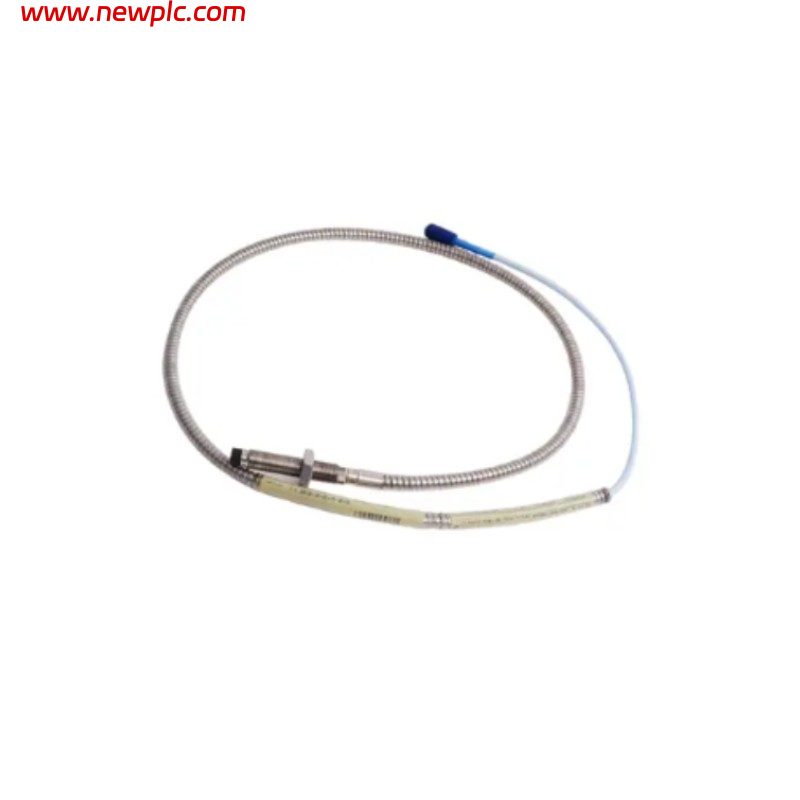

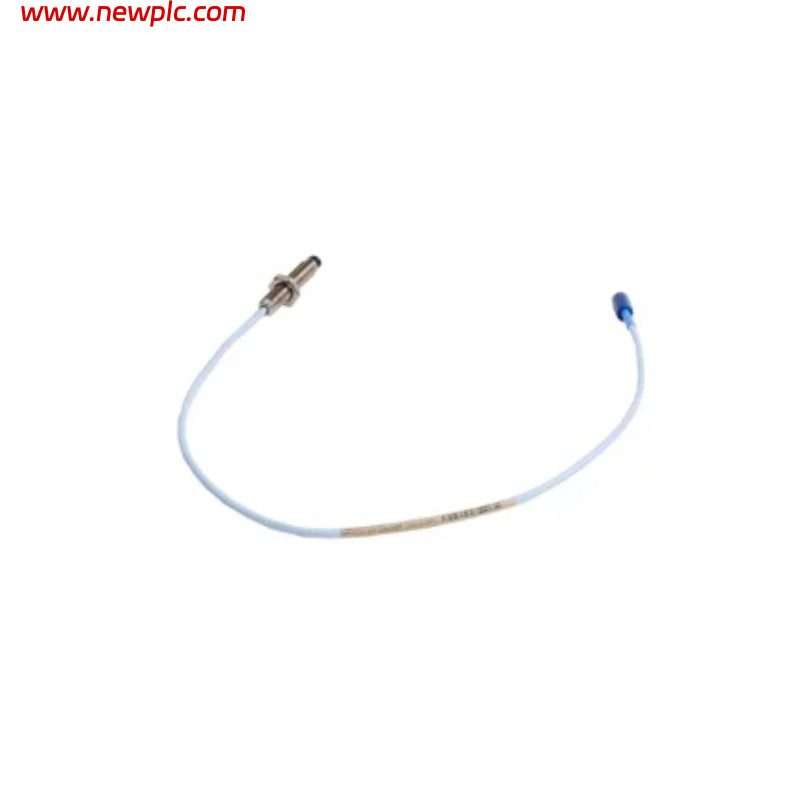

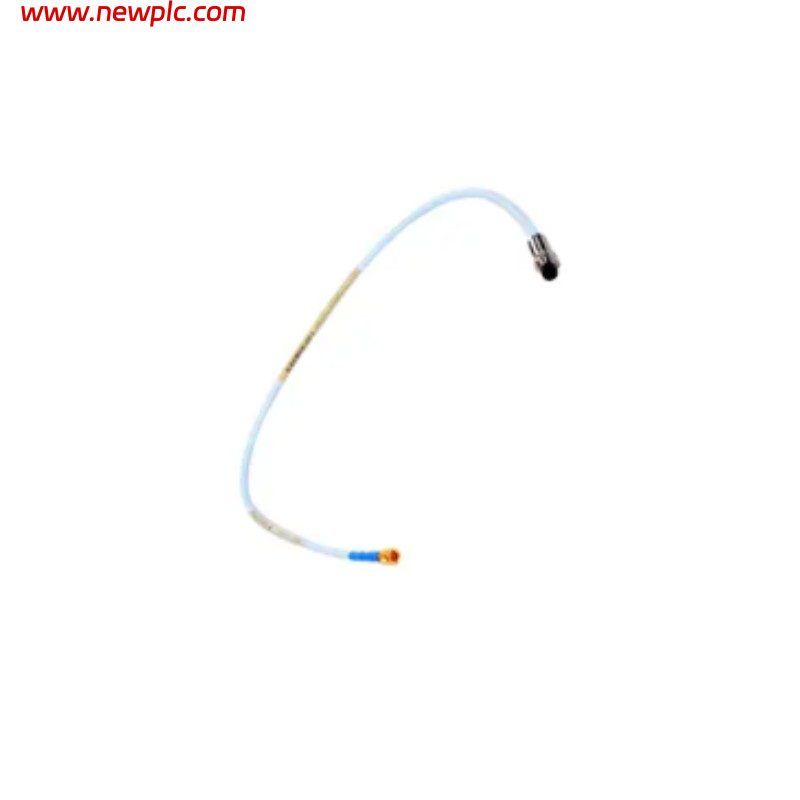

| Product Name | Bently Nevada 330104-01-04-15-02-05 |
| Product ID | 330104-01-04-15-02-05 |
| Manufacturer | Bently Nevada |
| Product Type | 3300 XL 8 mm Reverse Mount Proximity Probe |
| Series | 3300 XL Proximitor® Transducer System |
| Function | Non-contact measurement of shaft vibration, position, and displacement in rotating machinery |
| Measurement Technology | Eddy Current Proximity Sensing |
| Probe Type | Reverse Mount Probe |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF-2A |
| Agency Approval | CSA / ATEX / IECEx Multiple Approvals (Option 01) |
| Case Length | 0.4 in (10.2 mm) (Option 04) |
| Total System Length | 1.5 m (4.9 ft) (Option 15) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector (Option 02) |
| Cable Option | Standard Cable (Option 05) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Linear Range | Approx. 2.0 mm (80 mils) |
| Frequency Response | 0 Hz to 10 kHz |
| Cable Type | Integral 75 Ω Triaxial Cable |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Probe Case Material | Stainless Steel |
| Operating Temperature | −51°C to +177°C |
| System Compatibility | Bently Nevada 3300 XL 8 mm Proximitor® Sensor Systems |
| Application | Steam Turbines, Gas Turbines, Compressors, Pumps, Motors, Generators |
| Dimensions | Probe Ø8 mm × Case Length 10.2 mm × Total Assembly Length Approx. 1500–1550 mm |
| Weight | Approx. 0.35–0.45 kg |
| Country of Origin | United States |
FAQ
FAQ
Q1: What is the Bently Nevada 330104-01-04-15-02-05 used for?
It is a reverse mount proximity probe used for measuring shaft vibration and position where installation space requires mounting from the rear side of the machine casing.
Q2: What does Option 01 indicate?
It indicates multiple hazardous-area approvals including CSA, ATEX, and IECEx certifications.
Q3: What does Option 04 indicate?
It specifies a short 0.4-inch (10.2 mm) probe case length.
Q4: What does Option 15 indicate?
It specifies a total system length of 1.5 meters.
Q5: What are the dimensions and weight?
The probe diameter is 8 mm, case length is 10.2 mm, overall assembly length is approximately 1.5 m, and weight is approximately 0.35–0.45 kg.
Q6: What is the advantage of a reverse mount probe?
It allows installation from the opposite side of the mounting bracket or machine casing when access is restricted.
Q7: Can this probe be used with any Proximitor sensor?
No. It must be matched with a compatible Bently Nevada 3300 XL 8 mm Proximitor® sensor and extension cable system.
Q8: What should be verified before replacement?
Verify probe type (reverse mount), approvals, case length, system length, connector style, and compatibility with the existing 3300 XL transducer system.
