Technical Specifications
| Item | Specification |
|---|---|
| Model | 330104-02-12-10-01-00 |

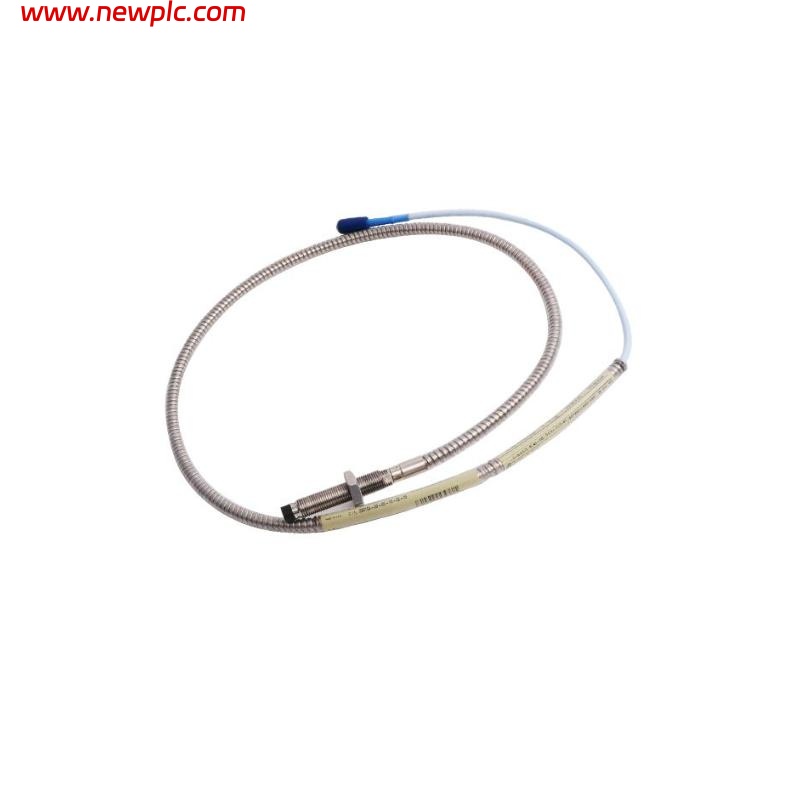

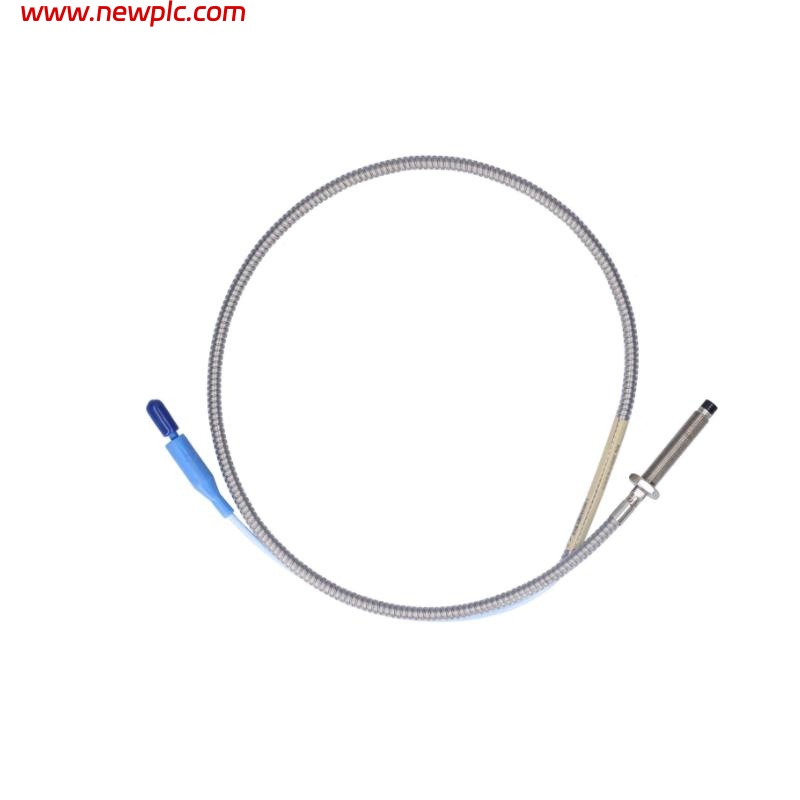

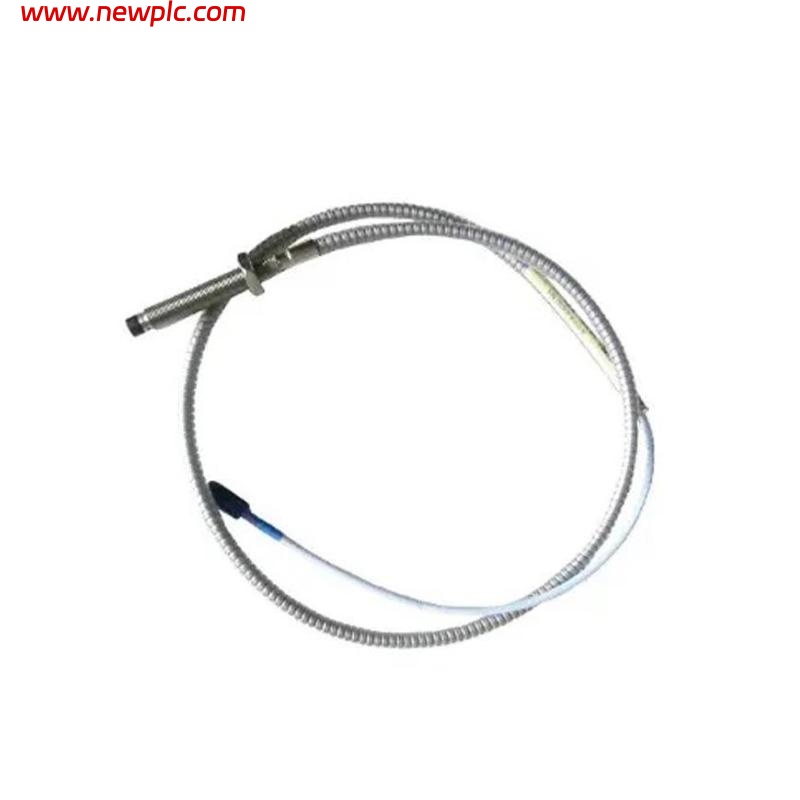

| Type | 8 mm 3300 XL Eddy-Current Proximity Probe |
| Unthreaded Length Option | 02 = 2 mm |
| Probe Case Length | 12 = 120 mm |
| Probe + Cable Total Length | 10 = 1.0 meter |
| Connector / Cable Option | 01 = Miniature coaxial connector |
| Approvals / Certification | 00 = No agency approvals |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | Stainless steel (303/304) with armored cable |
| Operating Temperature Range | –52 °C to +177 °C |
| Sensitivity / Linear Range | ~200 mV/mil (≈7.87 V/mm), linear range 0.25–2.5 mm |
| Mounting Thread | M10 × 1 metric thread |
| Dimensions | 120 mm case length; 8 mm tip diameter |
| Weight | ~0.55 kg (with 1.0 m armored cable） |
FAQ
FAQ
Q1: What is the primary application of the 330104-02-12-10-01-00 probe?
It is used for non-contact measurement of shaft vibration, displacement, and position in rotating machinery such as turbines, compressors, and pumps.
Q2: What do the sections of the model number represent?
02 = 2 mm unthreaded length, 12 = 120 mm case length, 10 = 1.0 m total system length, 01 = miniature coaxial connector, 00 = no agency approvals.
Q3: What materials are used in the probe?
The probe tip is PPS, and the housing is stainless steel with armored cable protection.
Q4: What is the operating temperature range?
It operates from –52 °C to +177 °C.
Q5: What type of output does the probe provide?
Paired with a 3300 XL Proximitor, it outputs a voltage proportional to the gap between the probe tip and the shaft.
Q6: Does this model include hazardous-area certifications?
No, the “00” designation indicates no agency or hazardous-area approvals.
Q7: What is the typical measurement sensitivity?
Approximately 200 mV/mil with a linear range of 0.25–2.5 mm.
Q8: What are the physical dimensions and weight?
The probe has a 120 mm case length, 8 mm tip diameter, and weighs about 0.55 kg including the 1.0 m armored cable.
