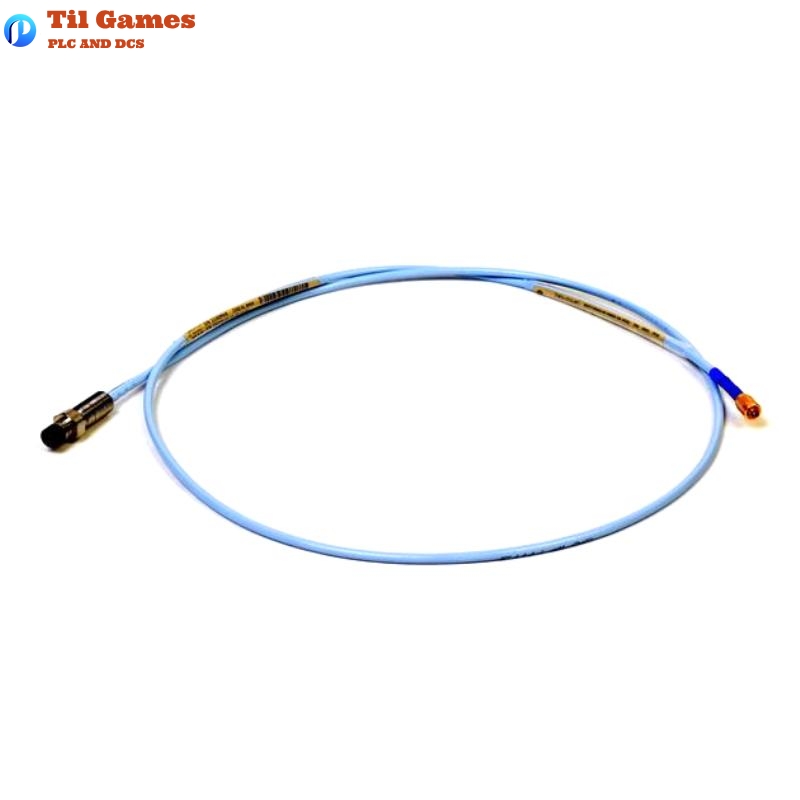

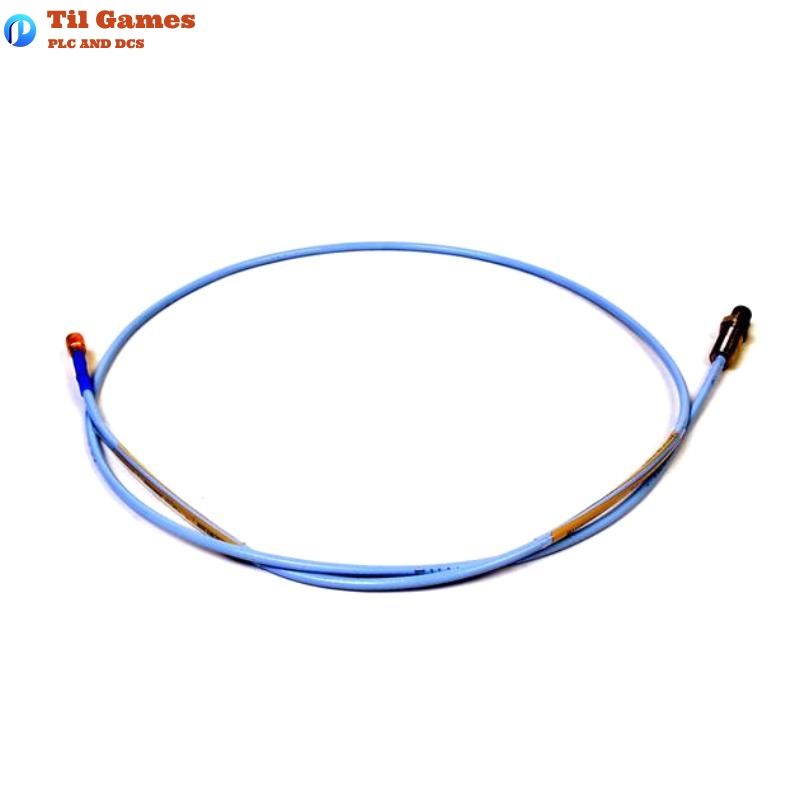

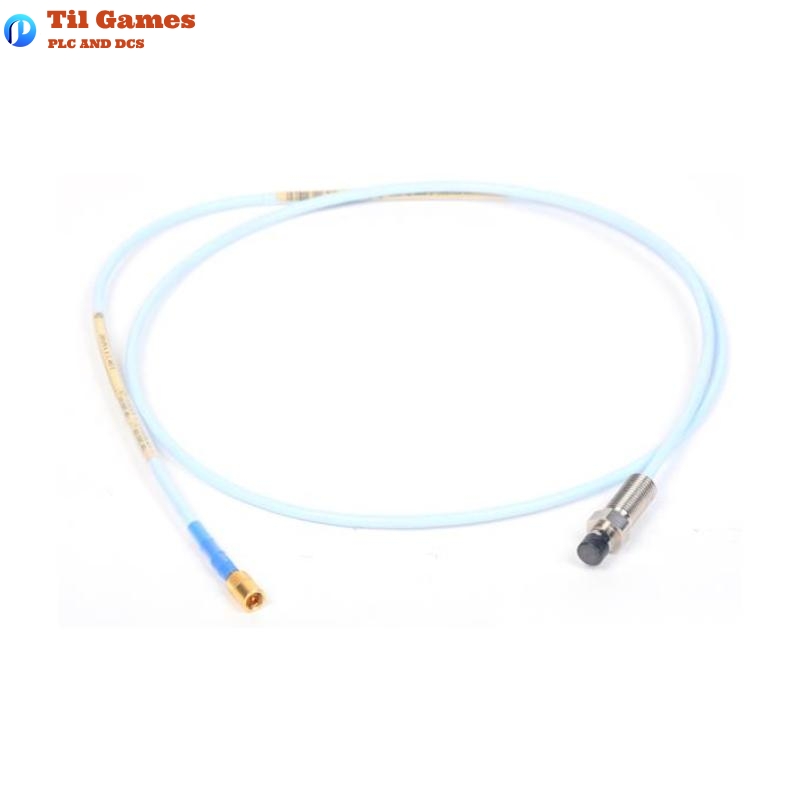

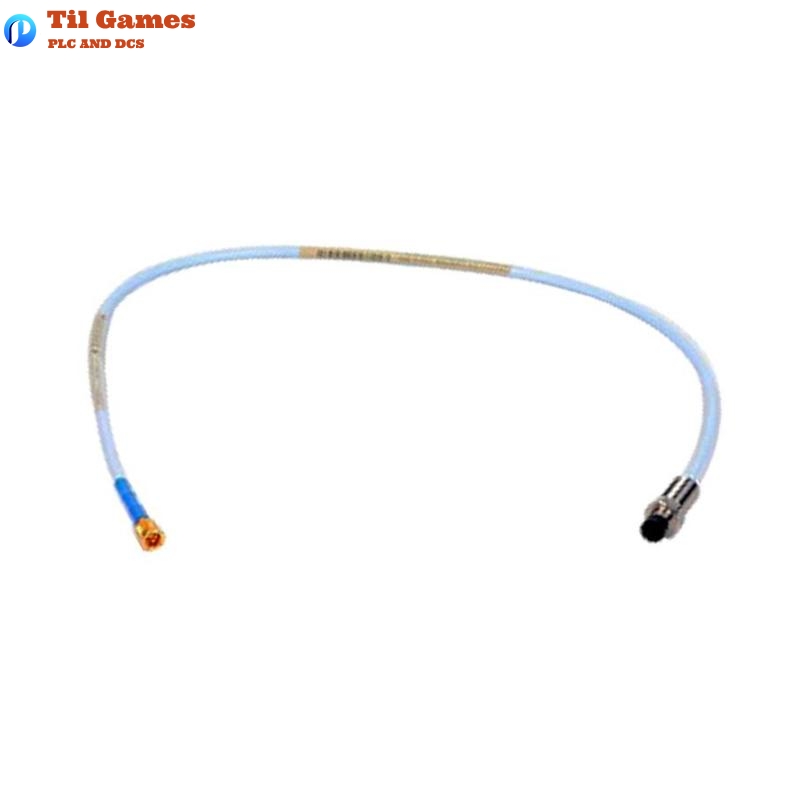

Bently Nevada 330105-02-12-05-02-CN 3300 XL 8 mm Reverse Mount Probe

FAQ

Q1: What is the purpose of the Bently Nevada 3300 XL 8 mm Reverse Mount Probe?
A1: The Bently Nevada 3300 XL 8 mm Reverse Mount Probe is primarily used for vibration and position measurements on fluid-film bearing machines. It is also used for Keyphasor reference and speed measurements.

Q2: What materials are used in the construction of the probe?
A2: The probe tip is made of polyphenylene sulfide (PPS), while the case is made of AISI 303 or 304 stainless steel (SST). The cable is a 75Ω triaxial, FEP insulated type.

Q3: What is the operating temperature range of the probe?
A3: The standard probe operates in the temperature range of -52°C to +177°C (-62°F to +350°F). There is an extended temperature range version for higher temperatures up to +218°C (+425°F) for the probe tip and +260°C (+500°F) for the probe cable.

Q4: Can this probe be used in hazardous environments?
A4: Yes, the 3300 XL 8 mm Reverse Mount Probe has various certifications for hazardous environments, including CSA, ATEX, and IECEx approvals.

Q5: What is the frequency response of the probe system?
A5: The system has a frequency response range of 0 to 10 kHz, with a +0, -3 dB response.

Q6: What is the minimum target size required for this probe?
A6: The minimum target size for this probe is 15.2 mm (0.6 inches) in diameter for a flat target.

Q7: What are the recommended shaft diameters for proper operation?
A7: The minimum recommended shaft diameter is 50.8 mm (2 inches), with the ideal being 76.2 mm (3 inches).

Q8: What type of connector is used with the probe?
A8: The probe uses miniature coaxial ClickLoc connectors, which are gold-plated for corrosion resistance and require only finger-tight torque for installation.

3300 XL 8 mm Reverse Mount Probe 330105-02-12-05-02-CN Bently Nevada
