Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | 330130-035-00-00 |

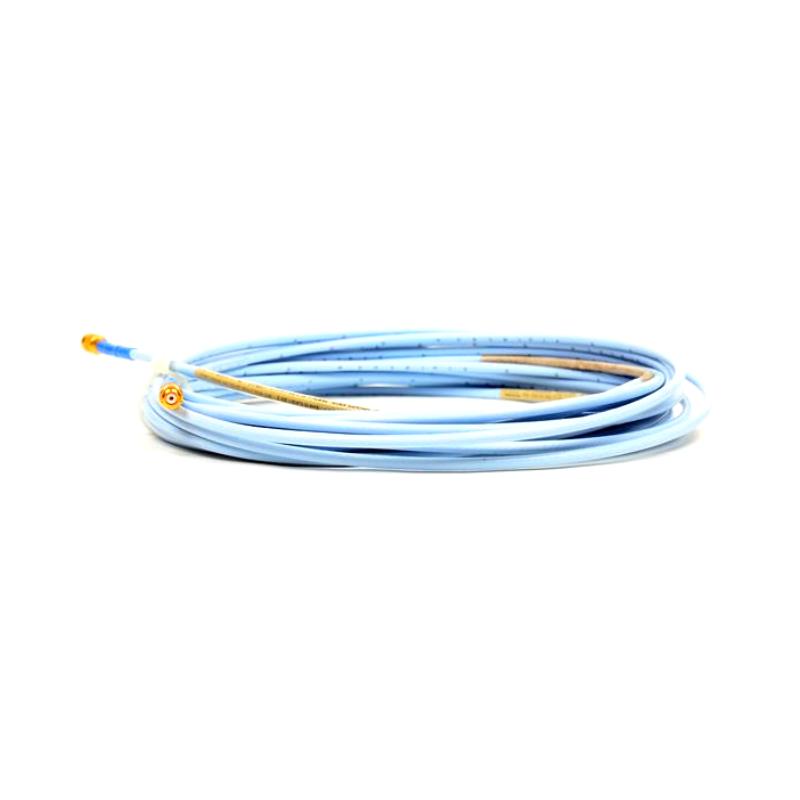

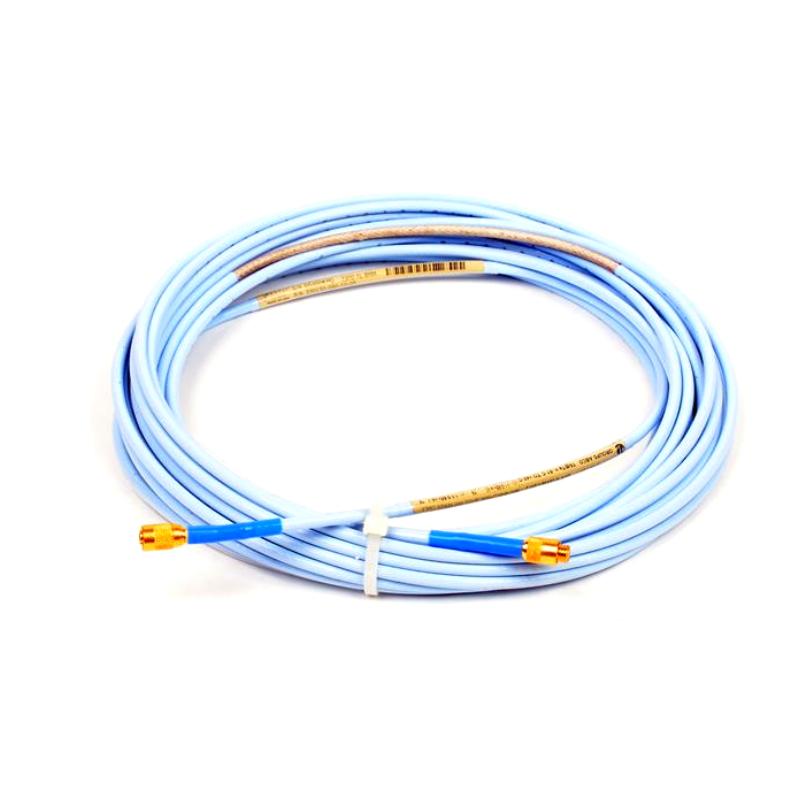

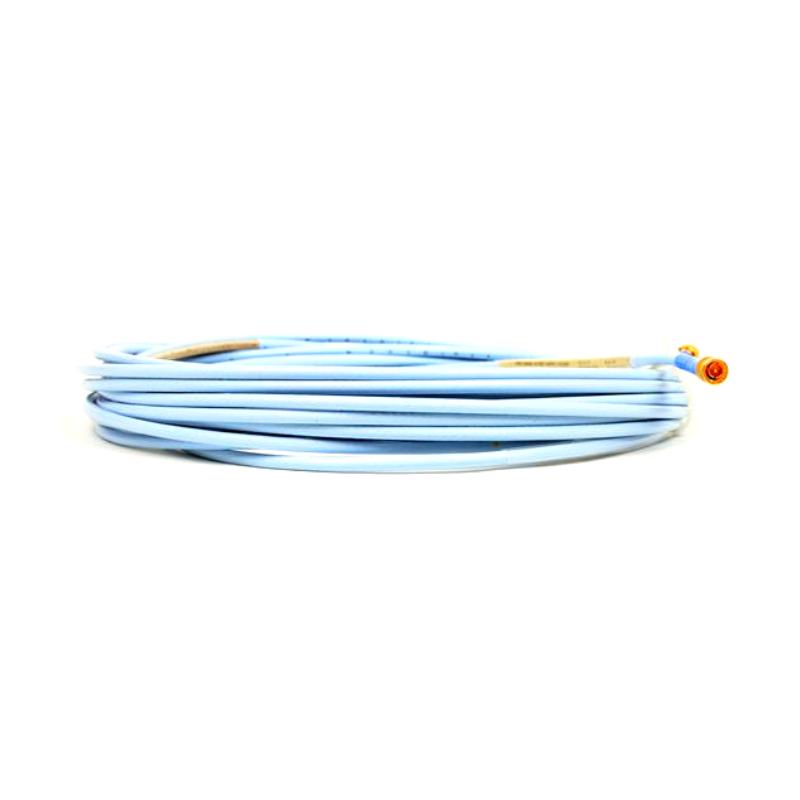

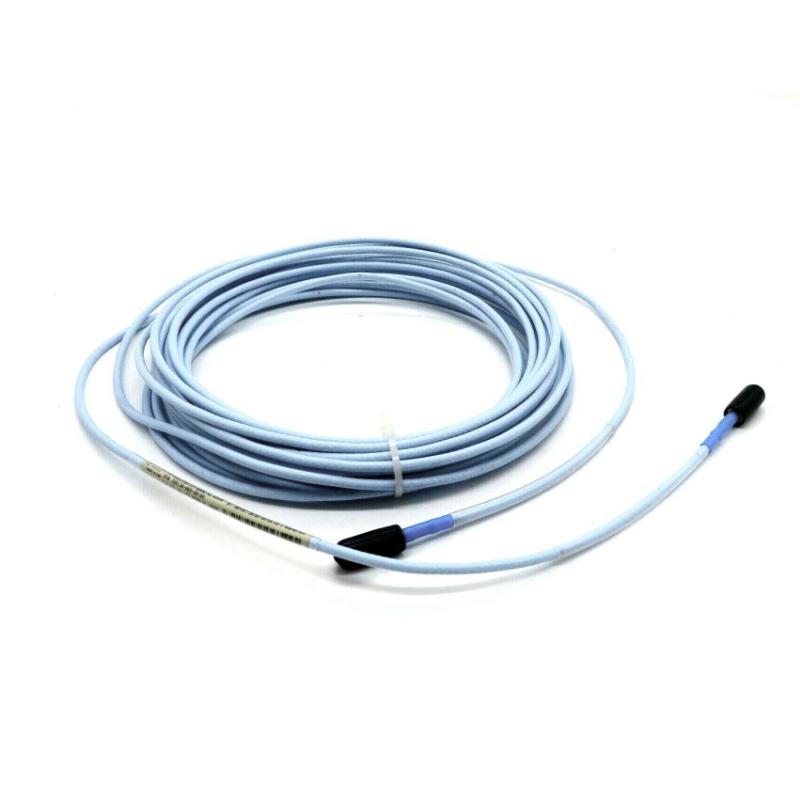

| Product Type | 3300 XL Standard Extension Cable |
| Cable Length | 3.5 meters |
| Cable Capacitance | 69.9 pF/m (typical) |
| DC Resistance – Center Conductor (RCORE) | 0.77 ± 0.12 Ω |
| DC Resistance – Outer Conductor (RJACKET) | 0.23 ± 0.05 Ω |
| Weight | 0.12 kg |
| Minimum Cable Bend Radius | 25.4 mm (1.0 inch) |
| Cable Construction | 75 Ω triaxial, FEP-insulated |
| Connector Type | Miniature ClickLoc coaxial connector (gold-plated) |
| Operating Temperature (Standard Cable) | -52°C to +177°C (-62°F to +350°F) |
| Storage Temperature | Same as operating temperature |
| Compatibility | Compatible with all 3300 XL 8 mm Probes and Proximitor Sensors |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary use of the 330130-035-00-00 extension cable?
A1: It connects the 3300 XL 8 mm proximity probe to the Proximitor Sensor for vibration and position monitoring.
Q2: Is the cable compatible with non-XL 3300 systems?
A2: Yes, the cable is electrically and physically compatible with non-XL 3300 5 mm and 8 mm components.
Q3: What is the weight of the 3.5-meter extension cable?
A3: The cable weighs approximately 0.12 kg.
Q4: What kind of connectors are used on this cable?
A4: It uses gold-plated ClickLoc miniature coaxial connectors with finger-tight installation.
Q5: What is the minimum bend radius for this extension cable?
A5: The minimum allowable bend radius is 25.4 mm (1 inch).
Q6: Can this cable be used in high-temperature environments?
A6: Yes, the standard version is rated up to 177°C. For higher temperatures, an ETR version is available.
Q7: Does this cable include environmental connector protection?
A7: It depends on the ordered variant. Models with connector protectors have enhanced environmental sealing.
Q8: What insulation is used on the standard version of this cable?
A8: The standard cable is insulated with fluoroethylene propylene (FEP).
