???? Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 330130-045-00 |

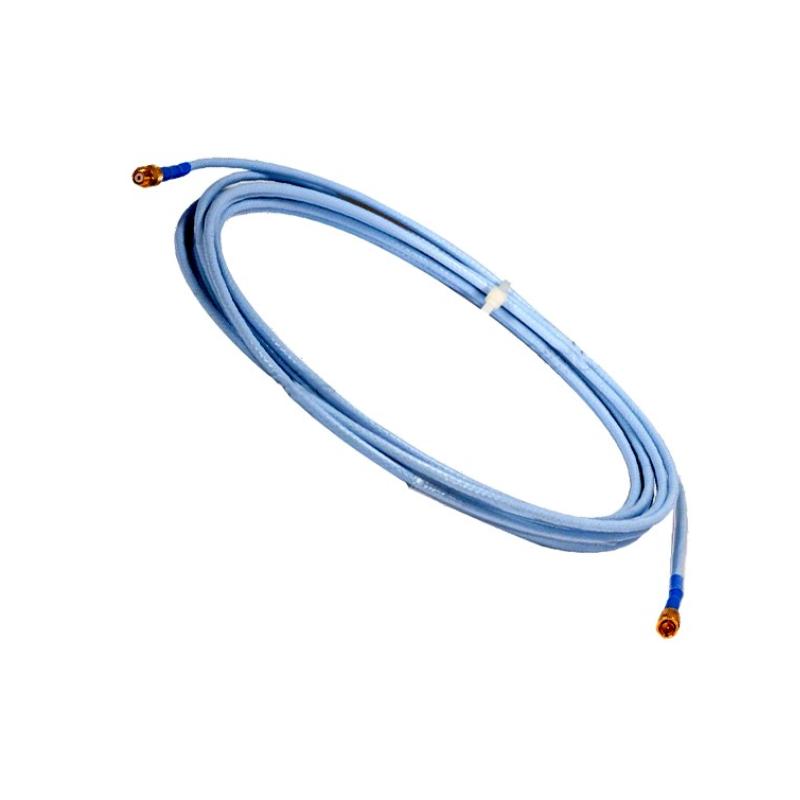

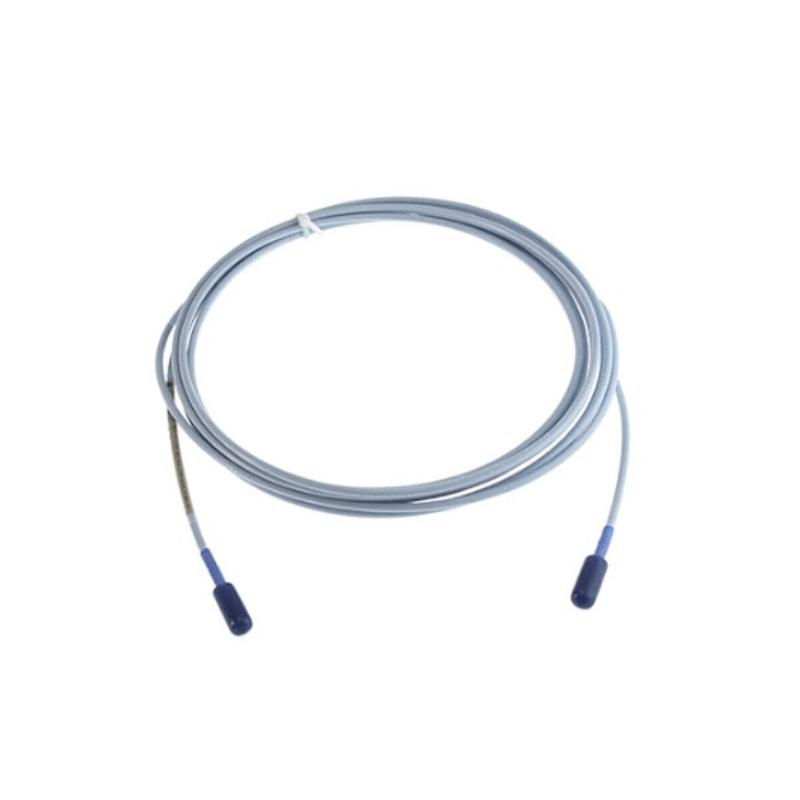

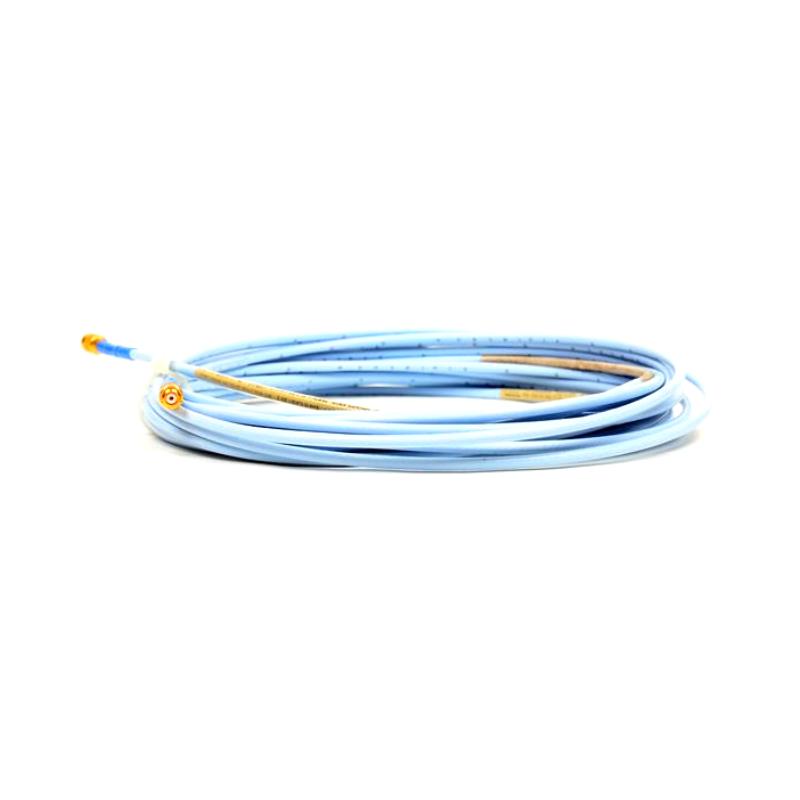

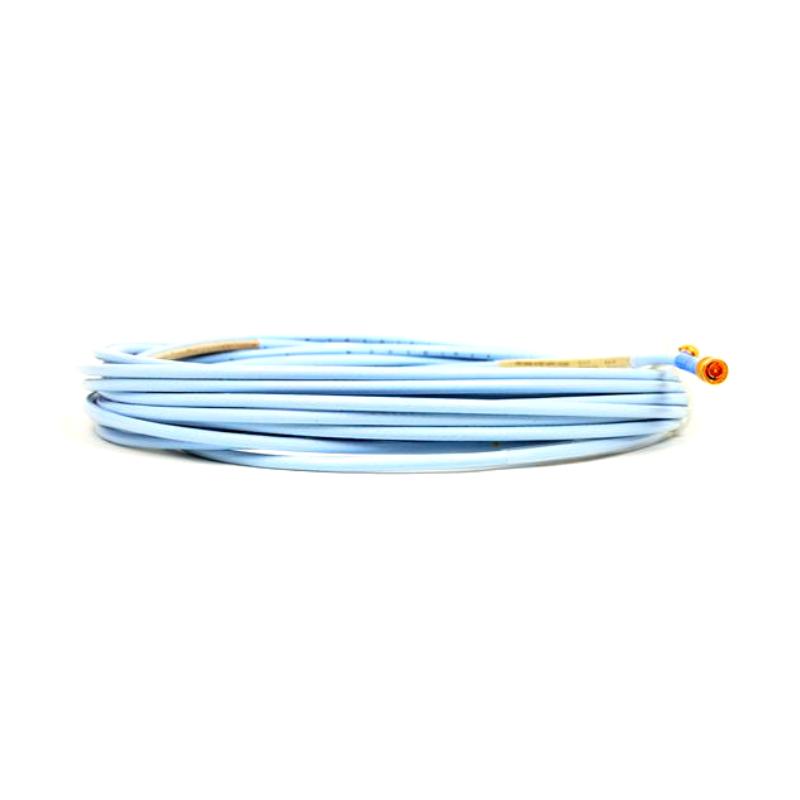

| Product Name | Bently Nevada 3300 XL Standard Extension Cable |
| Cable Length | 4.5 meters |
| Core Resistance (RCORE) | 0.99 ± 0.15 Ω (center conductor) |
| Jacket Resistance (RJACKET) | 0.30 ± 0.06 Ω (outer conductor) |
| Capacitance | 69.9 pF/m (typical) |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Temperature Range (Standard) | -52°C to +177°C |
| Temperature Range (ETR Version) | -52°C to +260°C (ETR cable required) |
| Cable Material | FEP-insulated 75Ω triaxial cable |
| Connector Material | Gold-plated brass or beryllium copper |
| Maximum Connector Torque | 0.565 N·m (5 in·lbf) |
| Weight | 0.153 kg (for 4.5 m standard cable) |
FAQ
❓ Frequently Asked Questions (FAQs)
Q1: Can this extension cable be used in high-temperature environments?
A1: Yes, but you must select the Extended Temperature Range (ETR) version rated up to 260°C.
Q2: Is it compatible with non-XL 3300 system components?
A2: Yes, the 330130 cable is both electrically and physically compatible with non-XL 5 mm and 8 mm components, but accuracy follows the non-XL spec.
Q3: Are special tools required to connect the cable?
A3: No. The ClickLoc connectors are finger-tightened and click into place when fully secured.
Q4: Are the connectors corrosion-resistant?
A4: Yes, the connectors are gold-plated for enhanced corrosion resistance in industrial settings.
Q5: Is the cable suitable for oily environments?
A5: The FluidLoc cable option is recommended to prevent oil ingress through the cable core.
Q6: Does the cable come with connector protectors?
A6: They can be ordered pre-installed or separately. Connector protectors are strongly recommended for all installations.
Q7: Is there a limit on cable length during installation?
A7: Yes. Ensure the sum of probe and extension cable lengths equals the total system length of the Proximitor Sensor.
Q8: What is the minimum bend radius for the cable?
A8: The minimum bend radius is 25.4 mm. Exceeding this may damage the cabl
