Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 330130-070-01-05 |

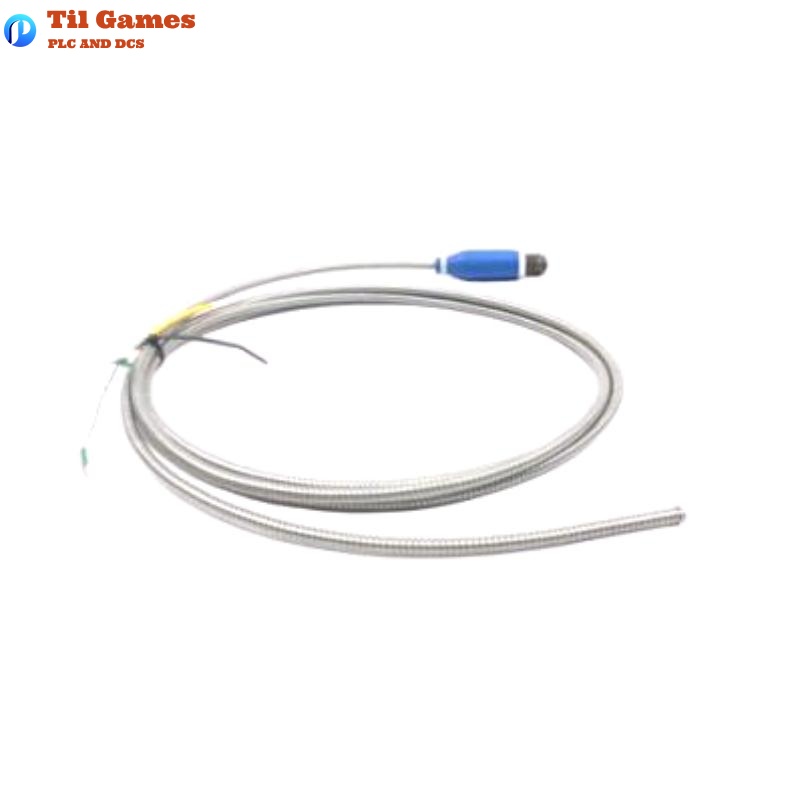

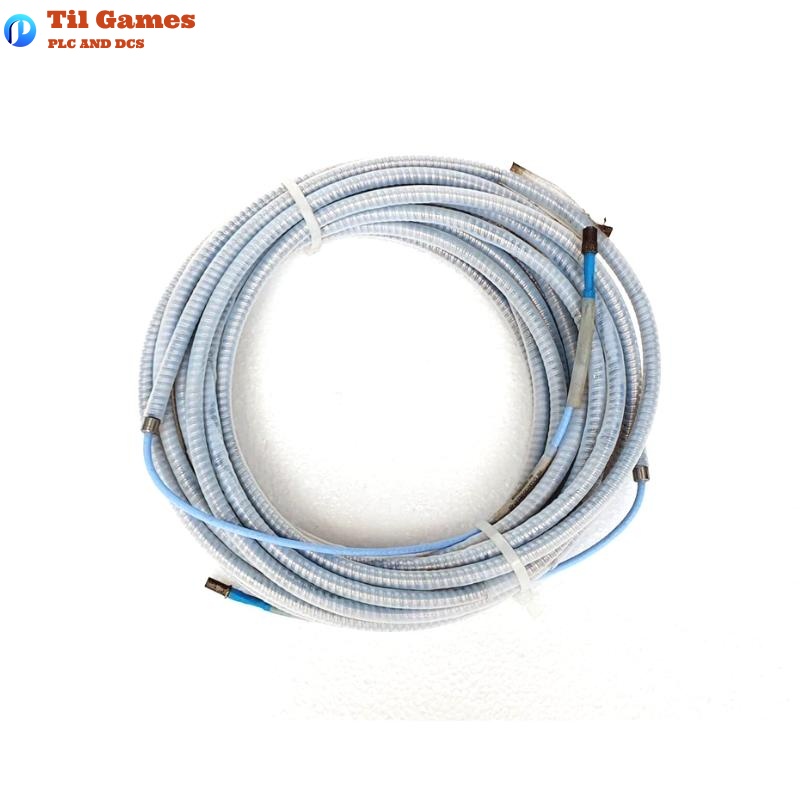

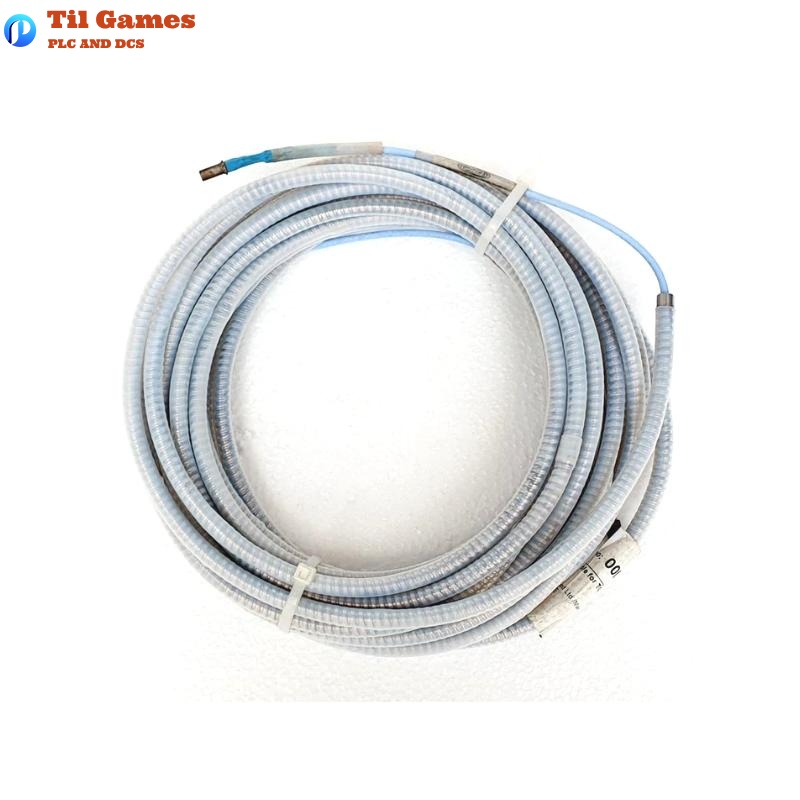

| Product Name | Bently Nevada 3300 XL Standard Extension Cable |
| Cable Length | 7.0 meters |
| Core Resistance | 1.54 ± 0.23 Ω |
| Jacket Resistance | 0.46 ± 0.09 Ω |
| Cable Capacitance | 69.9 pF/m |
| Minimum Bend Radius | 25.4 mm |
| Cable Material | 75Ω triaxial, FEP insulated (standard type) |
| Connector Type | ClickLoc, gold-plated brass/copper |
| Cable Weight | 0.721 kg (for 7.0 m length) |
| Operating Temperature | -52°C to +177°C (standard version) |
| Max Tensile Strength | 270 N (probe lead to extension cable) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What systems is this extension cable compatible with?
A1: It is designed for use with Bently Nevada 3300 XL 8 mm proximity transducer systems, including probes and Proximitor sensors.
Q2: What is the impedance of the 7-meter cable?
A2: The cable is a 75Ω triaxial type designed for minimal signal loss and noise.
Q3: Is it suitable for high-temperature applications?
A3: The standard version supports up to +177°C. For higher temperatures, use the Extended Temperature Range (ETR) version.
Q4: Can this cable be armored?
A4: Yes, both standard and armored versions are available depending on site requirements.
Q5: Can the extension cable be replaced separately?
A5: Yes, the 330130 cable can be replaced independently without replacing the probe or Proximitor.
Q6: Are special tools needed to connect the cable?
A6: No, the ClickLoc connectors are finger-tight and feature a locking mechanism to prevent loosening.
Q7: Is there protection against oil ingress?
A7: Yes, the optional FluidLoc cable version prevents oil and liquid ingress through the cable.
Q8: Is this cable interchangeable with older 3300 series parts?
A8: Yes, it is physically and electrically interchangeable with 3300 5 mm and 8 mm non-XL components.
