Technical Specifications
| Parameter | Specification |
|---|---|

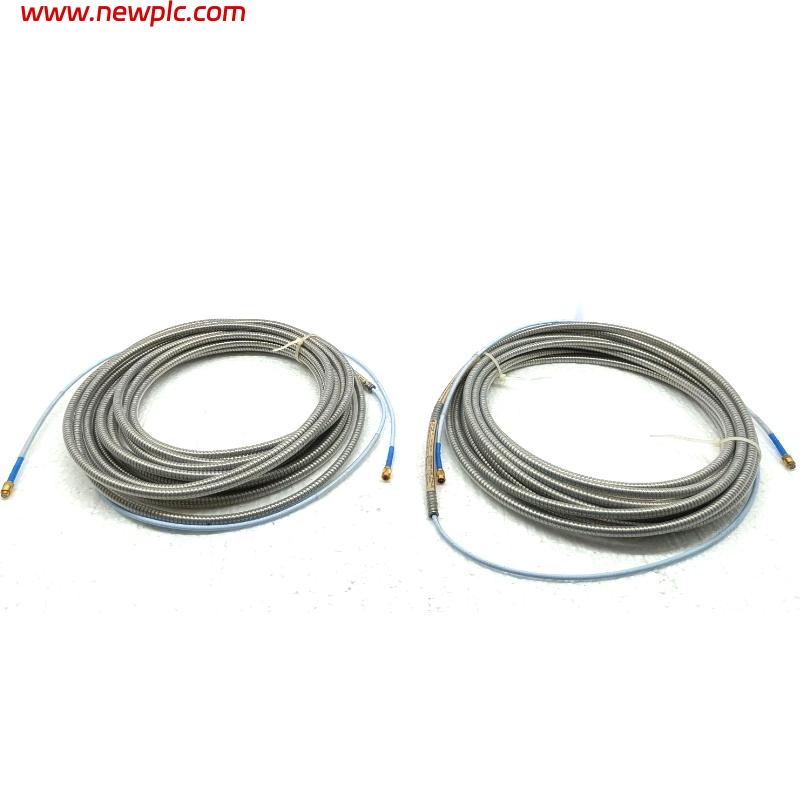

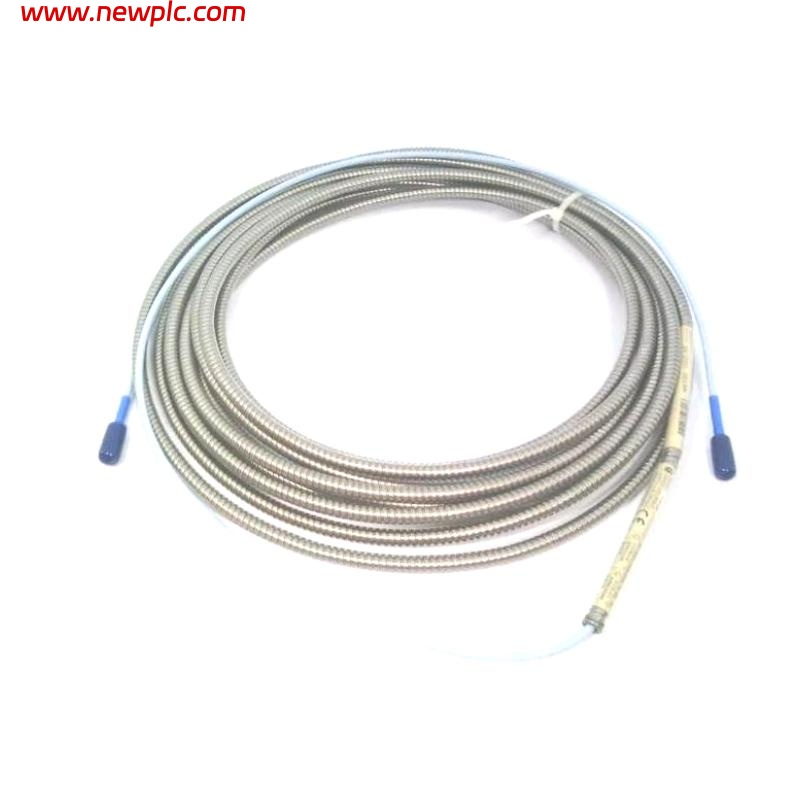

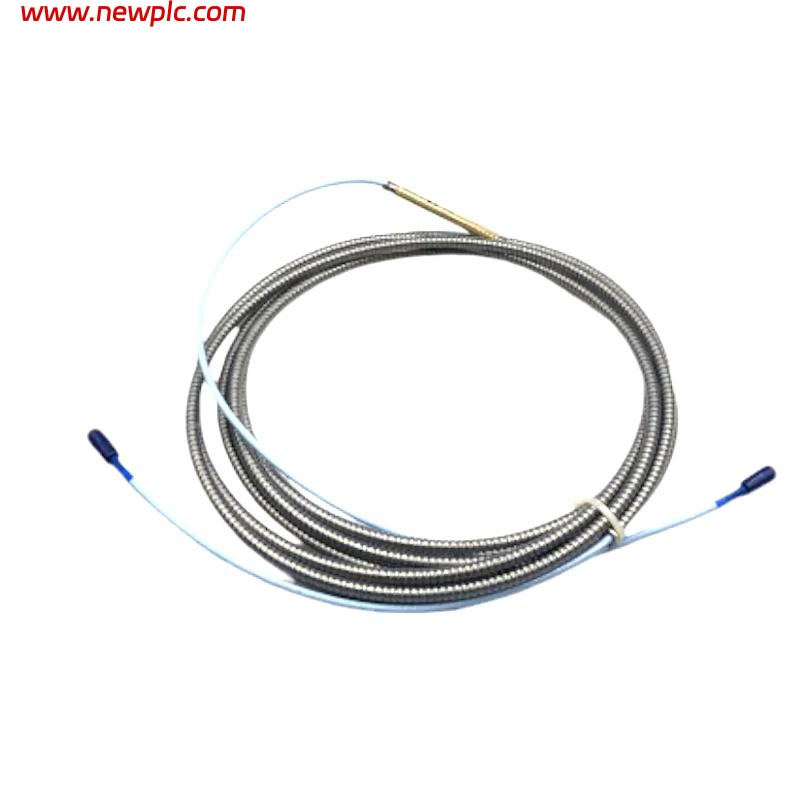

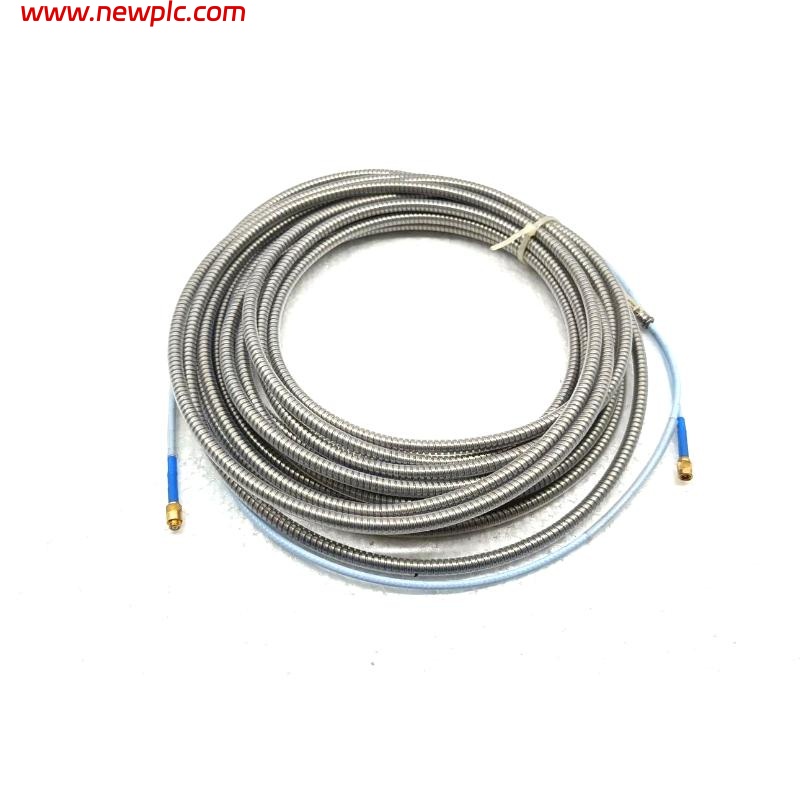

| Product Model | Bently Nevada 330130-075-03-00 |
| Product Type | 3300 XL Standard Extension Cable |
| Cable Length | 7.5 meters |
| Weight | 0.255 kg |
| Capacitance | 69.9 pF/m (21.3 pF/ft) typical |
| Core Resistance (RCORE) | 1.65 ± 0.25 Ω |
| Jacket Resistance (RJACKET) | 0.49 ± 0.10 Ω |
| Impedance | 75 Ω triaxial |
| Insulation Material | Fluoroethylene propylene (FEP) |
| Connector Type | Gold-plated ClickLoc connectors |
| Max Connector Torque | 0.565 N·m (5 in·lbf) |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Operating Temperature Range | -52°C to +177°C (-62°F to +350°F) |
| Storage Temperature Range | -52°C to +177°C (-62°F to +350°F) |
| FluidLoc Option | Available (optional for fluid sealing) |
| Armored Option | Optional with outer FEP jacket |
| Compliance | RoHS, CE, FCC Part 15, SIL 2/3, ATEX/IECEx, cNRTLus approved |
FAQ
FAQ
Q1: What is the cable length of the 330130-075-03-00 extension cable?
A1: The standard length is 7.5 meters.
Q2: How much does the cable weigh?
A2: The cable weighs 0.255 kilograms.
Q3: Does it feature corrosion-resistant connectors?
A3: Yes, it uses gold-plated ClickLoc connectors for corrosion resistance.
Q4: What is the operating temperature range of the cable?
A4: It operates between -52°C and +177°C.
Q5: Is FluidLoc sealing available with this cable?
A5: Yes, FluidLoc is available as an optional feature to prevent fluid ingress.
Q6: What is the minimum bend radius for this cable?
A6: The minimum bend radius is 25.4 mm (1 inch).
Q7: Can it be used in environments with high EMI or RFI?
A7: Yes, it is designed with high immunity to electromagnetic interference.
Q8: Is the cable compatible with standard 3300 XL Proximitor sensors?
A8: Yes, it is fully compatible with standard 3300 XL Proximitor systems.
