Technical Specifications
| Parameter | Description |
|---|---|

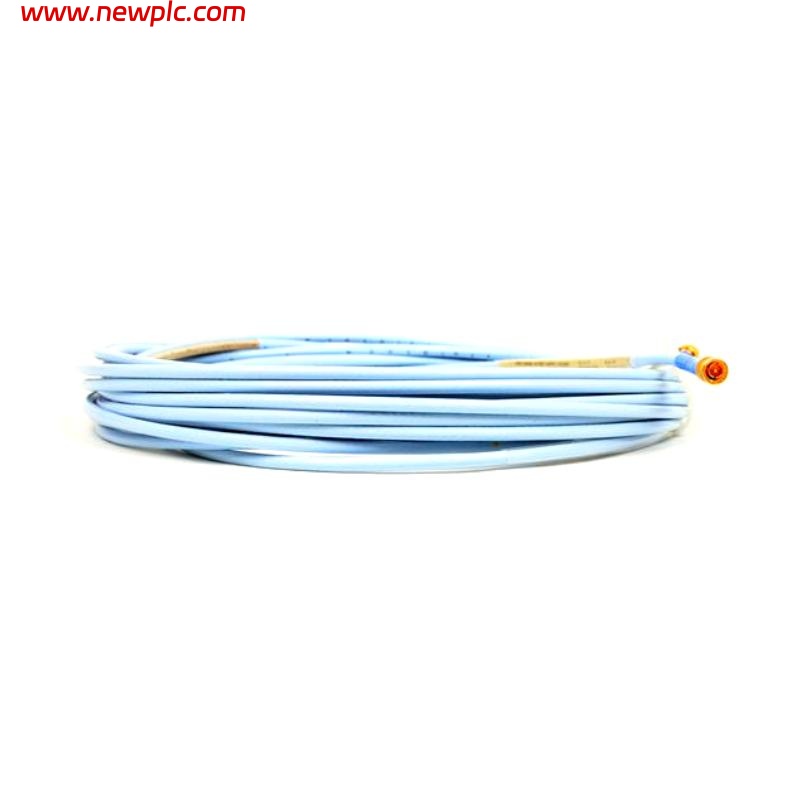

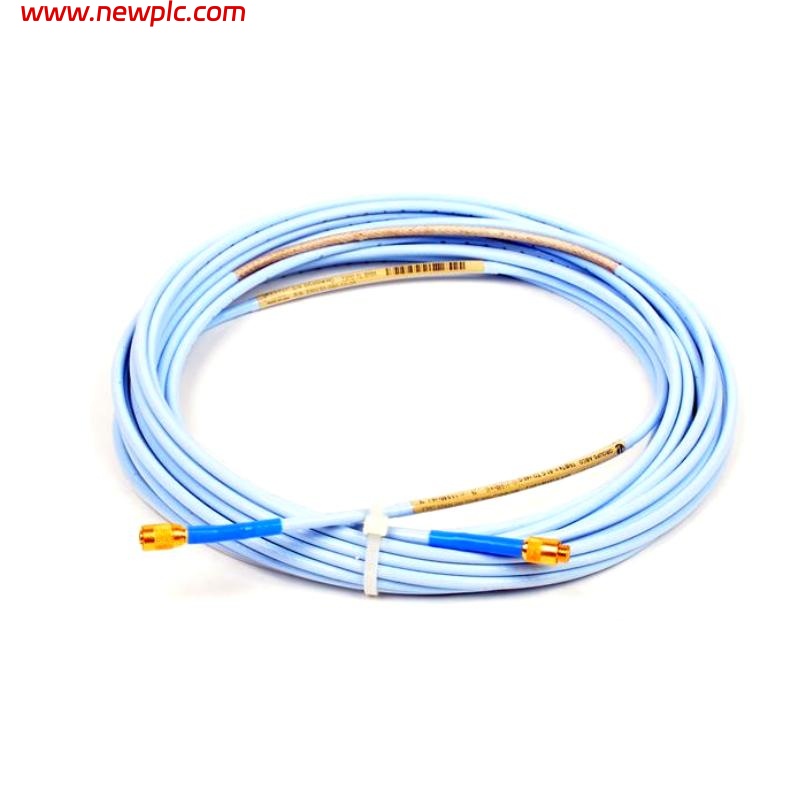

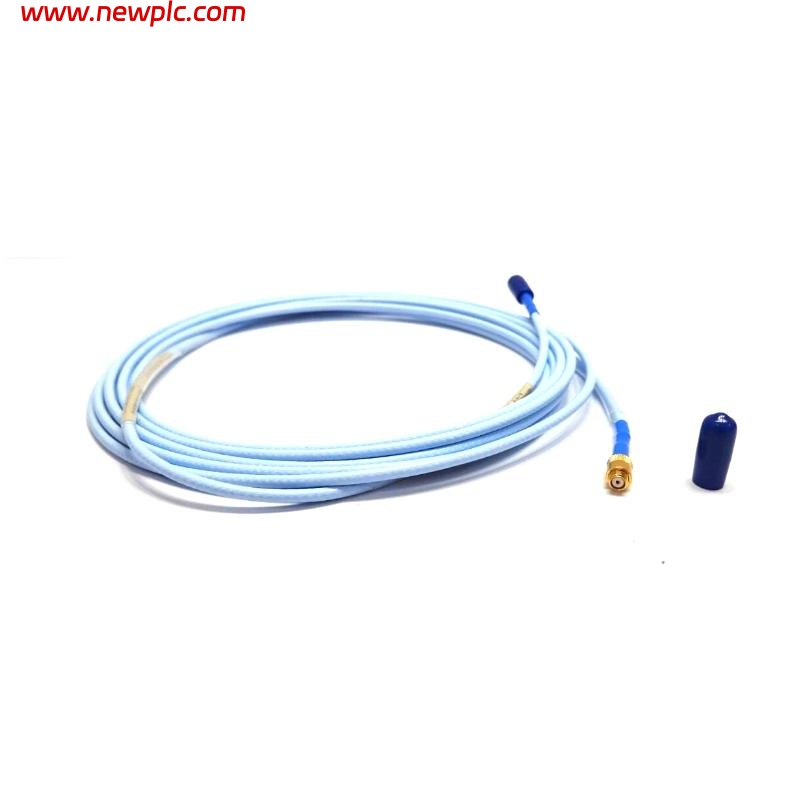

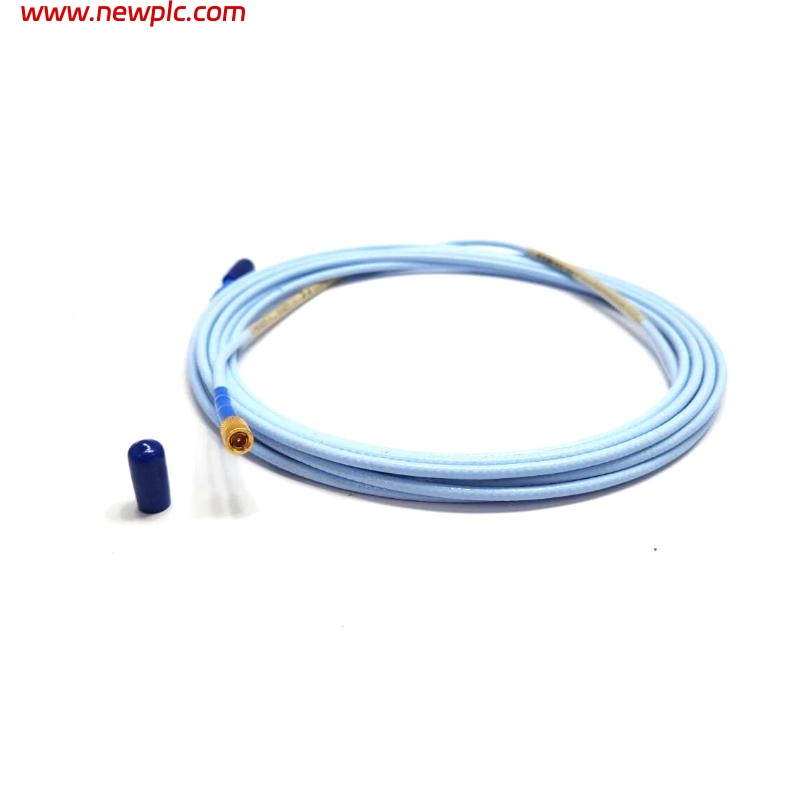

| Product Model | Bently Nevada 330130-075-10-05 |
| Product Type | 3300 XL Standard Extension Cable |
| Cable Type | 75 Ω triaxial, FEP insulated |
| Cable Length | 7.5 meters |
| Connector Type | ClickLoc Miniature Coaxial Connector (Gold-plated) |
| Cable Capacitance | 69.9 pF/m (typical) |
| Center Conductor Resistance | 1.65 ± 0.25 Ω |
| Jacket Resistance | 0.49 ± 0.10 Ω |
| Minimum Bend Radius | 25.4 mm (1.0 inch) |
| Temperature Range (Standard) | -52°C to +177°C (-62°F to +350°F) |
| Temperature Range (ETR Cable) | -52°C to +260°C (-62°F to +500°F) |
| Tensile Strength | 270 N (60 lbf) at probe lead to extension cable connectors |
| Cable Weight | 0.78 kg (7.5 m × 0.104 kg/m) |
| Outer Diameter | Approx. 3.68 mm (0.145 in), max 3.94 mm (0.155 in) for FluidLoc |
| Connector Torque (Max) | 0.565 N·m (5 in·lbf) |
| Environmental Rating | Meets API 670, RoHS, SIL 2/3, CE, ATEX, IECEx certifications |
FAQ
FAQ
Q1: What probes are compatible with the 330130-075-10-05 extension cable?
A1: It is compatible with Bently Nevada 3300 XL 8 mm and 5 mm proximity probe systems.
Q2: Can this extension cable be used in high-temperature applications?
A2: Yes, the standard version supports up to +177°C, and the Extended Temperature Range (ETR) version supports up to +260°C.
Q3: Does installation require any special tools?
A3: No tools are required. The ClickLoc connector system is finger-tightened and self-locking.
Q4: What applications is this cable suitable for?
A4: It is used in vibration, position, and Keyphasor/speed monitoring of rotating machinery like turbines, pumps, and compressors.
Q5: Can this model be mixed with non-XL components?
A5: Yes, but the system performance will be limited to that of the non-XL components.
Q6: What is the tensile strength rating of this cable?
A6: The cable withstands up to 270 N (60 lbf) between the probe lead and cable connector.
Q7: Is a version with connector protectors available?
A7: Yes, versions with pre-installed connector protectors are available to enhance environmental sealing.
Q8: Is the cable suitable for use in hazardous areas?
A8: Yes, when installed with appropriate intrinsic safety barriers or isolators per ATEX and IECEx certifications.
