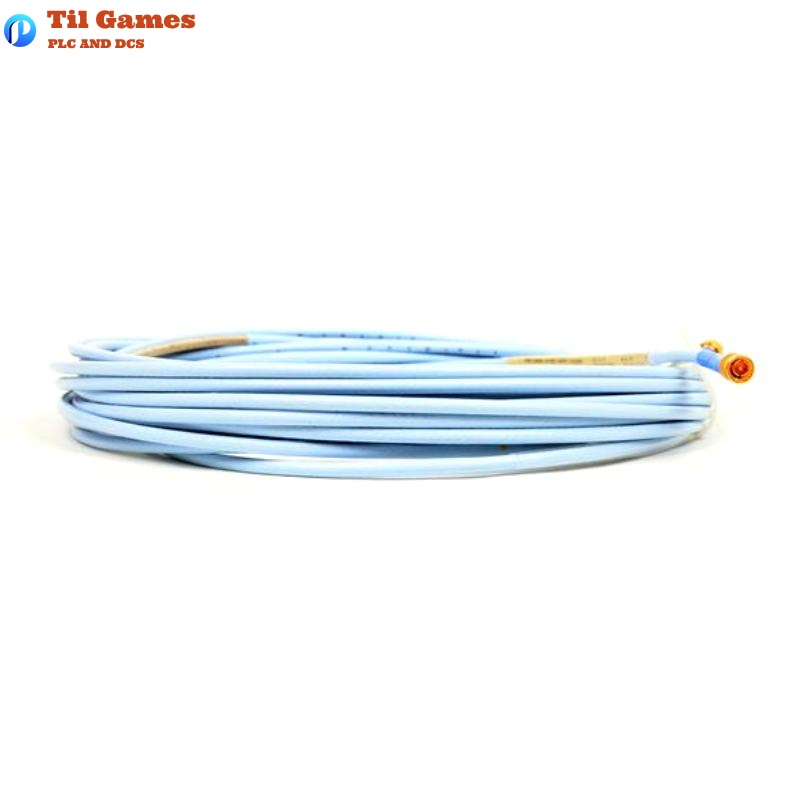

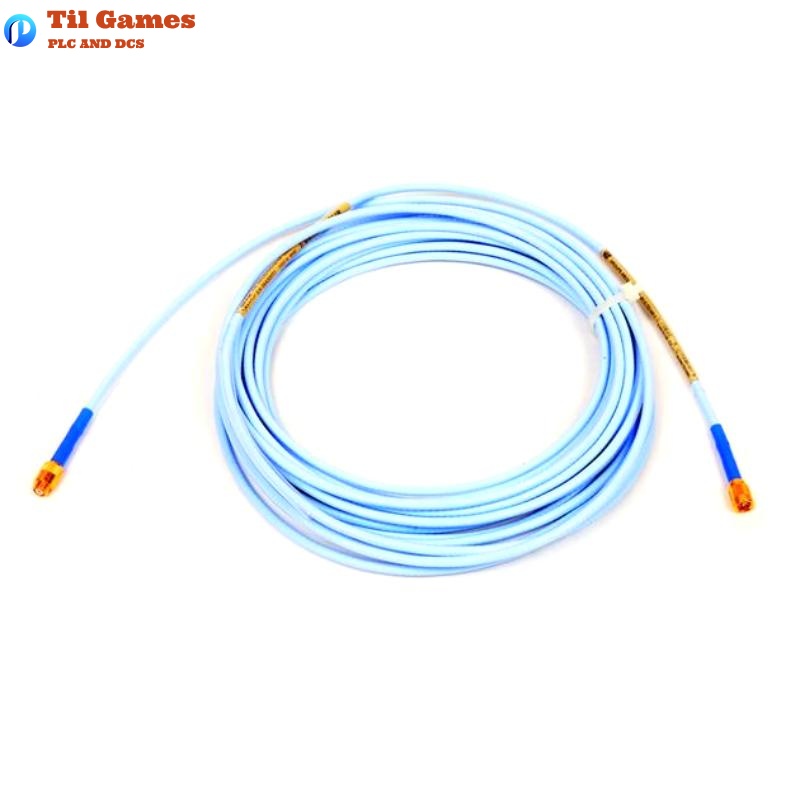

Bently Nevada 330130-080-10-00 3300 XL Standard Extension Cable

FAQ

Q1: Can the 330130-080-10-00 cable be used with older non-XL models?
A1: Yes, it is both electrically and mechanically compatible with non-XL 3300 series 5 mm and 8 mm components.

Q2: What applications is the 330130-080-10-00 cable designed for?
A2: It is used in vibration and position monitoring systems, including fluid-film bearing monitoring, Keyphasor reference, and speed measurements.

Q3: Is the cable suitable for high-temperature environments?
A3: The standard version supports up to 177°C. For higher temperatures up to 260°C, use the ETR (Extended Temperature Range) variant.

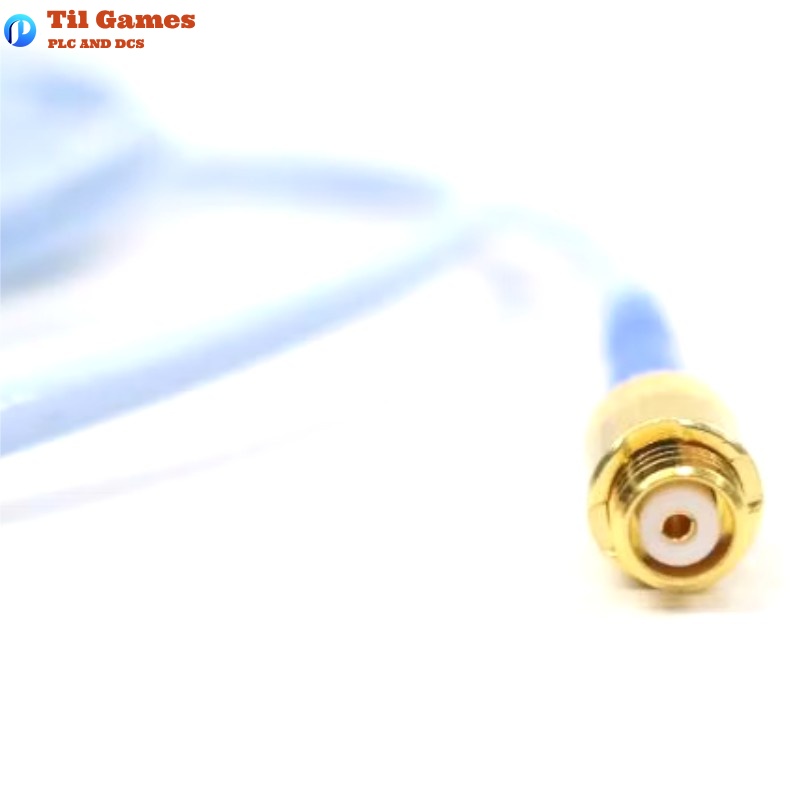

Q4: Are special tools required to install the connectors?
A4: No special tools are needed. The ClickLoc connectors are designed for finger-tight installation and produce a “click” sound when properly secured.

Q5: Does the cable offer fluid protection?
A5: Yes, with the FluidLoc option, it prevents oil and other fluids from wicking through the cable core.

Q6: Are connector protectors included?
A6: They are optional. Versions with protectors (e.g., option 02 or 03) are available, or protectors can be purchased separately.

Q7: What is the maximum system length supported?
A7: The sum of the cable and probe length must match the total system length (e.g., 8m cable + 1m probe for a 9m system).

Q8: Is the cable resistant to electromagnetic interference?
A8: Yes, it is CE-compliant and highly resistant to RFI/EMI, allowing installation in fiberglass enclosures without additional shielding.
