Technical Specifications
| Item | Specification |
|---|---|

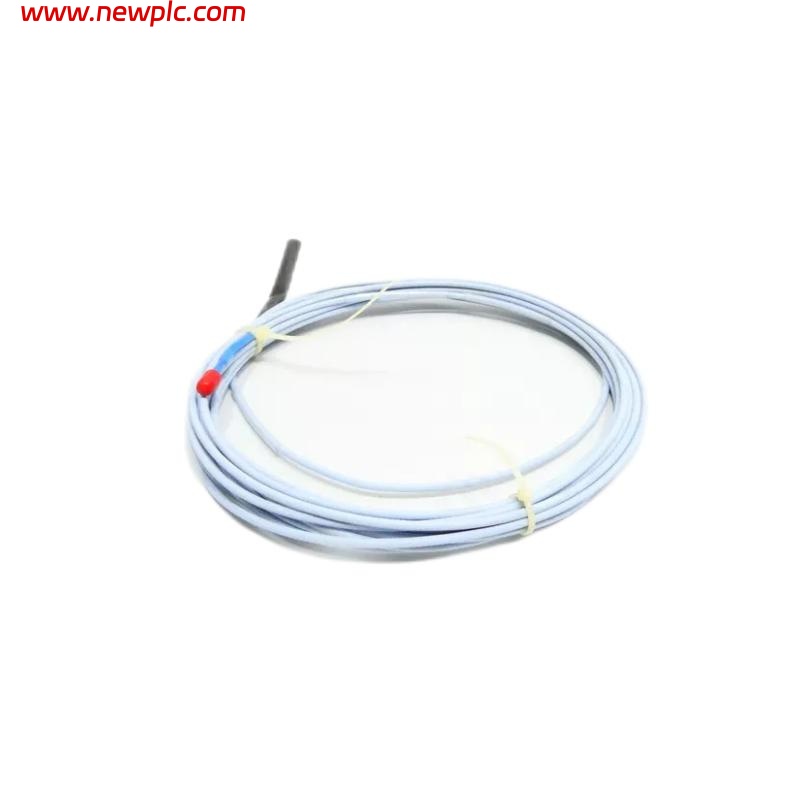

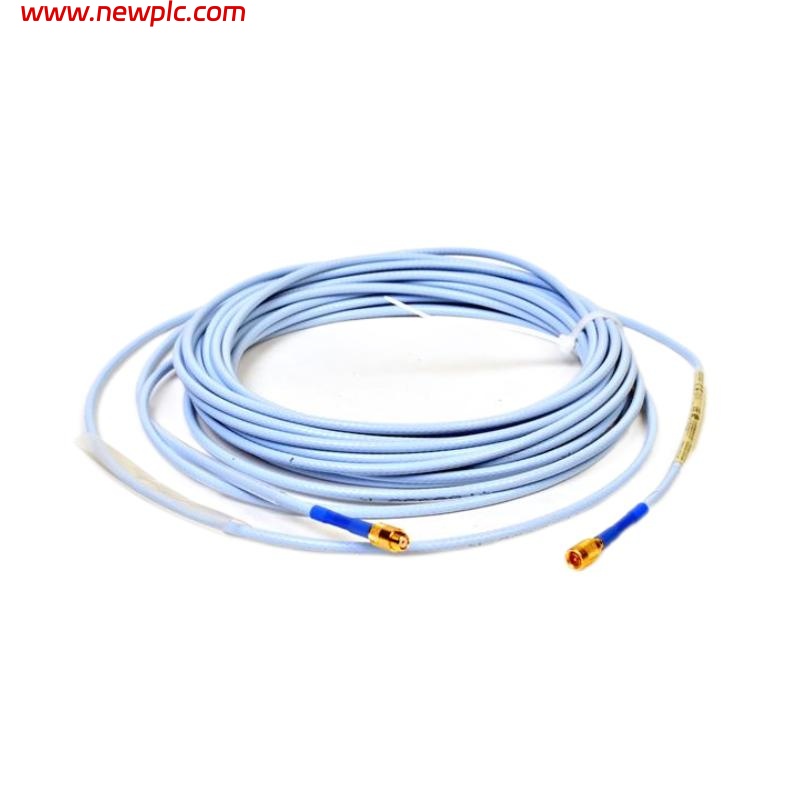

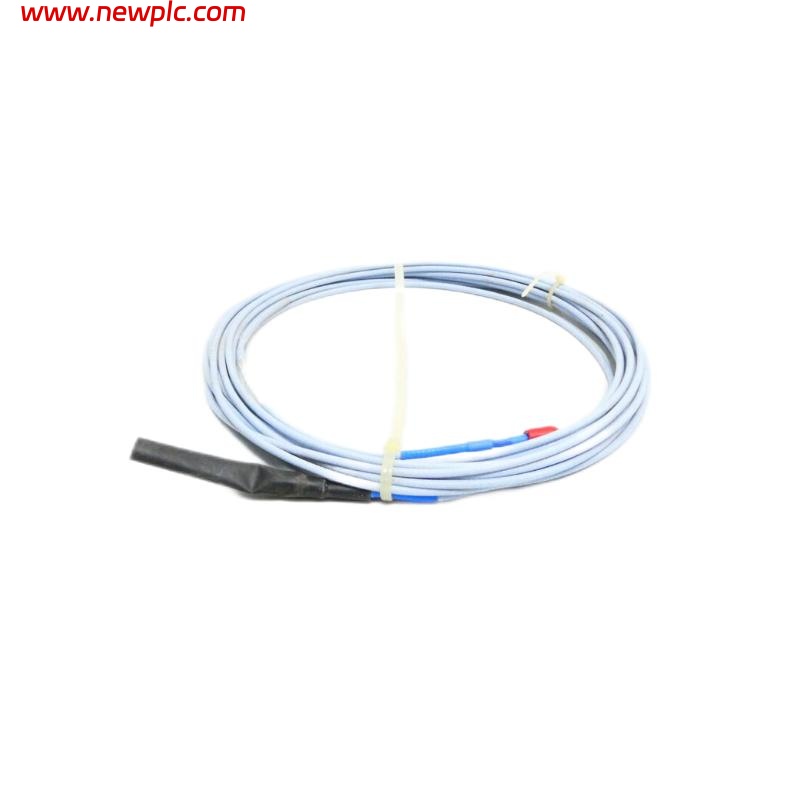

| Model | Bently Nevada 330130-085-10-RU Extension Cable |
| Product Type | 3300 XL Standard Extension Cable with locking hardware |
| Cable Length | 8.5 m (27.9 ft) |
| Cable Type | Standard cable with locking hardware (“10”) |
| Cable Material | 75 Ω triaxial, FEP-insulated |
| Capacitance | ~69.9 pF/m (21.3 pF/ft) typical |
| DC Resistance (Center Conductor) | Typical for 8.5 m standard cable |
| DC Resistance (Outer Conductor) | Typical for 8.5 m standard cable |
| Output Resistance | 50 Ω typical |
| Recommended Voltage | -17.5 Vdc to -26 Vdc (non-incendive system) |
| Operating Temperature | -40 °C to +85 °C industrial range |
| Field Wiring Support | 16–24 AWG shielded triad wiring |
| Application | Connects 3300 XL Proximitor sensors/probes to monitoring modules |
| Dimensions | Cable length 8.5 m; assembly size varies with installation |
| Weight | ~0.45 kg |
| Special Designation | “RU” denotes Russian regional specification or compliance |
FAQ
FAQ
Q1: What is the purpose of the 330130-085-10-RU extension cable?
A1: It extends the connection between a 3300 XL proximitor sensor or probe and the monitoring system, with locking hardware for improved connector security and Russian specification compliance.
Q2: What does “330130-085-10-RU” signify?
A2: “085” indicates an 8.5 m cable length, “10” denotes a standard cable with locking hardware, and “RU” denotes a Russian regional specification or compliance variant.
Q3: What type of cable construction does this model use?
A3: It uses a 75 Ω triaxial cable with FEP insulation and locking hardware to maintain signal quality and provide secure connector retention.
Q4: What electrical performance can be expected?
A4: The cable has typical capacitance of ~69.9 pF per meter and output resistance of 50 Ω, supporting reliable signal integrity for condition monitoring.
Q5: What voltage range does this cable support?
A5: It is designed to operate with a DC supply from approximately -17.5 Vdc to -26 Vdc in non-incendive industrial systems.
Q6: Why is the locking hardware feature beneficial?
A6: The locking hardware improves connector retention and mechanical security in installations subject to vibration, movement, or mechanical stress.
Q7: What installation considerations are there?
A7: The cable is 8.5 m long and weighs about ~0.45 kg, so routing, support, and secure mounting should be planned accordingly.
Q8: What environments can this cable operate in?
A8: It is suitable for industrial temperature ranges from about -40 °C to +85 °C and designed for typical machinery monitoring conditions with Russian regional compliance.
