Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Bently Nevada |

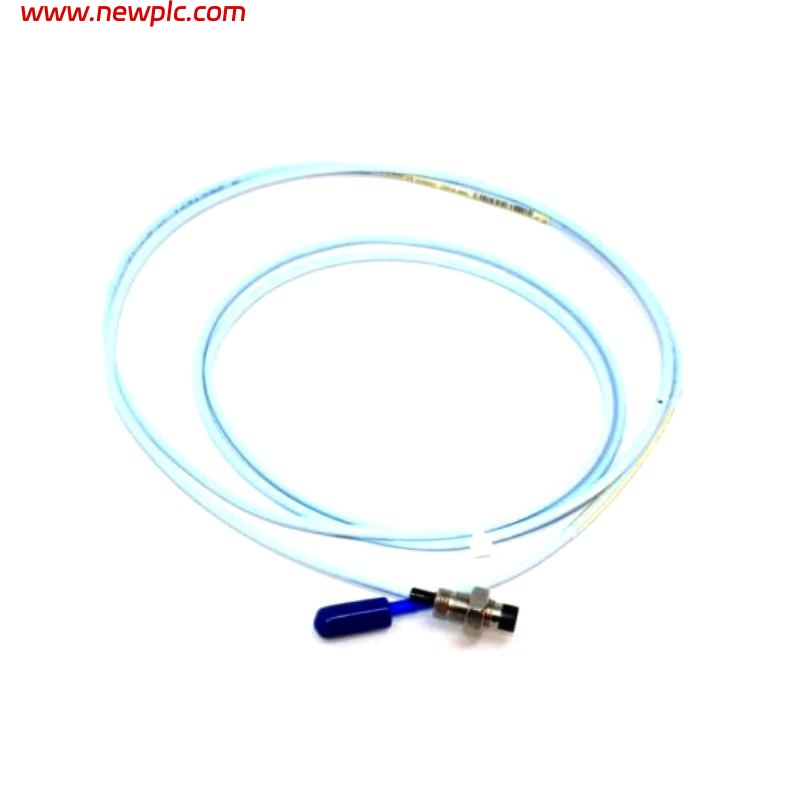

| Product | 330171‑00‑08‑10‑02‑05 5 mm Proximity Probe |
| Product Model | 330171‑00‑08‑10‑02‑05 |
| Product Type | 3300 Series Eddy‑Current Proximity Probe |
| Measurement Principle | Non‑contact displacement measurement using eddy‑current technology |
| Probe Tip Diameter | 5 mm |
| Thread Type | 1/4‑28 UNF |
| Case Length | 20 mm |
| Cable Length | 1.0 m |
| Connector Type | Miniature coaxial ClickLoc |
| Linear Sensing Range | 0.25 mm – 2.0 mm |
| Frequency Response | DC – 10 kHz |
| Operating Temperature | –35 °C to +177 °C |
| Housing Material | Stainless steel |
| Cable Jacket | FEP insulated, 75 Ω triaxial cable |
| Dimensions (Overall) | Length 20 mm (probe body) + 1.0 m cable; Tip diameter 5 mm |
| Weight | ~0.323 kg |
| Operating Environment | Industrial machinery condition monitoring |
| Compliance | Compatible with 3300 Proximitor and monitoring electronics |
FAQ
FAQ
Q1: What is the Bently Nevada 330171‑00‑08‑10‑02‑05 used for?
A1: It is a proximity probe for non‑contact measurement of shaft vibration and displacement in rotating machinery condition monitoring systems.
Q2: What size is the sensing tip on this probe?
A2: The sensing tip diameter is 5 mm.
Q3: What type of signal does this probe output?
A3: It outputs an analog voltage proportional to the gap when connected to a compatible proximitor or conditioning module.
Q4: How long is the integral cable on this probe?
A4: The cable length is 1.0 meter.
Q5: Can this probe operate in harsh environments?
A5: Yes, it operates over –35 °C to +177 °C industrial temperature range.
Q6: What connector type does this probe use?
A6: It uses a miniature coaxial ClickLoc connector.
Q7: What maintenance is required?
A7: Routine visual inspections and gap verification; no frequent calibration is typically needed.
Q8: What additional components are needed to make this a working measurement system?
A8: A compatible proximitor sensor or signal conditioning module, and, if required, extension cables to connect to the monitoring system.
