Technical Specifications
| Item | Specification |
|---|---|

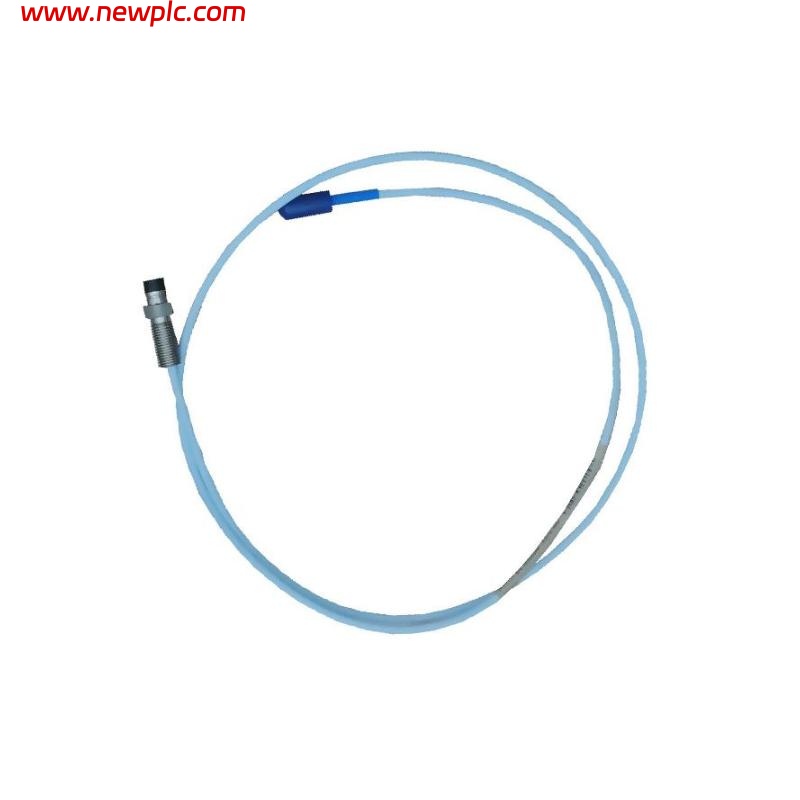

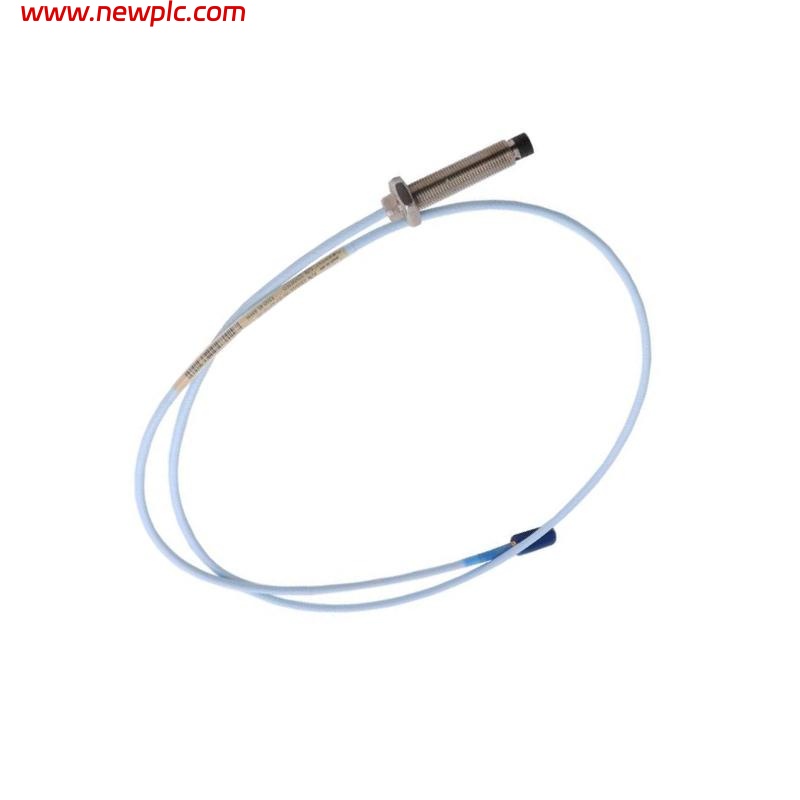

| Model | Bently Nevada 330171-12-41-10-02-05 |
| Type | 3300 Series 5 mm Eddy-Current Proximity Probe |
| Measurement Principle | Eddy current technology |
| Probe Tip Diameter | 5 mm |
| Thread Type | 1/4-28 UNF |
| Probe Body Length | 41 mm |
| Unthreaded Length | 12 mm |
| Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Sensitivity | Typical for 5 mm proximity probe systems |
| Frequency Response | Suitable for vibration and position monitoring of rotating machinery |
| Housing Material | Stainless steel |
| Mounting Method | Threaded installation |
| Operating Temperature Range | –35 °C to +177 °C |
| Application Environment | Industrial, oil-resistant, vibration-resistant |
| Matching Components | 3300 XL Proximitor Sensor and compatible extension cables |
| Applications | Shaft vibration, axial position, and displacement monitoring |
| Dimensions | Probe tip diameter 5 mm; probe body length 41 mm; unthreaded length 12 mm; cable length 1.0 m |
| Weight | Approximately 0.38 kg |
| Approvals | Multiple agency / hazardous area approvals (05 option) |
FAQ
FAQ
Q1: What is the main application of the 330171-12-41-10-02-05 proximity probe?
It is used to measure shaft vibration, axial position, and displacement in rotating machinery using eddy-current sensing technology.
Q2: What does the “330171” series represent?
It indicates a 3300 Series 5 mm eddy-current proximity probe designed for industrial condition monitoring systems.
Q3: What does the “12-41-10-02-05” configuration mean?
It specifies a 12 mm unthreaded length, a 41 mm probe body length, a 1.0 m integral cable, a ClickLoc connector, and hazardous area approvals.
Q4: Which monitoring systems are compatible with this probe?
The probe is compatible with Bently Nevada 3300 XL Proximitor Sensors and associated monitoring modules.
Q5: Is this probe suitable for harsh or regulated industrial environments?
Yes, the stainless-steel housing and multiple agency approvals make it suitable for harsh locations and hazardous area installations.
Q6: What type of output does this probe provide?
It provides an analog voltage output proportional to the measured shaft displacement or vibration.
Q7: What is the operating temperature range of this probe?
The probe operates reliably from –35 °C to +177 °C.
Q8: What are the physical dimensions and weight of the probe?
The probe has a 5 mm tip diameter, a 41 mm body length, a 12 mm unthreaded section, a 1.0 m cable, and weighs approximately 0.38 kg.
