Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model / Part Number | 330171‑XX‑XX‑10‑02‑05 (e.g., 330171‑00‑12‑10‑02‑05 configuration) |
| Product Series | 3300 XL proximity probes |

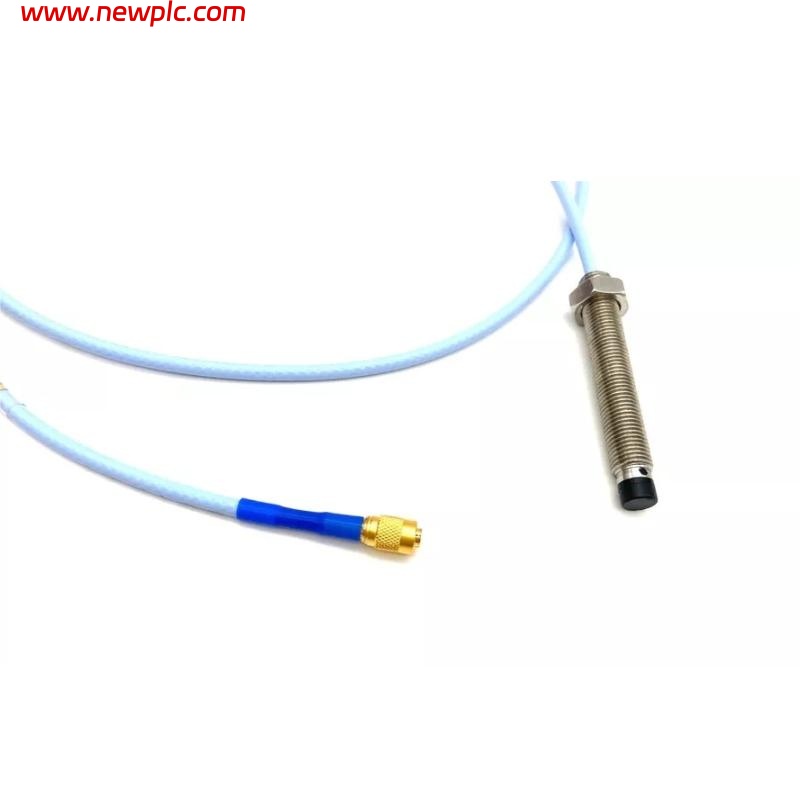

| Product Type | 5 mm Proximity Probe (eddy‑current, non‑contact) |
| Probe Tip Diameter | 5 mm |
| Mounting Thread | 1/4‑28 UNF |
| Overall Case Length | 12 in (≈ 304.8 mm) — for typical “12” case option |
| Unthreaded Length | 0 in (0 mm) — common for “00” option |
| Cable Length | 1.0 m (3.3 ft) — “10” option |
| Connector Type | Miniature coaxial ClickLoc |
| Linear Measurement Range | Typical ~0.25 mm to ~2.0 mm |
| Operating Temperature | −40 °C to +120 °C (probe typical) |
| Housing Material | Stainless steel |
| Environmental Rating | Sealed for industrial environments |
| Dimensions | Overall length ≈ 304.8 mm (probe body); cable length 1000 mm; probe diameter ≈ 5 mm |
| Net Weight | 0.323 kg (probe unit only) |
| Typical Application | Vibration and shaft position monitoring in rotating machinery |
FAQ
FAQ
Q1: What is this Bently Nevada 330171‑XX‑XX‑10‑02‑05 probe used for?
It measures shaft vibration and relative position without physical contact in industrial rotating equipment monitoring systems.
Q2: What do the suffix codes like “12‑10‑02‑05” indicate?
They specify overall case length (12 in), cable length (1.0 m), connector type (ClickLoc), and approval options.
Q3: What type of measurement technology does this probe use?
It uses eddy‑current sensing to detect changes in displacement between the probe tip and the monitored target.
Q4: What are the physical dimensions of this probe?
The probe body is approximately 304.8 mm long (not including cable), with a 5 mm diameter tip and 1 m cable attached.
Q5: What is the net weight of this probe unit?
The net weight of the probe assembly (without packaging) is 0.323 kg.
Q6: What operating temperature range is supported?
This probe is suitable for typical industrial temperature ranges — generally −40 °C to +120 °C.
Q7: What systems is this probe designed to work with?
It is compatible with Bently Nevada 3300 XL Proximitor sensors and associated extension cables as part of a complete transducer measurement system.
Q8: What materials are used in the probe construction?
The probe features a stainless‑steel housing for durability in industrial conditions.
