Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Bently Nevada |

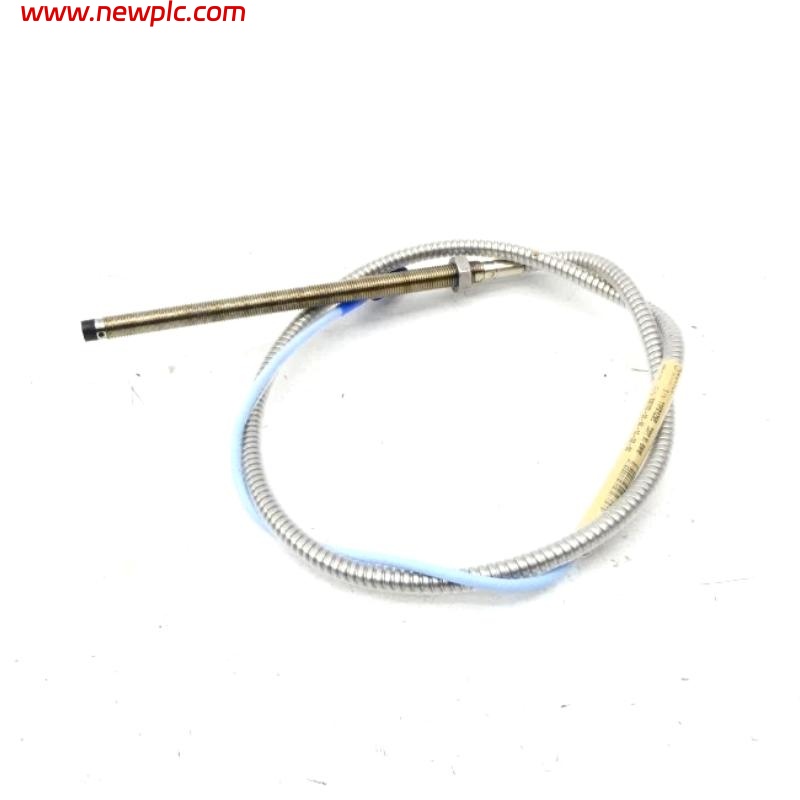

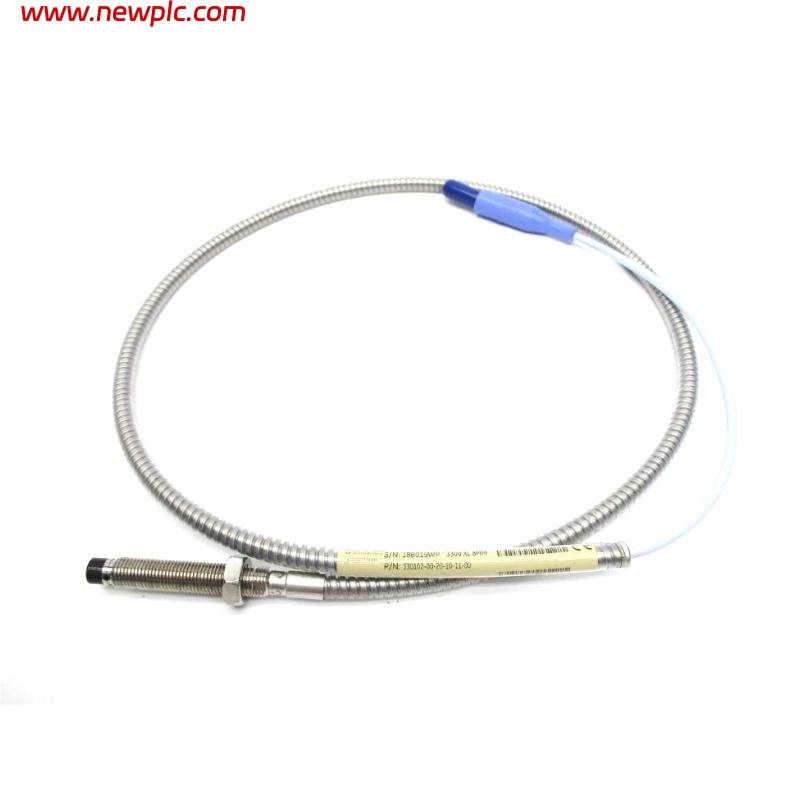

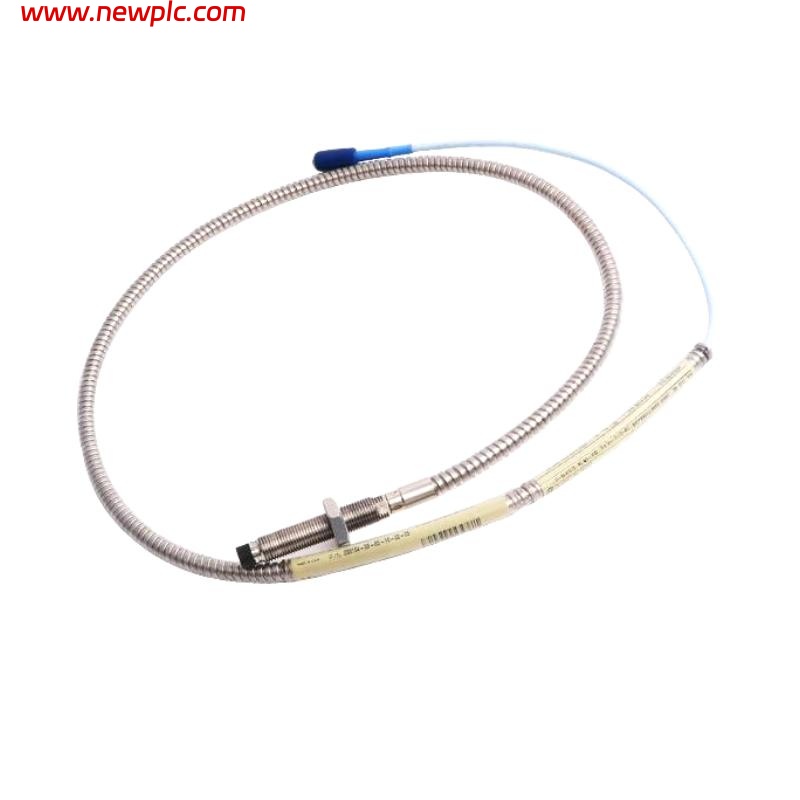

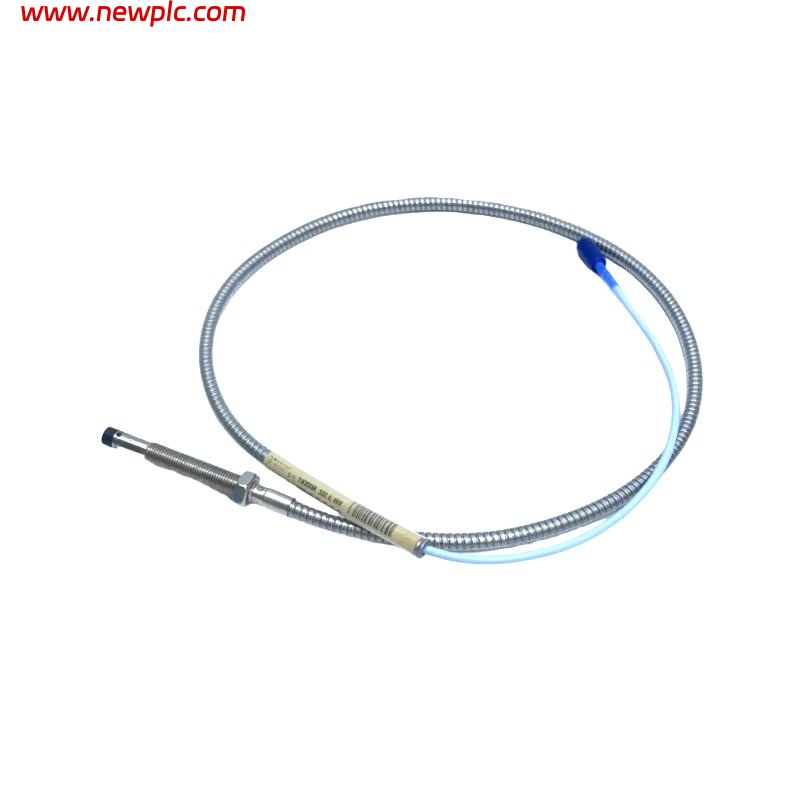

| Product | Bently Nevada 330171‑00‑12‑10‑02‑05 (5 mm 3300 Series Proximity Probe – similar family / closest available model reference) |
| Product Model | 330172‑00‑08‑10‑02‑05 |
| Product Type | 3300 Series Eddy‑Current Proximity Probe |
| Measurement Principle | Non‑contact eddy‑current displacement and vibration sensing (standard 3300 probe performance) |
| Probe Tip Diameter | 5 mm (typical for “330172‑00‑08” 5 mm 3300 series models) |
| Thread Type | 1/4‑28 UNF standard mounting |
| Rigid Body Length | ~8 mm (code “08” indicates the rigid probe body portion) |
| Cable Length | 1.0 m (code “10”) |
| Connector Type | ClickLoc miniature coaxial (code “02”) |
| Agency/Approval Code | “05” industry approvals (general industrial / non‑hazard options) |
| Linear Sensing Range | Approximately 0.25 mm to 2.0 mm typical for this series |
| Output Signal | Raw analog voltage proportional to gap/displacement (requires conditioning electronics) |
| Frequency Response | DC to ~10 kHz (standard 3300 series) |
| Operating Temperature Range | –40 °C to +85 °C typical industrial range |
| Housing Material | Stainless steel body for rugged, industrial use |
| Cable Jacket | Shielded, FEP‑insulated coaxial cable |
| Dimensions (Overall) | Probe body rigid ~8 mm + 1.0 m cable; tip diameter 5 mm |
| Weight | ~0.3 kg (probe assembly typical) |
| Operating Environment | Designed for industrial machinery vibration/position monitoring |
| Compliance | Compatible with 3300 XL system proximitor/signal conditioning electronics |
FAQ
FAQ
Q1: What is the Bently Nevada 330172‑00‑08‑10‑02‑05 used for?
A1: It is a 5 mm 3300 Series eddy‑current proximity probe used for non‑contact measurement of shaft vibration and displacement on rotating machinery.
Q2: What does each segment of the model number mean (e.g., “08”, “10”, “02”, “05”)?
A2: “08” indicates an ~8 mm rigid probe body length, “10” indicates a 1.0 m integral cable, “02” designates the ClickLoc miniature coaxial connector, and “05” refers to standard industrial approvals/configuration.
Q3: What is the sensing range of this probe?
A3: The typical linear sensing range is about 0.25 mm to 2.0 mm from the target surface, depending on system configuration.
Q4: What type of signal does this probe output?
A4: It outputs an analog voltage proportional to the target gap; the raw signal must be conditioned by a proximitor sensor or monitoring electronics to be used.
Q5: What environments can this probe handle?
A5: The probe is built for industrial conditions, typically rated from about –40 °C up to +85 °C.
Q6: Do I need additional components to use this probe?
A6: Yes—it must be connected to a compatible proximitor sensor or conditioning module and (if needed) extension cables to interface with your monitoring system.
Q7: What connector type is used on the cable?
A7: This probe uses a ClickLoc miniature coaxial connector, which provides secure, reliable field connection to extension cables or sensor modules.
Q8: What is the typical application of this proximity probe?
A8: It is commonly used on turbines, compressors, pumps, motors, and other rotating equipment for real‑time vibration and shaft position monitoring as part of machine health and protection systems.
