Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Bently Nevada |
| Product | **Bently Nevada 330171‑00‑20‑10‑02‑00 (Reference Family: 3300 5 mm Proximity Probes) adapted for model 330172-00-20-10-02-05 |
| Product Model | 330172-00-20-10-02-05 |
| Product Type | 3300 Series Eddy-Current Proximity Probe |
| Measurement Principle | Non-contact displacement and vibration measurement using eddy-current sensing |
| Probe Tip Diameter | 5 mm (standard) |
| Thread Type | 1/4-28 UNF mounting thread |
| Unthreaded Length | 0 in (code “00”) |
| Overall Case Length | 2.0 in (≈ 51 mm) (code “20”) |
| Cable Length | 1.0 m (3.3 ft) (code “10”) |
| Connector Type | Miniature coaxial ClickLoc™ connector (code “02”) |
| Agency Approval | Multiple industrial approvals (code “05”) |
| Linear Sensing Range | Approximately 0.25 mm – 2.0 mm typical for 5 mm 3300 probes |
| Output Signal | Analog voltage proportional to gap/displacement (requires proximitor/conditioning electronics) |
| Frequency Response | DC to up to ~10 kHz typical for 3300 series probes |
| Operating Temperature Range | –35 °C to +177 °C typical industrial range |
| Housing Material | Stainless steel probe body (rugged industrial construction) |
| Cable Jacket | Shielded, FEP-insulated coaxial cable |
| Dimensions | Probe body ~51 mm length × 5 mm diameter; 1.0 m cable (total) |
| Weight | ~0.25 kg typical (probe body with cable) |
| Operating Environment | Industrial machinery condition monitoring systems |
| Compliance | Compatible with 3300 XL proximitor and monitoring electronics (system level API 670 when configured) |
FAQ
FAQ

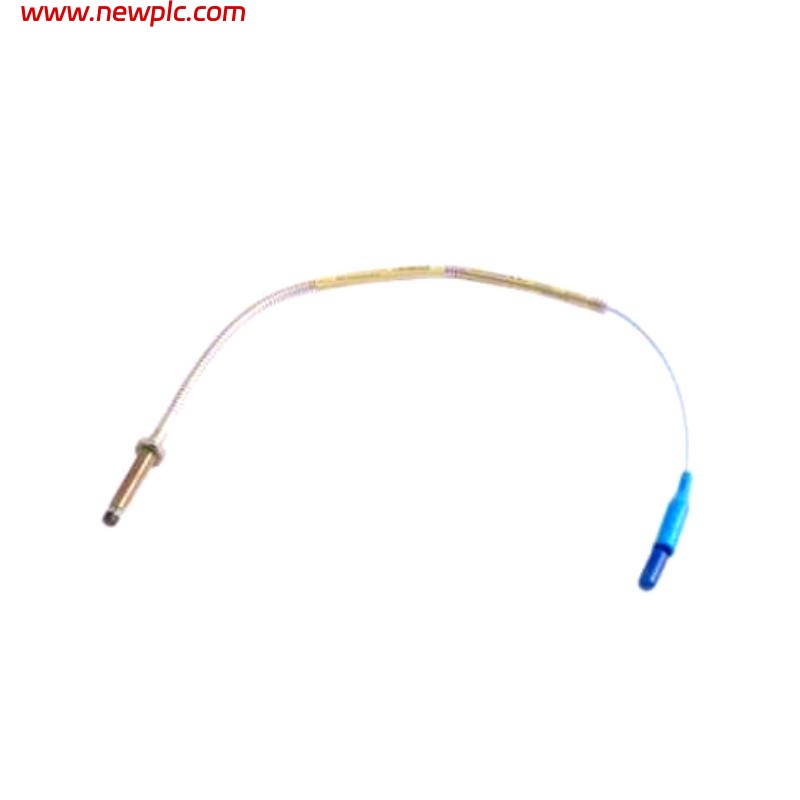

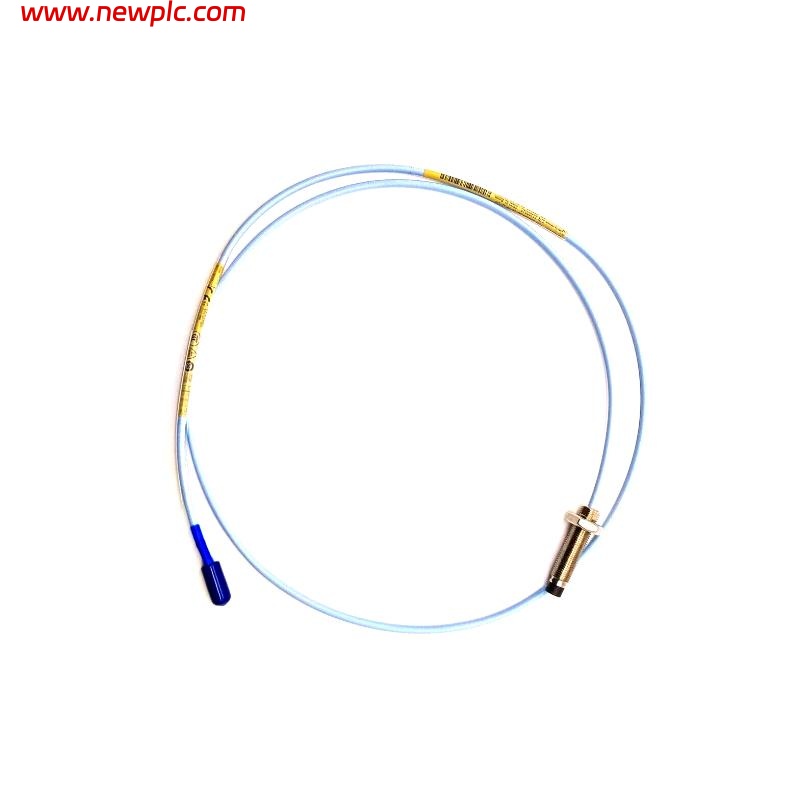

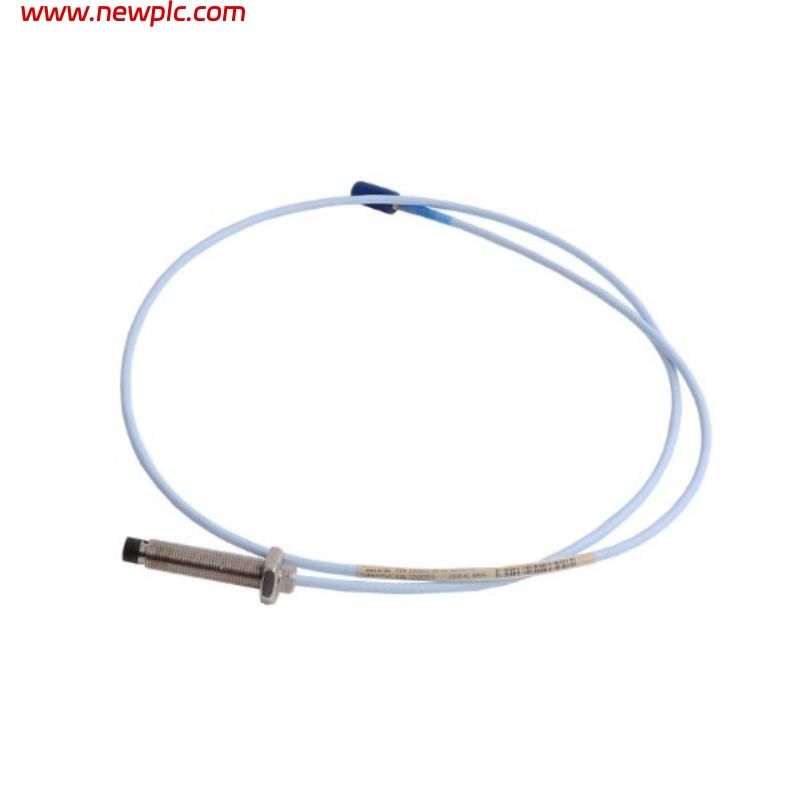

Q1: What is the Bently Nevada 330172-00-20-10-02-05?
A1: It is a 5 mm eddy-current proximity probe used for non-contact measurement of shaft displacement and vibration in rotating machinery condition monitoring systems.
Q2: What do the model code segments mean (e.g., “20”, “10”, “02”, “05”)?
A2: “20” indicates a rigid body length of ~2.0 in (~51 mm); “10” designates a 1.0 m integral cable; “02” identifies the miniature coaxial ClickLoc connector; “05” denotes the standard industrial approvals.
Q3: What system does this probe integrate with?
A3: It is designed to work with Bently Nevada 3300 proximitor sensors and extension cables for complete vibration and shaft position monitoring.
Q4: What is the sensing range of this probe?
A4: It typically provides a linear sensing range from around 0.25 mm to 2.0 mm (10–80 mils), depending on system and gap settings.
Q5: What type of signal does this probe output?
A5: The probe outputs a raw analog voltage proportional to the gap/displacement, which must be conditioned by a proximitor or monitoring electronics.
Q6: What environments can this probe operate in?
A6: With its stainless steel body and industrial cable, it is suitable for harsh industrial environments and wide temperature variations.
Q7: How is the probe physically mounted?
A7: The probe is threaded into a housing or mounting block using its 1/4-28 UNF threaded section for stable installation.
Q8: What additional components are needed to use this probe?
A8: To form a complete measurement system, you need a compatible proximitor sensor and, if required, extension cables and condition monitoring electronics.
