Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Bently Nevada |
| Product Model | 330172-00-28-10-02-00 |

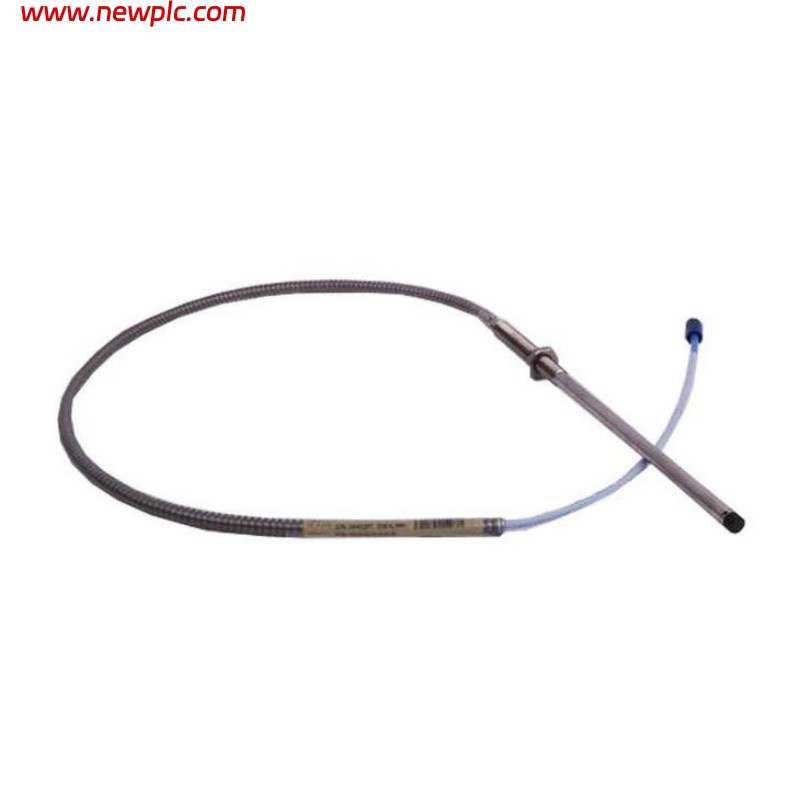

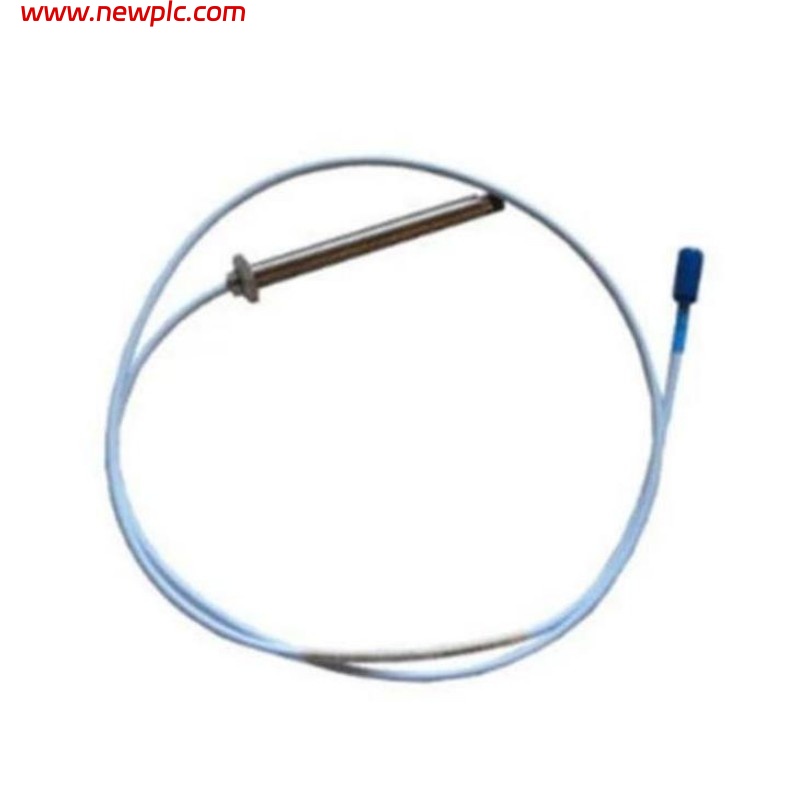

| Product Type | 3300 Series 5 mm Eddy-Current Proximity Probe |
| Measurement Principle | Non-contact displacement and vibration sensing using eddy-current technology |
| Probe Tip Diameter | 5 mm (standard 3300 5 mm proximity probe) |
| Thread Type | 1/4-28 UNF standard threaded mount (typical for 5 mm probes) |
| Rigid Body Length | ~28 mm overall case length (code “28”) |
| Cable Length | 1.0 m (code “10”) |
| Connector Type | Miniature coaxial ClickLoc™ connector (code “02”) |
| Agency Approvals | None (code “00”) |
| Linear Sensing Range | ~0.25 mm – 2.3 mm typical (industry standard range for 3300 5 mm probes) |
| Recommended Gap | ~1.27 mm for best linear output |
| Sensitivity | ~7.87 V/mm (200 mV/mil) typical |
| Frequency Response | DC to ~10 kHz typical with appropriate field wiring |
| Operating Temperature Range | –35 °C to +177 °C typical industrial range |
| Housing Material | Stainless steel probe body |
| Cable Jacket | Shielded FEP-insulated cable, braided shielding (industry standard) |
| Dimensions | Probe body rigid section ~28 mm × diameter 5 mm; cable length ~1.0 m |
| Weight | ~0.25–0.32 kg typical for 3300 5 mm proximity probes |
| Operating Environment | Industrial machinery condition monitoring systems |
| Compliance | Compatible with 3300 XL proximitor and monitoring electronics systems |
FAQ
FAQ
Q1: What is the Bently Nevada 330172-00-28-10-02-00 used for?
A1: It is a 5 mm eddy-current proximity probe designed to measure shaft vibration and displacement without physical contact, used in industrial machine condition monitoring systems.
Q2: What does the “28” in the model number signify?
A2: “28” refers to the overall rigid body length of the probe, approximately 28 mm.
Q3: How long is the cable on this probe?
A3: The integral cable is approximately 1.0 meter long, as indicated by the “10” code segment.
Q4: What type of connector does this probe use?
A4: It uses a miniature coaxial ClickLoc™ connector (“02”), which provides a reliable connection to extension cables or proximitor inputs.
Q5: What is the typical sensing range of this probe?
A5: It typically measures linearly from about 0.25 mm up to around 2.3 mm from the target surface, depending on gap settings.
Q6: What environments can this probe operate in?
A6: It is built for industrial environments and can operate across a wide temperature range from about –35 °C to +177 °C.
Q7: What kind of signal output does this probe provide?
A7: The probe produces an analog voltage proportional to the gap between the tip and the target; this raw signal is conditioned by a proximitor or monitoring electronics.
Q8: Do I need additional components to use this probe?
A8: Yes — it must be connected to a compatible proximitor sensor and, if necessary, extension cable and monitoring hardware to condition and interpret the signal.
