Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Bently Nevada |

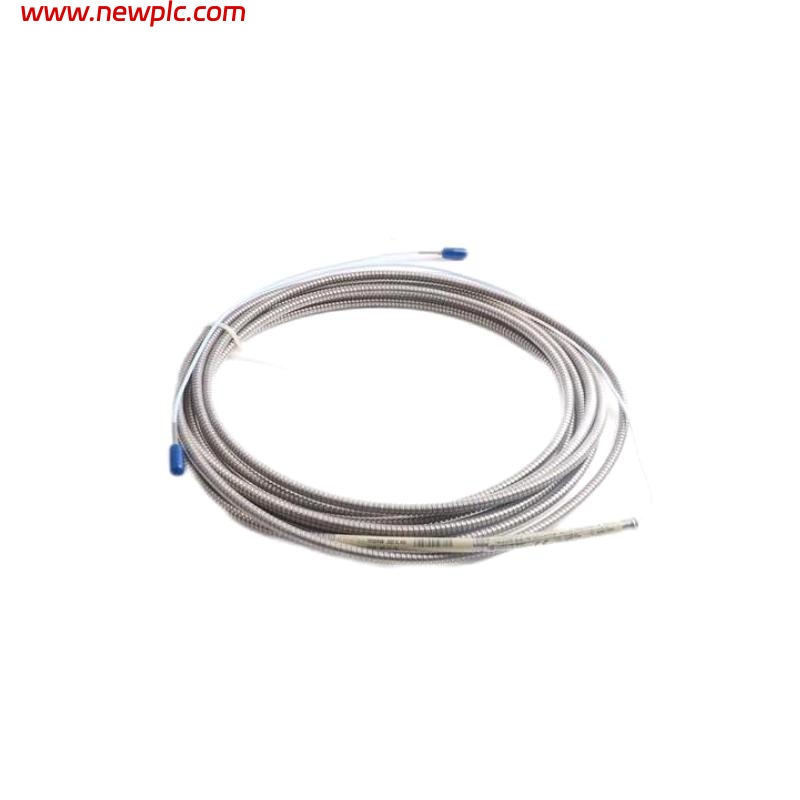

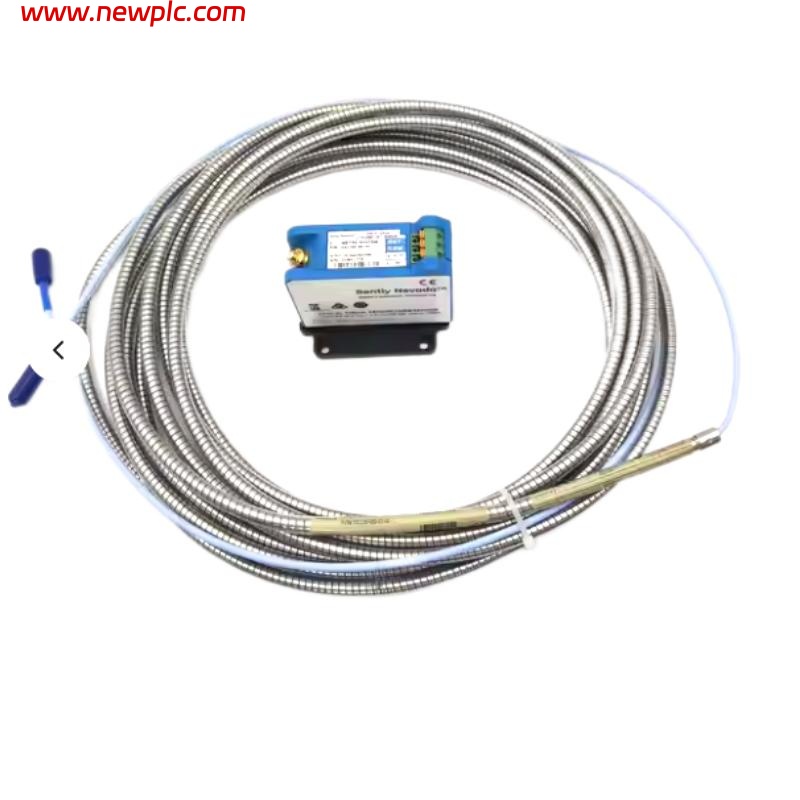

| Product | **Bently Nevada 330173‑00‑02‑20‑02‑05 Proximity Probe |
| Product Model | 330173-00-02-20-02-05 |
| Product Type | 3300 Series 5 mm Eddy-Current Proximity Probe |
| Measurement Principle | Non-contact displacement and vibration measurement using eddy-current technology |
| Thread Size | M8 × 1 threaded mount |
| Unthreaded Length | 0 mm |
| Overall Case Length | 20 mm |
| Cable Length | 2.0 m (±20 %) total cable length |
| Connector Type | Miniature coaxial ClickLoc™ connector, gold-plated brass |
| Linear Range | 0.25–2.3 mm typical (10–90 mils) |
| Recommended Gap | ~1.27 mm (50 mils) |
| Sensitivity | ~7.87 V/mm (200 mV/mil) ±6.5 % typical |
| Frequency Response | 0–10 kHz (+0/-3 dB) with typical field wiring |
| Operating Temperature Range | –40 °C to +177 °C typical industrial range |
| Housing Material | AISI 303/304 stainless steel body |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Cable Jacket | 75 Ω coaxial with FEP insulation |
| DC Resistance (2 m cable) | ~7.73 Ω |
| Minimum Target Size | 15.2 mm diameter flat target |
| Minimum Shaft Diameter | ≥50.8 mm (recommended ≥76.2 mm) |
| Weight | ~0.323 kg |
| Dimensions (Overall) | Probe body ~20 mm × Ø5 mm; cable 2.0 m |
| Operating Environment | Industrial rotating machinery condition monitoring systems |
| Compliance | Designed for 3300 series proximitor and monitoring systems |
FAQ
FAQ
Q1: What is the Bently Nevada 330173-00-02-20-02-05 used for?
A1: It is a 3300 Series 5 mm eddy-current proximity probe for non-contact measurement of shaft vibration and displacement in industrial condition monitoring systems.
Q2: What does the “20” in the model number indicate?
A2: It refers to the overall rigid probe body length of approximately 20 mm.
Q3: How long is the cable supplied with this probe?
A3: The integral cable length is approximately 2.0 meters (±20 %).
Q4: What type of connector does this probe use?
A4: It uses a miniature coaxial ClickLoc™ connector, typically gold-plated brass for reliable connection.
Q5: What is the linear sensing range of this probe?
A5: It typically measures from about 0.25 mm to 2.3 mm, with the most linear range around ~1.27 mm gap.
Q6: What environmental conditions is it built for?
A6: The probe is designed for industrial machinery environments and can operate from –40 °C up to around +177 °C.
Q7: What materials are used in the construction?
A7: The probe body uses corrosion-resistant stainless steel (AISI 303/304), and the sensing tip uses PPS material.
Q8: What additional components are needed to use this probe?
A8: To form a complete measurement system, you need a compatible proximitor conditioning sensor and monitoring electronics to condition the raw signal and analyze the data.
