Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Bently Nevada |

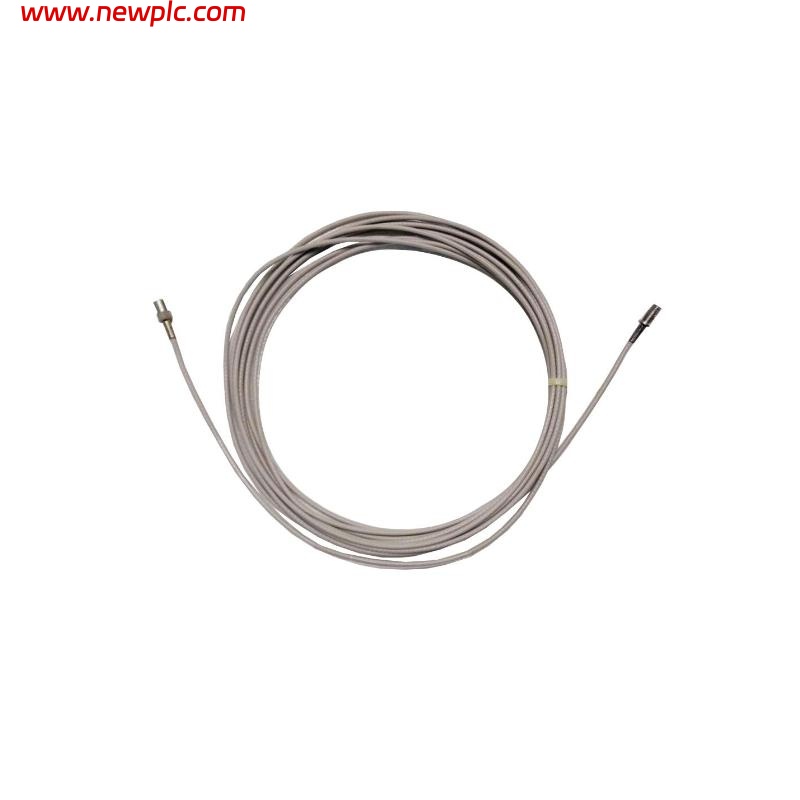

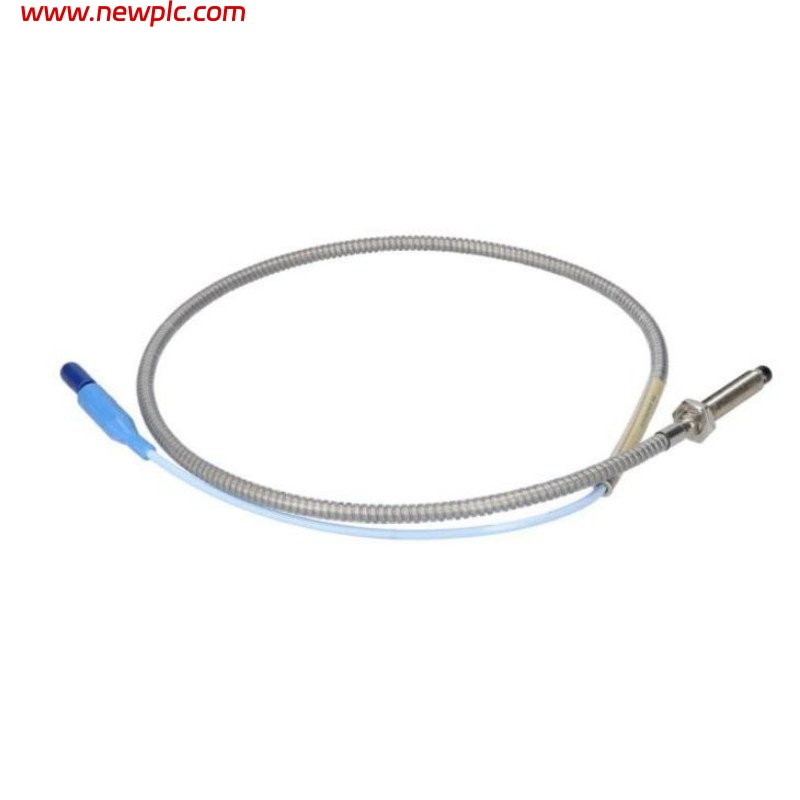

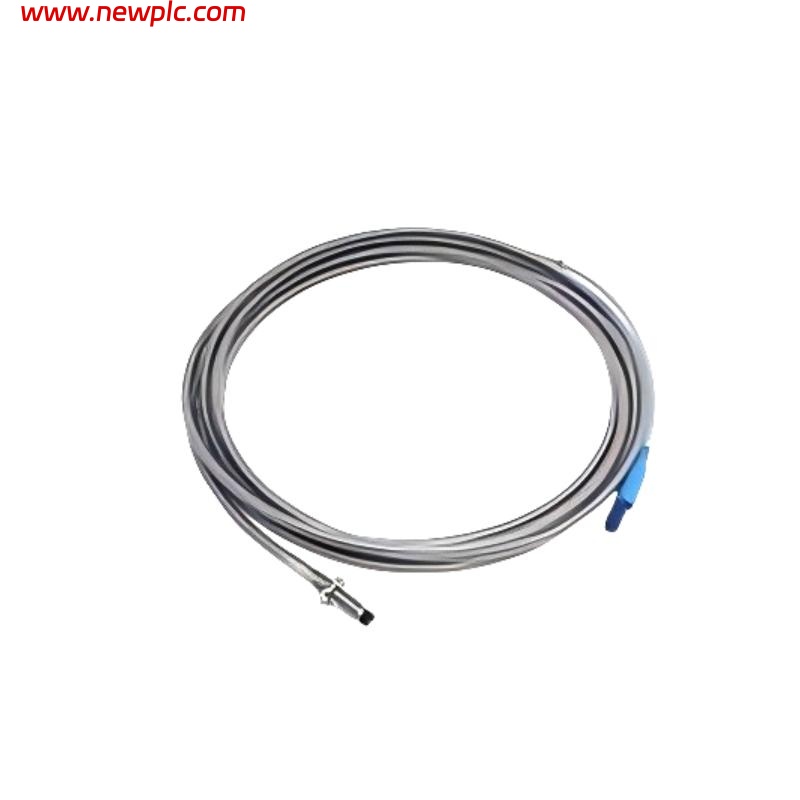

| Product | 330173-00-05-10-02-00 5 mm Proximity Probe |
| Product Model | 330173-00-05-10-12-00 |
| Product Type | 3300 Series Eddy-Current Proximity Probe |
| Measurement Principle | Non-contact eddy-current displacement and vibration sensing (3300 series) |
| Probe Tip Diameter | 5 mm standard 3300 probe |
| Thread Size | M8 × 1 threaded mount |
| Unthreaded Length | 0 mm (no unthreaded section) |
| Overall Case Length | 50 mm (code “05”) |
| Cable Length | 1.0 m (code “10”) |
| Connector Type | Miniature coaxial ClickLoc™ (code “12”) |
| Agency Approval | None (code “00”) |
| Linear Sensing Range | ~0.25 mm to ~2.0 mm typical (standard 5 mm 3300 probes) |
| Output Signal | Analog voltage proportional to gap/displacement (signal conditioning required) |
| Frequency Response | DC to ~10 kHz (typical 3300 series performance) |
| Operating Temperature Range | –40 °C to +177 °C (industrial range) |
| Housing Material | Stainless steel probe body |
| Cable Jacket | FEP-insulated, shielded coaxial cable |
| Dimensions (Overall) | Probe body ~50 mm × 5 mm; integral cable 1.0 m |
| Weight | ~0.32 kg (probe with cable) |
| Operating Environment | Industrial rotating machinery condition monitoring |
| Compliance | Designed for use with 3300 proximitor and monitoring electronics |
FAQ
FAQ
Q1: What is the Bently Nevada 330173-00-05-10-12-00 used for?
A1: It is a 3300 Series 5 mm eddy-current proximity probe used for precise, non-contact measurement of shaft vibration and displacement in industrial machinery monitoring systems.
Q2: What does the “05” in the model number mean?
A2: “05” designates the overall rigid probe body length option of approximately 50 mm.
Q3: How long is the cable on this probe?
A3: The integral cable length is approximately 1.0 meter (code “10”), providing flexibility in connecting to proximitor or monitoring electronics.
Q4: What type of connector does this probe use?
A4: It uses a miniature coaxial ClickLoc™ connector (code “12”), which offers secure and reliable field connections.
Q5: What sensing range can this probe measure?
A5: The typical linear sensing range for a 5 mm 3300 series probe is roughly 0.25 mm to 2.0 mm from the target surface, depending on system gap settings.
Q6: What environments can this probe withstand?
A6: It is designed for industrial environments and can operate over a wide temperature range from about –40 °C up to +177 °C with rugged construction.
Q7: What signal output does this probe provide?
A7: The probe produces an analog voltage proportional to the target gap. This raw output must be conditioned by a proximitor or monitoring electronics.
Q8: What additional components are needed to use this probe?
A8: To form a complete measurement system, you need a compatible proximitor conditioning sensor and, if necessary, extension cables and monitoring electronics to condition, process, and analyze the probe signal.
