Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Bently Nevada |

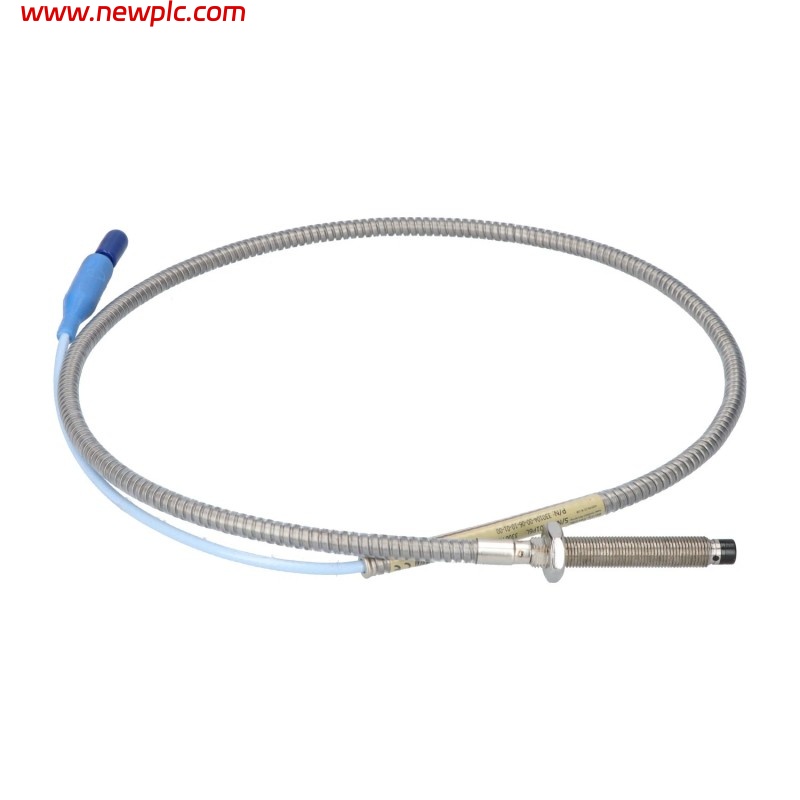

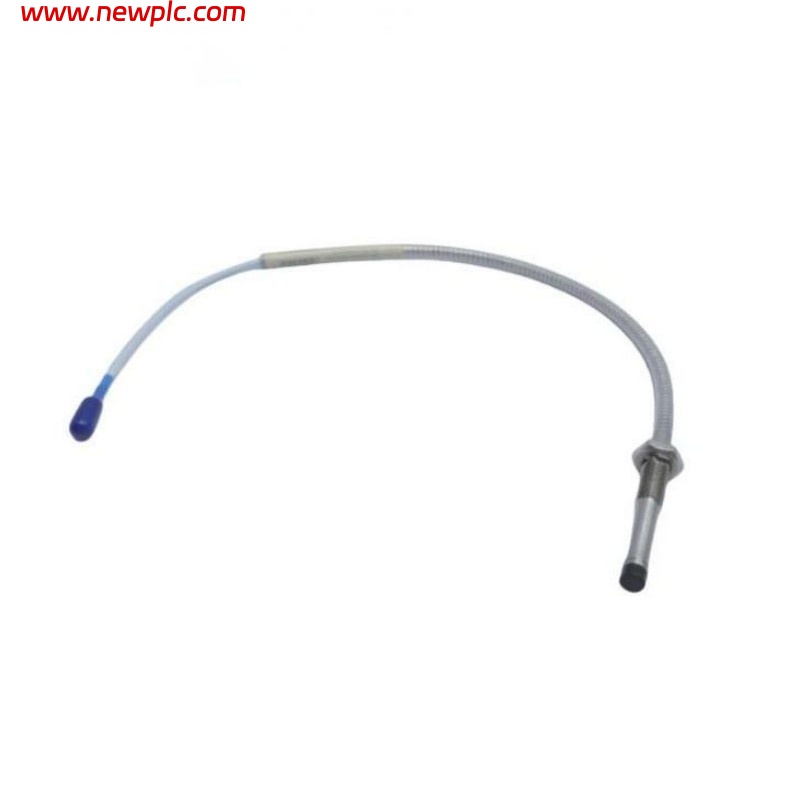

| Product | 330173-00-04-08-10-02-00 3300 Series 5 mm Proximity Probe |
| Product Model | 330173-00-04-08-10-02-00 |
| Product Type | 3300 Series Eddy-Current Proximity Probe |
| Measurement Principle | Non-contact eddy-current displacement and vibration sensing in rotating machinery |
| Probe Tip Diameter | 5 mm standard 3300 Series probe |
| Thread Size | M8 × 1 threaded mount |
| Unthreaded Length | Code “04” = ~40 mm |
| Overall Case Length | Code “08” = ~80 mm |
| Cable Length | Code “10” = 1.0 m (3.3 ft) |
| Connector Type | Code “02” = Miniature coaxial ClickLoc™ connector with standard cable |
| Agency Approval | Code “00” = No special agency approval |
| Linear Sensing Range | ~0.25 mm – ~2.0 mm typical for 3300 5 mm probes (system dependent) |
| Output Signal | Raw analog voltage proportional to displacement (requires conditioning electronics) |
| Frequency Response | DC to ~10 kHz typical for 3300 Series probes |
| Operating Temperature Range | Approximately –40 °C to +177 °C industrial range (typical for 3300 probes) |
| Housing Material | Stainless steel probe body (rugged industrial design) |
| Cable Jacket | FEP-insulated, shielded coaxial cable |
| Dimensions | Probe body ~80 mm × 5 mm diameter; cable length ~1.0 m |
| Weight | ~0.33 kg (probe with cable) |
| Operating Environment | Industrial rotating machinery condition monitoring systems |
| Compliance | Designed to work with 3300 proximitor and monitoring electronics (API 670 system level) |
FAQ
FAQ
Q1: What is the Bently Nevada 330173-00-04-08-10-02-00 used for?
A1: It is a proximity probe used for non-contact measurement of shaft vibration and displacement on rotating industrial machinery as part of a condition monitoring system.
Q2: What does each segment of the model number mean?
A2: “04” indicates an ~40 mm unthreaded section before the rigid body; “08” denotes the rigid body length (~80 mm); “10” means a 1.0 m cable; “02” is the ClickLoc miniature coaxial connector; “00” means no special agency approval.
Q3: What sensing range does this probe support?
A3: Typical linear sensing range is roughly 0.25 mm up to about 2.0 mm from the target surface, depending on gap and system configuration.
Q4: What type of signal does this probe output?
A4: It outputs a raw analog voltage proportional to the gap/displacement; this signal must be conditioned by a proximitor sensor or monitoring electronics.
Q5: Can this probe operate in harsh industrial environments?
A5: Yes, it is built with a robust stainless steel body and shielded cable, and typically rated to operate over a wide temperature range common in industrial applications.
Q6: How long is the integral cable?
A6: The probe includes an integral cable approximately 1.0 meter (3.3 ft) long for connection flexibility.
Q7: What connector does this probe use?
A7: It uses a ClickLoc miniature coaxial connector, which provides a reliable and repeatable electrical connection to extension cables or proximitor inputs.
Q8: What additional components are needed to use this probe?
A8: To form a complete condition monitoring loop, a compatible proximitor conditioning sensor and monitoring electronics are required to condition and analyze the raw output signal.
